UNIMIG

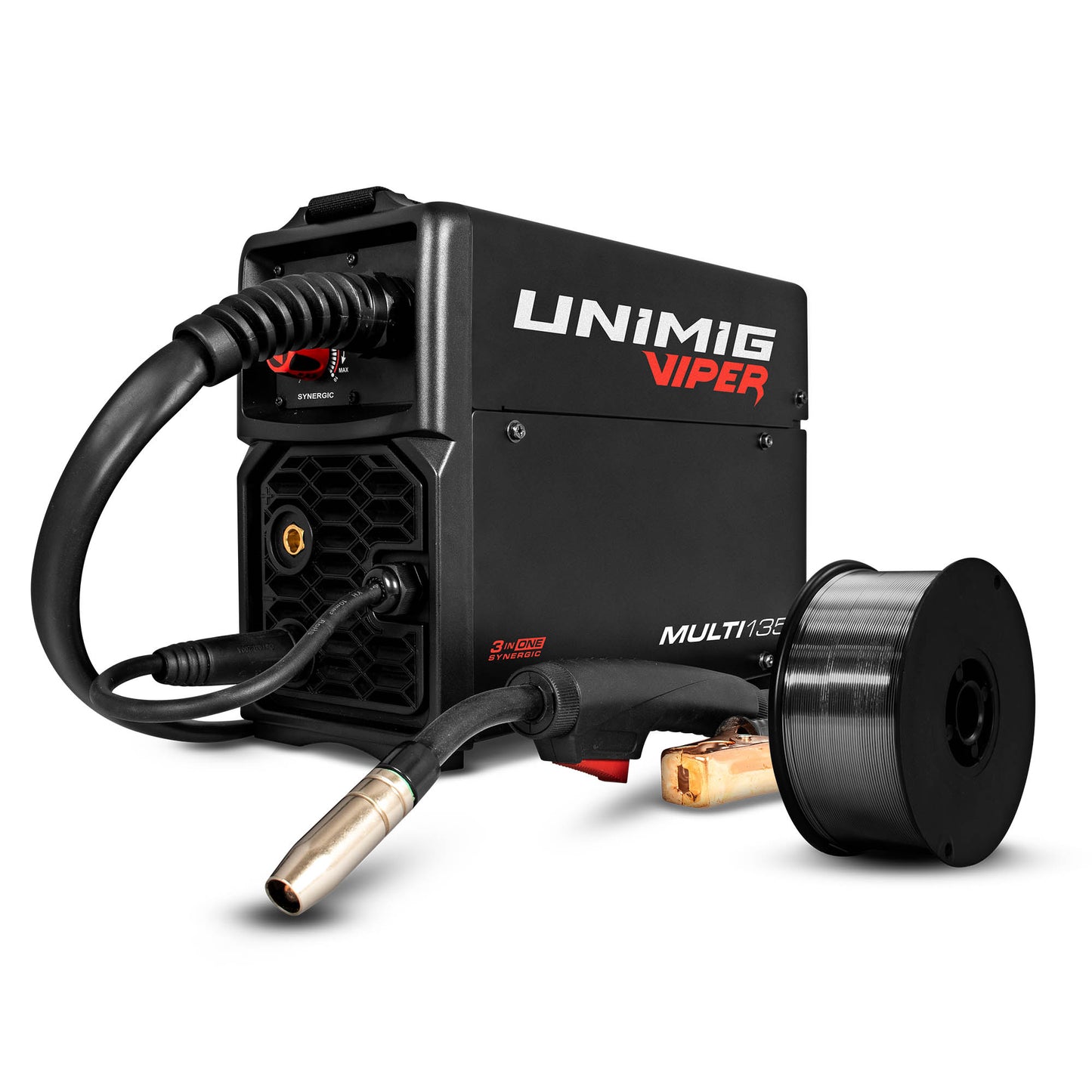

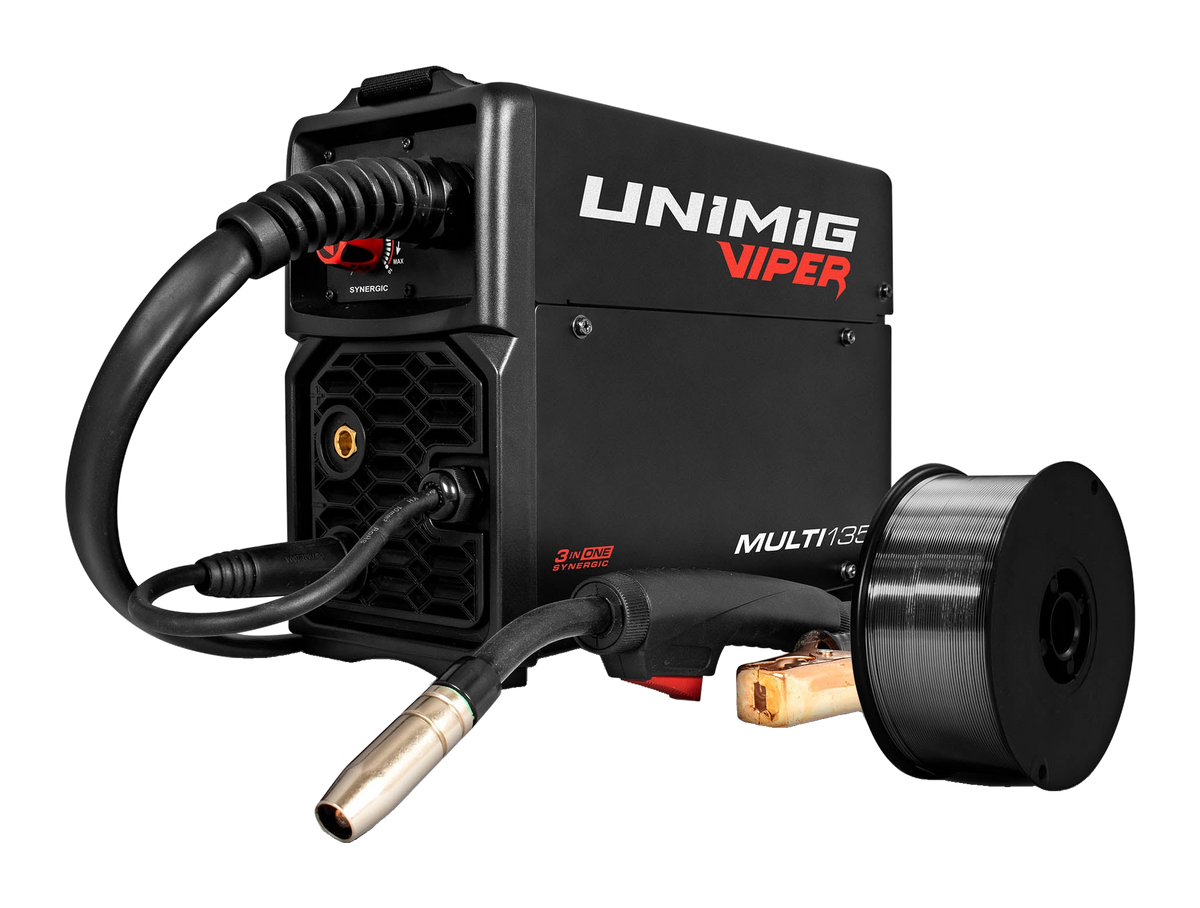

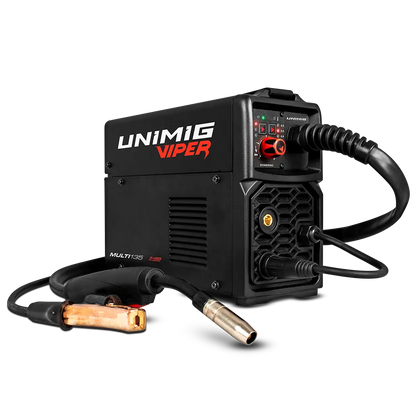

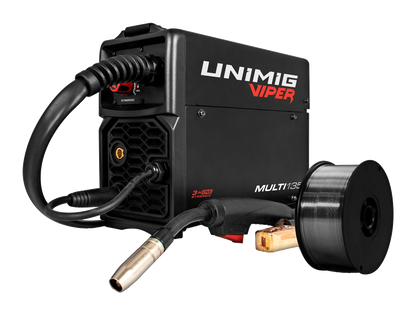

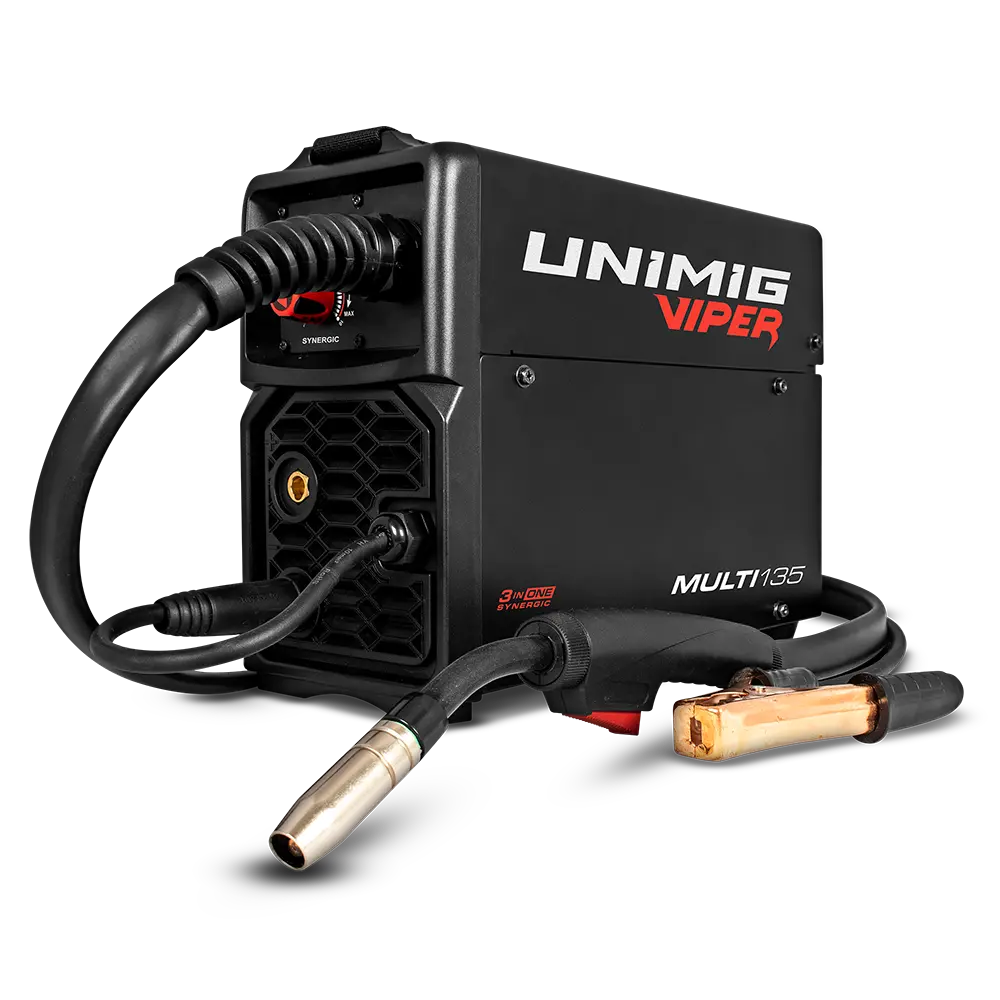

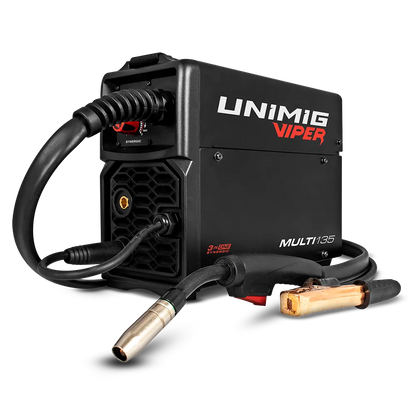

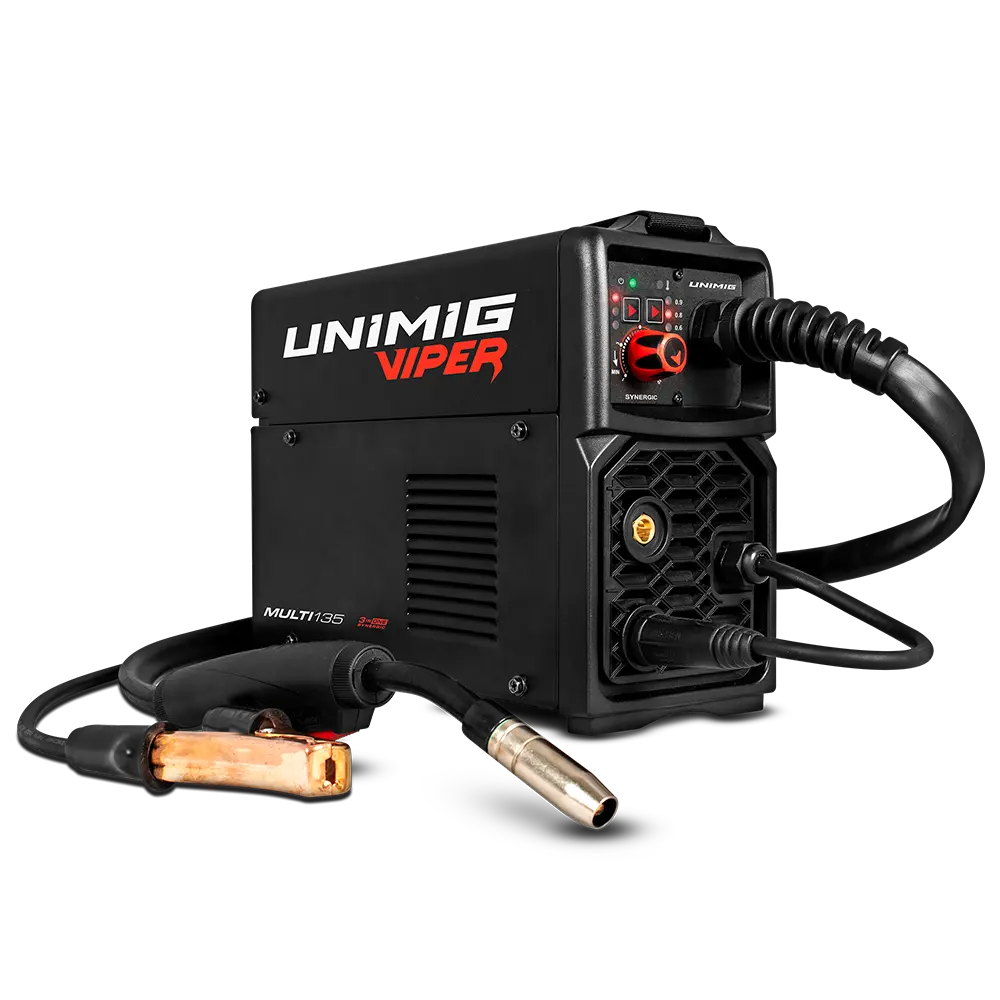

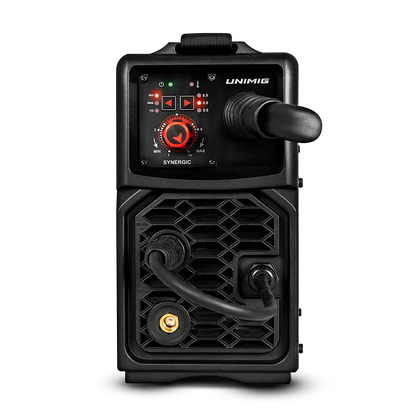

VIPER MULTI 135 MIG/TIG/STICK Welder
VIPER MULTI 135 MIG/TIG/STICK Welder
GST included. Shipping calculated at checkout.
SKU: U11005K
Available to order
Delivery options
Select your suburb for a delivery estimate. Additional courier options are available at checkout.
Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.
Buy with confidence
Delivery & pickupAvailable to order · Lead time varies
Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.
Australia-wide delivery. Available shipping options and costs are shown at checkout.
Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.
90-day returnsEligible unused, unopened items
Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.
You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.
Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.
Warranty & support2-year warranty on this welder
The VIPER MULTI 135 is listed with a 2-year warranty. Coverage is subject to the applicable warranty terms.
For a fault or incorrect item, contact our team with your order details and a description of the issue.
Need help choosing?
Call our Smithfield team for product advice and compatibility checks.
Take a closer look
Product information
Details
The ultimate DIY multi-process welder, the VIPER MULTI 135 is perfect for those weekend projects.

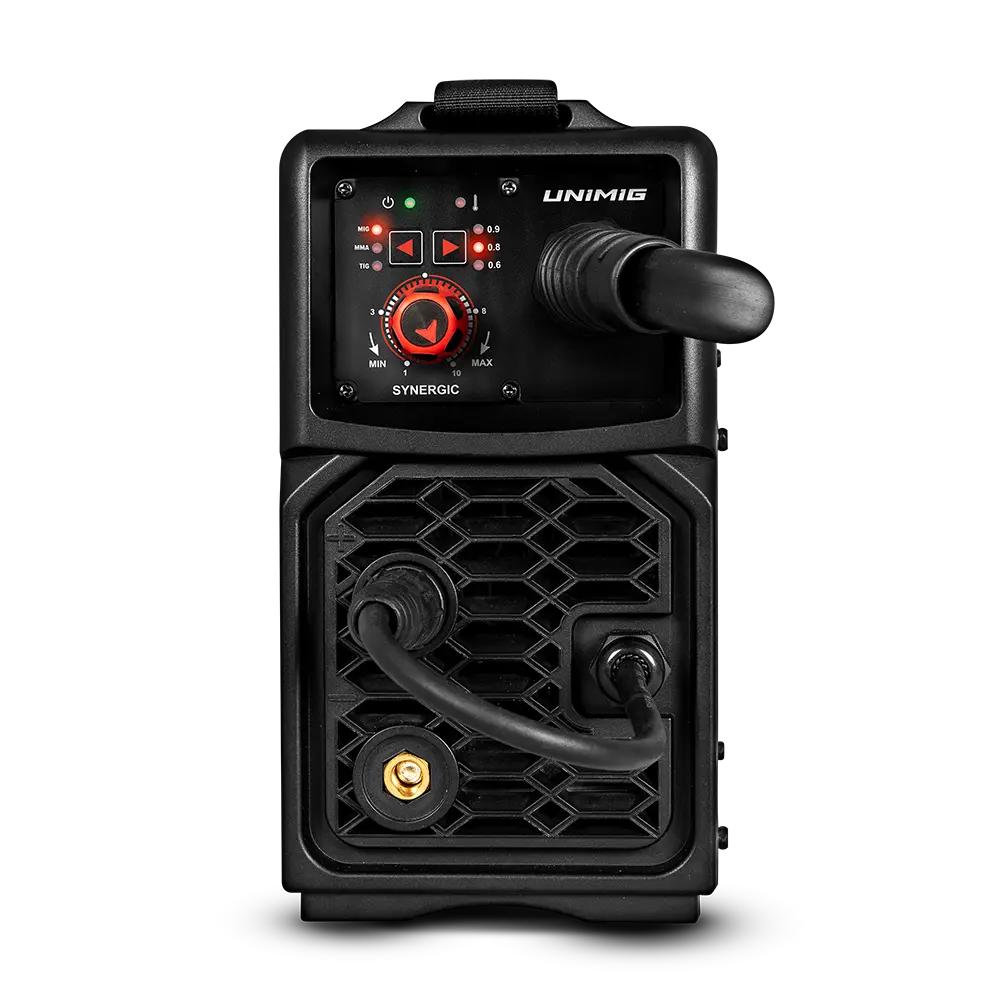

- Synergic MIG controls for quick and easy weld setups
- 3-in-1 multi-process machine so you can MIG, TIG & STICK
- 10 amp plug, so you can use it with any domestic outlet
| MACHINE SPECIFICATIONS |
| Primary input voltage | 240 V, single-phase |
| Supply plug | 10 A |
| Rated input power (kVA) | 4.15 |
| Ieff (A) | 8.4 |
| Rated Output | 40/16 V-135 A/21 V |
| Open circuit voltage (V) | 68 |
| Protection class | IP21S |
| Insulation class | H |
| Power factor | 0.68 |
| Minimum generator (kVA) | 8.0 |
| Dinse Connector | 10/25 |
| Standard | AS/NZ60974-1 |
| Suitable materials | Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper |
| Warranty (years) | 2 |
|
MIG SPECIFICATIONS
|
| MIG welding current range | 40–135 A |
| MIG duty cycle at 40°C | 15% at 135 A, 60% at 65 A, 100% at 50 A |
| MIG wire size range | 0.6–0.9 mm |
| MIG wire spool size | 1kg (D100) |
| MIG welding thickness range | 1–6 mm |
|
TIG SPECIFICATIONS
|
| TIG ignition type | DC Lift arc |
| TIG welding current range | 20–120 A |
| TIG duty cycle at 40°C | 15% at 120 A, 60% at 60 A, 100% at 45 A |
| TIG welding thickness range | 1–6 mm |
|
STICK SPECIFICATIONS
|
| Stick welding current range | 20–120 A |
| Stick duty cycle at 40°C | 15% at 120 A, 60% at 60 A, 100% at 45 A |
| Stick electrode range | 2.5–3.2 mm |
| Stick welding thickness range | 1–6 mm |
|
SIZE AND WEIGHT
|
| Dimensions (mm) | 355 × 132 × 250 |
| Weight (kg) | 5.2 |
|
MACHINE FEATURES
|
| Wire Drive | Standard |
| VRD | Yes |
| Thermal Overload Protection | Over Temperature Warning |
Package Contents:
- VIPER MULTI 135 MIG/TIG/STICK Welder
- 2m Direct Connect MIG Torch
- 2m Earth Clamp & Lead
- Electrode Holder
- 2m Gas Hose Complete with fittings
- 1kg E71T-GS 0.8mm Gasless Wire
- Operating Manual
