Product information
Details

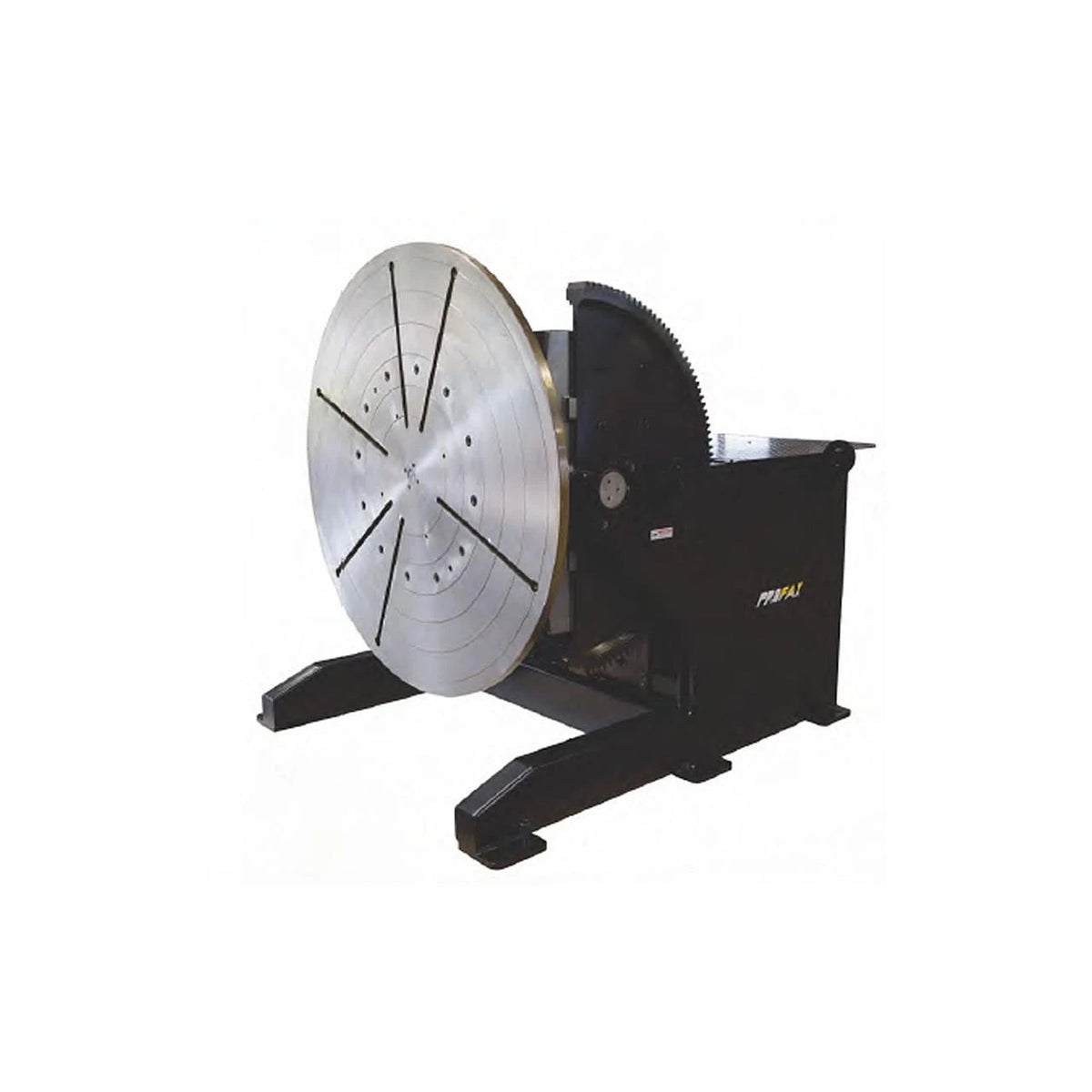

PROFAX Powered-Tilt Welding Positioner is intended for rotating and positioning heavy workpieces during welding. Powered tilt changes the workpiece angle, while the slow variable-speed rotation range supports controlled movement through the weld. The supplied hand-control pendant allows operation away from the positioner.
Key Features
- Powered rotation: Rotates the secured workpiece during welding.
- High-frequency protection: The positioner incorporates high-frequency protection for welding use.
- Powered tilt and rotation: Powered table tilt and variable-speed rotation.

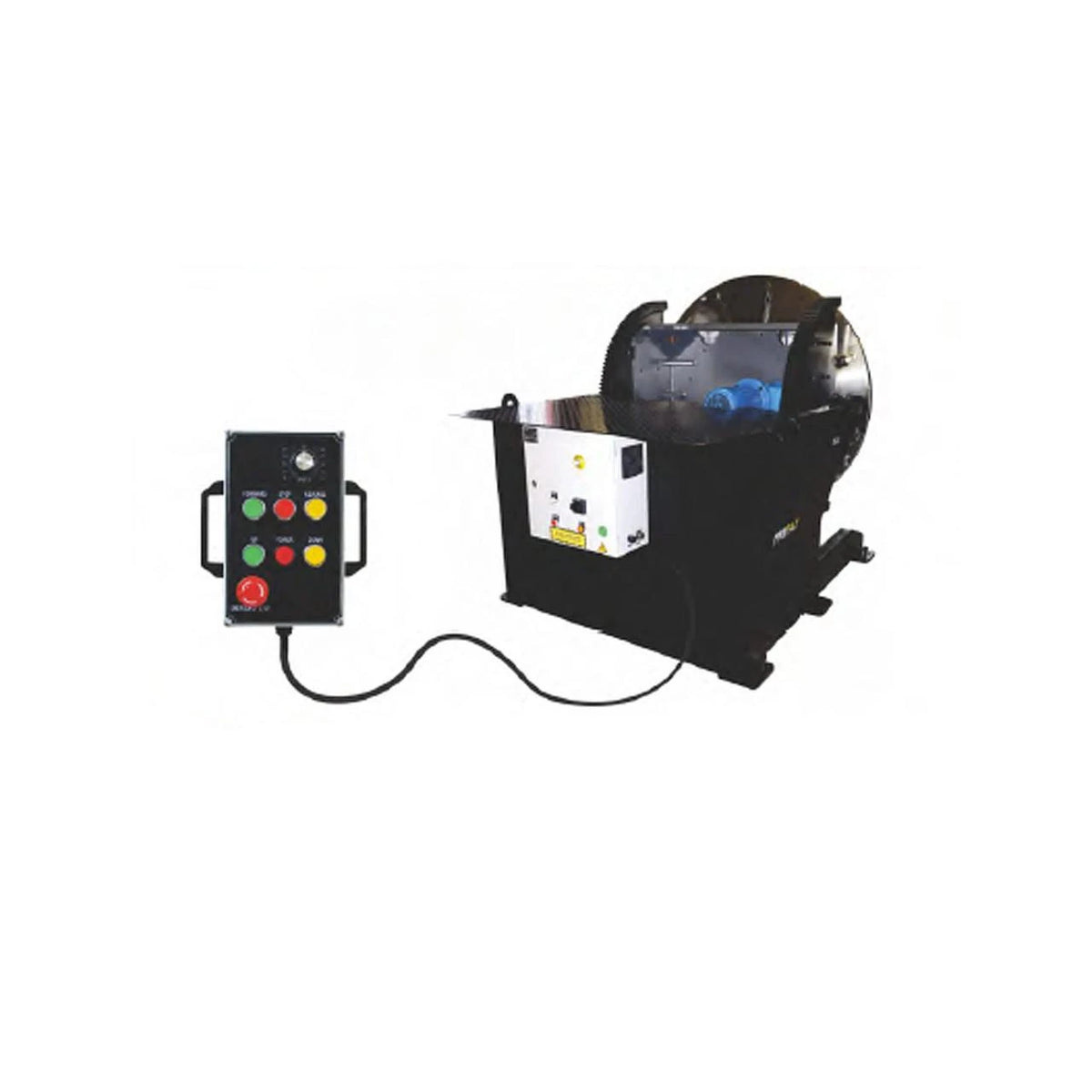

- Remote operation: Hand-control pendant allows operation away from the machine.
- Rotation adjustment: Variable-speed rotation lets the operator choose movement to suit the welding task within the stated speed range.
- Pendant lead: The long pendant lead provides flexibility when choosing an operating position around the workpiece.
Before You Buy
The horizontal and vertical capacities apply to their stated table orientations and the manufacturer’s load-centre conditions. The allowable load depends on the combined weight and centre of gravity of the workpiece, chuck and fixture. Confirm the complete workholding arrangement and applicable load-centre limits for the supplied machine before use; the listed capacities are not an unrestricted rating for every workpiece shape or offset.
The CFS-404 foot control is optional and sold separately.
In the Box
- Welding positioner
- Hand control pendant
Specifications
| Rotation speed | 0.06–0.6 rpm |
|---|---|
| Tilt range | 0–135° |
| Vertical capacity | 4,535 kg (10,000 lb) |
| Ground capacity | 800 A |
| Hand-control pendant cord length | 25 ft (7.62 m) |
| Tilt adjustment | Powered |
| Manufacturer warranty | 1 year |
| Input voltage | 440 V |
| Input current | 20 A |
| Table diameter | 1,498 mm (59 in) |
| Load centre of gravity limit | 300 mm (12 in), nominal; from the table centre and table face |
| Supply phases | Three phase |
|---|
