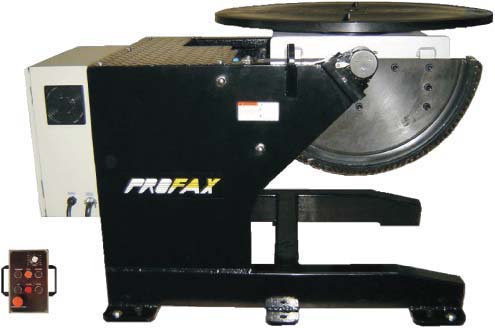

PROFAX Powered-Tilt Welding Positioner WP2000-4
PROFAX Powered-Tilt Welding Positioner WP2000-4
GST included. Shipping calculated at checkout.
Freight may be charged after checkout
Prices include GST. If freight cannot be calculated at checkout, choose “Uncalculate Shipping (charge after check-out)”. Any $0 shown for this option is not free delivery.
We will contact you by SMS or email with freight options and the delivery charge. Freight must be agreed and paid before dispatch.
Availability, lead time and the supplied configuration will be confirmed with you. For a freight quote before ordering, email our team with the model, quantity and delivery postcode.
SKU: WP2000-4
Delivery options
Select your suburb for a delivery estimate. Additional courier options are available at checkout.
Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.
Buy with confidence
Delivery & pickupAvailable to order · Lead time varies
Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.
Australia-wide delivery. Available shipping options and costs are shown at checkout.
Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.
Returns & exchanges90 days for eligible unopened items
Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.
You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.
Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.
Warranty & supportProduct-specific warranty & support
Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.
For a fault or incorrect item, contact our team with your order details and a description of the issue.
Need help choosing?
Call our Smithfield team for product advice and compatibility checks.
Take a closer look
Product information
Details
PROFAX Powered-Tilt Welding Positioner supports larger workpieces with powered table tilt and variable-speed rotation. The supplied hand pendant provides remote operation and speed adjustment, allowing the operator to control positioning away from the machine control cabinet. A tilt-angle indicator shows the table angle, and a rotary grounding device provides the welding-current connection.
Key Features
- Powered rotation: Rotates the secured workpiece during welding.
- High-frequency protection: The positioner incorporates high-frequency protection for welding use.
- Powered tilt and rotation: Powered table tilt and variable-speed rotation.
- Remote control: Hand pendant provides remote control with speed adjustment.
- Angle indication and grounding: Standard tilt-angle indicator and rotary grounding device.
- Pendant adjustment: The pendant combines remote positioning control with rotation-speed adjustment.
- Workholding installation: Three-slot and four-slot table arrangements, anchor points and levelling bolts support a fixed workholding installation.
Before You Buy
The horizontal and vertical capacities apply to their stated table orientations and the manufacturer’s load-centre conditions. The allowable load depends on the combined weight and centre of gravity of the workpiece, chuck and fixture. Confirm the complete workholding arrangement and applicable load-centre limits for the supplied machine before use; the listed capacities are not an unrestricted rating for every workpiece shape or offset.
CFS-404 foot control, chucks and grippers are optional and sold separately.
In the Box
- Welding positioner
- Hand control pendant
Specifications
| Vertical capacity | 909 kg |
|---|---|
| Horizontal capacity | 1,590 kg |
| Tilt range | 0–135° |
| Tilt adjustment | Powered |
| Supply phases | Three phase |
| Rotation speed | 0.1–1.2 rpm |
| Ground capacity | 800 A |
| Hand-control pendant cord length | 25 ft (7.62 m) |
| Grounding device | Rotary |
| Tilt-angle indicator | Standard |
| Table thickness | 25 mm |
| Table configuration | 3-slot and 4-slot |
| Table height, horizontal | 896 mm |
| Table centre height, vertical | 768 mm |
| Rotation motor | 1 hp |
| Speed adjustment | Hand pendant |
| Anchor points | 6 |
| Levelling bolts | Included |
| Unit width | 914 mm |
| Unit length | 1,537 mm |
| Manufacturer warranty | 1 year |
| Input voltage | 415 V |
| Table diameter | 887.5 mm |
|---|---|
| Load centre of gravity limit | 300 mm from the table centre and table face |
