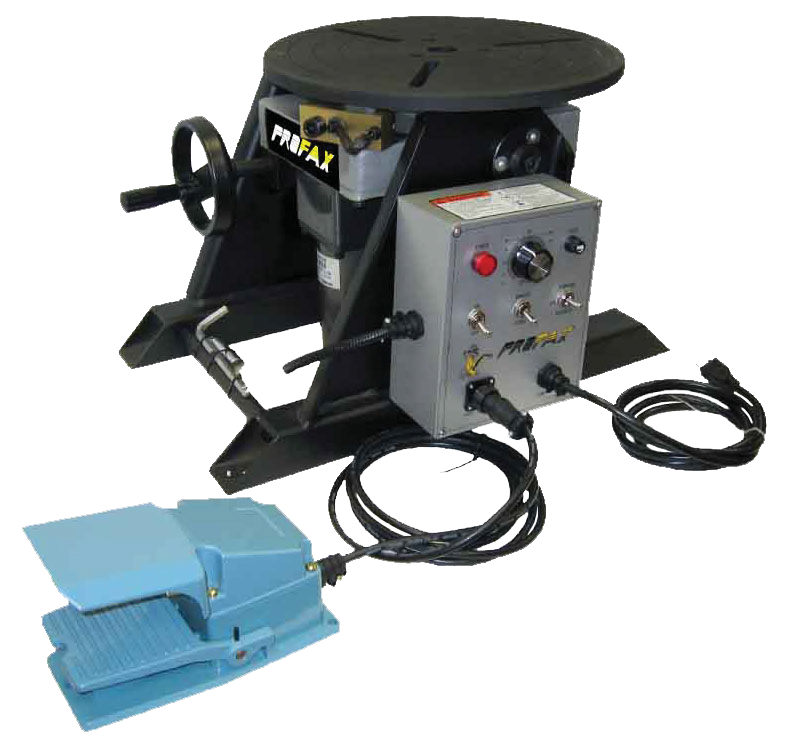

PROFAX Manual-Tilt Welding Positioner WP250-2
PROFAX Manual-Tilt Welding Positioner WP250-2
GST included. Shipping calculated at checkout.
Freight may be charged after checkout
Prices include GST. If freight cannot be calculated at checkout, choose “Uncalculate Shipping (charge after check-out)”. Any $0 shown for this option is not free delivery.
We will contact you by SMS or email with freight options and the delivery charge. Freight must be agreed and paid before dispatch.
Availability, lead time and the supplied configuration will be confirmed with you. For a freight quote before ordering, email our team with the model, quantity and delivery postcode.
SKU: WP250-2
Delivery options
Select your suburb for a delivery estimate. Additional courier options are available at checkout.
Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.
Buy with confidence
Delivery & pickupAvailable to order · Lead time varies
Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.
Australia-wide delivery. Available shipping options and costs are shown at checkout.
Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.
Returns & exchanges90 days for eligible unopened items
Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.
You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.
Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.
Warranty & supportProduct-specific warranty & support
Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.
For a fault or incorrect item, contact our team with your order details and a description of the issue.
Need help choosing?
Call our Smithfield team for product advice and compatibility checks.
Take a closer look
Product information
Details
PROFAX Manual-Tilt Welding Positioner holds and rotates workpieces for welding, combining powered variable-speed table rotation with manual tilt adjustment. The operator sets the table angle and rotation speed, then uses the supplied foot control for start/stop operation. Its separate horizontal and vertical load ratings help identify the appropriate working orientation.
Key Features
- Powered rotation: Rotates the secured workpiece during welding.
- High-frequency protection: The positioner incorporates high-frequency protection for welding use.
- Variable-speed rotation: Variable-speed powered rotation with manual table tilt.
- Foot-operated start/stop: Foot-operated start/stop control lets the operator control rotation while keeping both hands available for the welding task.
- Slotted worktable: The slotted table provides fixing positions for suitable workholding fixtures or an optional compatible chuck.
Before You Buy
The horizontal and vertical capacities apply to their stated table orientations and the manufacturer’s load-centre conditions. The allowable load depends on the combined weight and centre of gravity of the workpiece, chuck and fixture. Confirm the complete workholding arrangement and applicable load-centre limits for the supplied machine before use; the listed capacities are not an unrestricted rating for every workpiece shape or offset.
Optional positioner chucks and hand pendant are sold separately.
In the Box
- Welding positioner
- Foot control
Specifications
| Vertical capacity | 113 kg |
|---|---|
| Horizontal capacity | 200 kg |
| Tilt range | 0–90° |
| Tilt adjustment | Manual |
| Ground capacity | 300 A |
| Grounding device | Brass |
| Table thickness | 14 mm |
| Table configuration | 3-slot |
| Table height, horizontal | 335 mm |
| Table centre height, vertical | 255 mm |
| Through-hole diameter | 28 mm |
| Rotation motor | 1/8 hp |
| Speed adjustment | Machine control panel |
| Anchor points | 4 |
| Unit width | 313 mm |
| Unit length | 525 mm |
| Foot-control cord | 12 ft (approximately 3.6 m) |
| Manufacturer warranty | 1 year |
| Input voltage | 240 V |
| Load centre of gravity limit | 100 mm (4 in), nominal; from the table centre and table face |
| Rotation speed | 0–5.5 rpm |
|---|---|
| Table diameter | 340 mm (nominal metric) |
