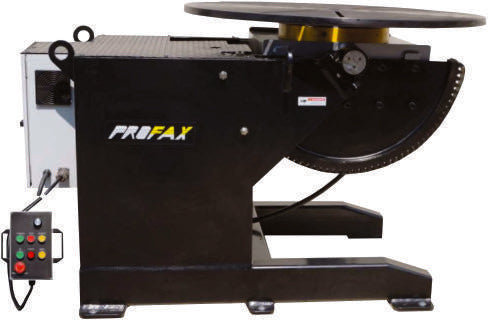

PROFAX Powered-Tilt Welding Positioner WP6000-4
PROFAX Powered-Tilt Welding Positioner WP6000-4
GST included. Shipping calculated at checkout.
Freight may be charged after checkout
Prices include GST. If freight cannot be calculated at checkout, choose “Uncalculate Shipping (charge after check-out)”. Any $0 shown for this option is not free delivery.
We will contact you by SMS or email with freight options and the delivery charge. Freight must be agreed and paid before dispatch.
Availability, lead time and the supplied configuration will be confirmed with you. For a freight quote before ordering, email our team with the model, quantity and delivery postcode.
SKU: WP6000-4
Delivery options
Select your suburb for a delivery estimate. Additional courier options are available at checkout.
Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.
Buy with confidence
Delivery & pickupAvailable to order · Lead time varies
Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.
Australia-wide delivery. Available shipping options and costs are shown at checkout.
Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.
Returns & exchanges90 days for eligible unopened items
Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.
You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.
Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.
Warranty & supportProduct-specific warranty & support
Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.
For a fault or incorrect item, contact our team with your order details and a description of the issue.
Need help choosing?
Call our Smithfield team for product advice and compatibility checks.
Take a closer look
Product information
Details
PROFAX Powered-Tilt Welding Positioner holds and rotates heavy workpieces for welding, with powered tilt to change the working angle. The variable-speed drive controls rotation, and the standard tilt-angle indicator assists with setting the table orientation. Its rotary grounding device and high-frequency protection are part of the positioner specification.
Key Features
- Powered rotation: Rotates the secured workpiece during welding.
- High-frequency protection: The positioner incorporates high-frequency protection for welding use.
- Powered tilt and rotation: Powered table tilt and variable-speed rotation.
- Angle indication and grounding: Standard tilt-angle indicator and rotary grounding device.
- Slotted worktable: The slotted table provides mounting positions for appropriate fixtures or compatible optional workholding accessories.
- Base installation: Six anchor points and included levelling bolts support installation and adjustment of the machine base.
- Hand-pendant operation: The standard hand pendant provides remote operation and speed adjustment.
Before You Buy
The horizontal and vertical capacities apply to their stated table orientations and the manufacturer’s load-centre conditions. The allowable load depends on the combined weight and centre of gravity of the workpiece, chuck and fixture. Confirm the complete workholding arrangement and applicable load-centre limits for the supplied machine before use; the listed capacities are not an unrestricted rating for every workpiece shape or offset.
CFS-404 foot control, chucks and grippers are optional and sold separately.
The supplied machine requires a 440 V three-phase supply. Primary input cable and plug are not supplied.
In the Box
- One WP6000-4 welding positioner.
- One hand-control pendant.
Specifications
| Horizontal capacity | 4,309 kg (9,500 lb) |
|---|---|
| Table diameter | 1,200 mm |
| Tilt range | 0–135° |
| Tilt adjustment | Powered |
| Vertical capacity | 2,721 kg (6,000 lb) |
| Rotation speed | 0.1–1.2 rpm |
| Ground capacity | 800 A |
| Grounding device | Rotary |
| Tilt-angle indicator | Standard |
| Table thickness | 25 mm |
| Table configuration | 3-slot and 4-slot |
| Table height, horizontal | 1,092 mm |
| Table centre height, vertical | 927 mm |
| Rotation motor | 2 hp |
| Speed adjustment | Hand pendant |
| Anchor points | 6 |
| Levelling bolts | Included |
| Unit width | 1,200 mm |
| Unit length | 1,800 mm |
| Manufacturer warranty | 1 year |
| Input voltage | 440 V |
| Input current | 10 A |
| Supply phases | Three phase |
|---|---|
| Load centre of gravity limit | 304 mm from the table centre and table face |
