PROFAX Extended-Reach Welding Oscillator and Slide Assembly XRS OSCILLATOR
PROFAX Extended-Reach Welding Oscillator and Slide Assembly XRS OSCILLATOR
GST included. Shipping calculated at checkout.
SKU: XRS OSCILLATOR
Available to order
Delivery options
Select your suburb for a delivery estimate. Additional courier options are available at checkout.
Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.
Buy with confidence
Delivery & pickupAvailable to order · Lead time varies
Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.
Australia-wide delivery. Available shipping options and costs are shown at checkout.
Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.
Returns & exchanges90 days for eligible unopened items
Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.
You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.
Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.
Warranty & supportProduct-specific warranty & support
Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.
For a fault or incorrect item, contact our team with your order details and a description of the issue.
Need help choosing?
Call our Smithfield team for product advice and compatibility checks.
Take a closer look
Product information
Details

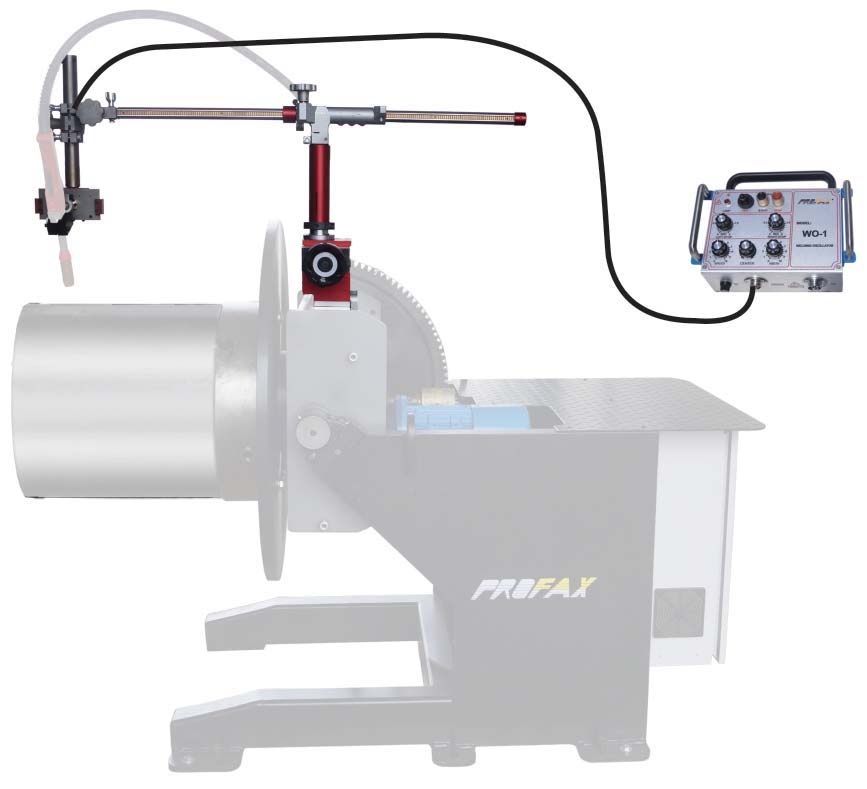

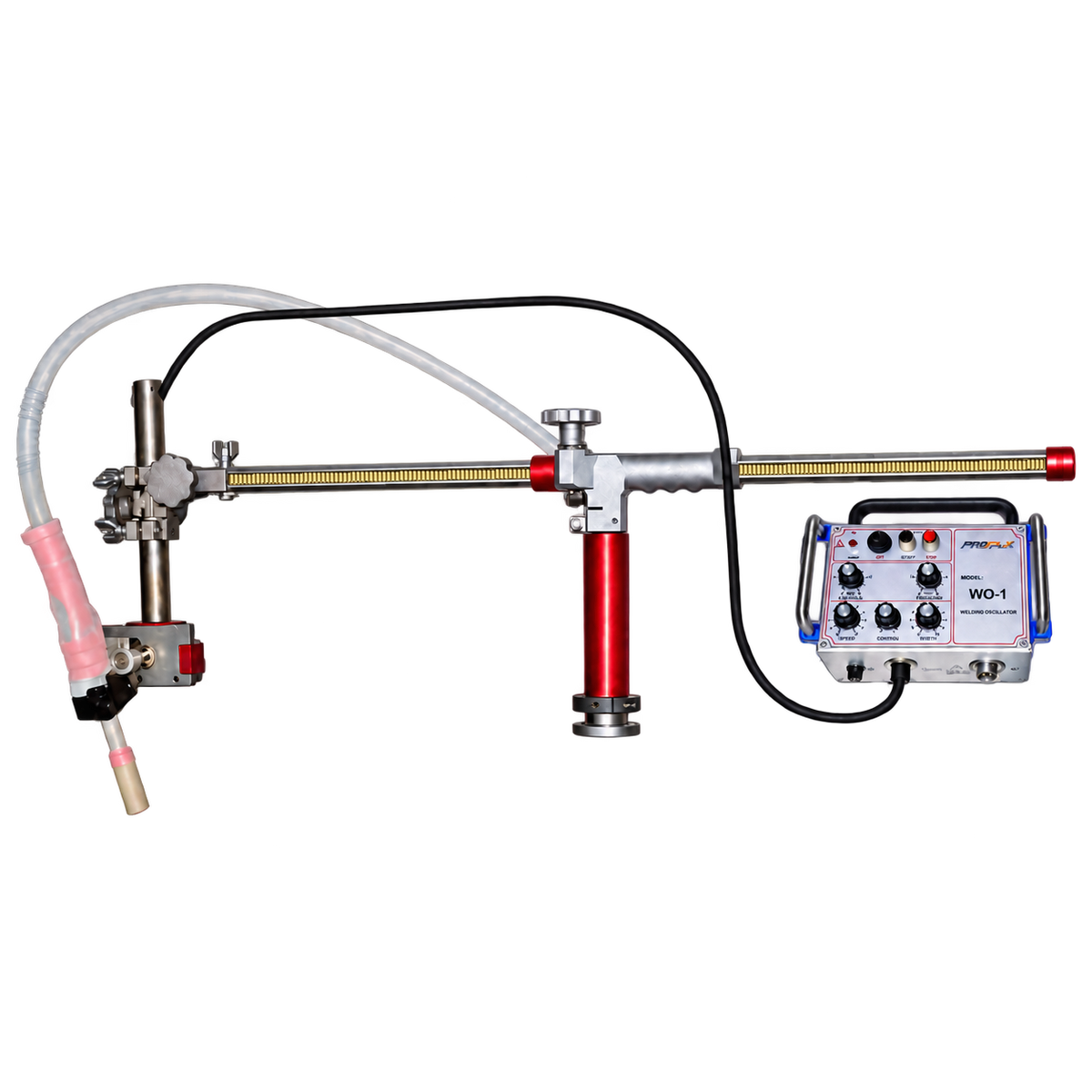

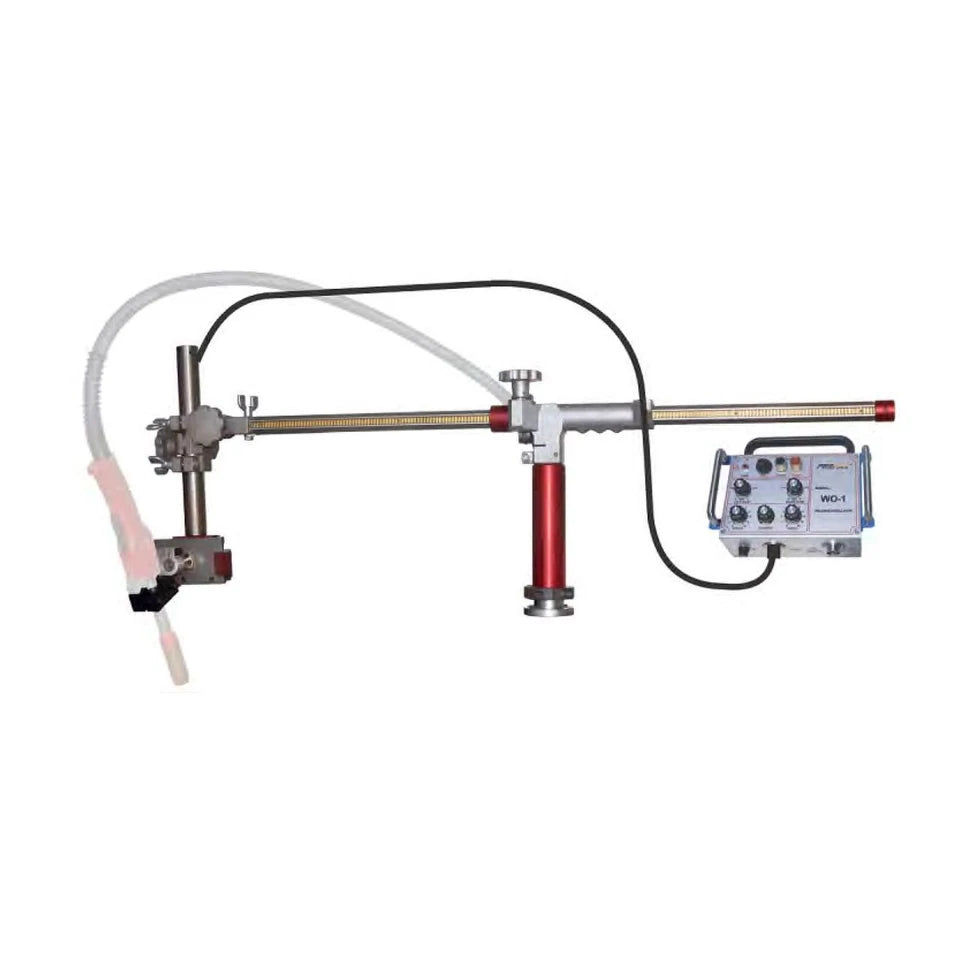

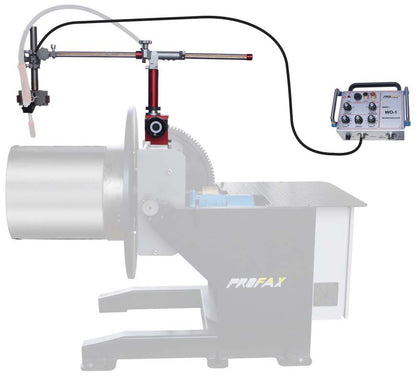

PROFAX Extended-Reach Welding Oscillator and Slide Assembly combines a WO-1S linear oscillator with an adjustable torch-positioning arm and manual cross slide. It moves the torch from side to side during mechanised welding, while the articulated head, swivel base and slide adjustments let the operator align the torch with the joint.
Key Features
- Dual-axis adjustment: Adjusts the torch angle in both the x and y directions.
- Swivel base: Repositions the torch-support assembly around its mounting point.
- Pre-drilled base: Provides prepared mounting holes for installation.
- Articulated positioning: Fully articulated torch-positioning head.
- Oscillation control: Adjustable oscillation width and left/right dwell settings let the operator control the sweep and pause at either side of the joint.
- Independent setup adjustment: Manual slide and arm adjustments set the torch position independently of the powered oscillating movement.
Before You Buy
Positioner and welding torch are not included.
In the Box
- WO-1S linear oscillator head and control
- XRS torch holder
- Manual cross-slide kit
- Two mounting clamps
Specifications
| Vertical torch adjustment | 20 cm |
|---|---|
| Horizontal adjustment | 68 cm |
| Total reach | 83 cm |
| Removable riser | 20 cm |
| Oscillator head and control | WO-1S linear oscillator |
| Manual cross-slide travel | 200 mm (8 in) |
The assembly includes the XRS-KIT and XRS torch holder. The cross-slide mounting clamps allow mounting without drilling.
