Drillmate

DRILLMATE VAC-PAD

DRILLMATE VAC-PAD

  • Special Order Item
$1,897.50 AUD
$0.00 AUD $1,897.50 AUD
Sale Sold out
Shipping calculated at checkout.
Selection

VPSLRB

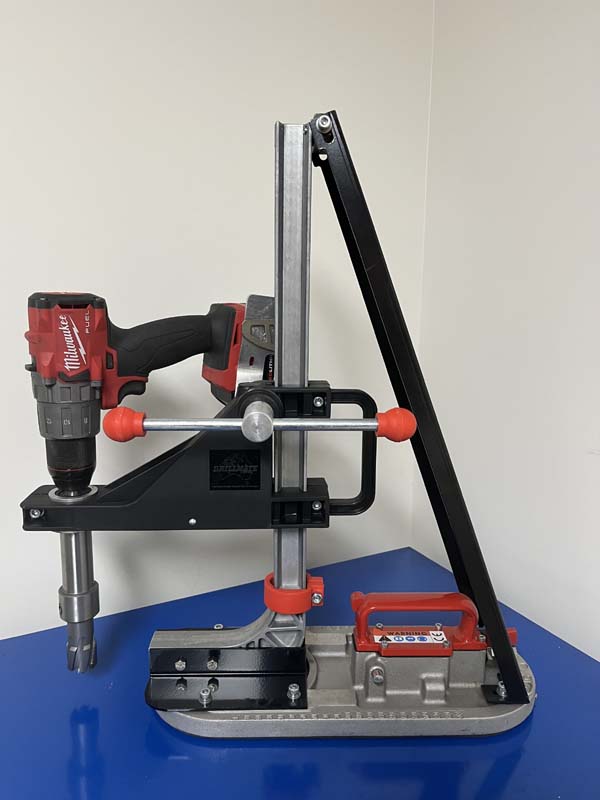

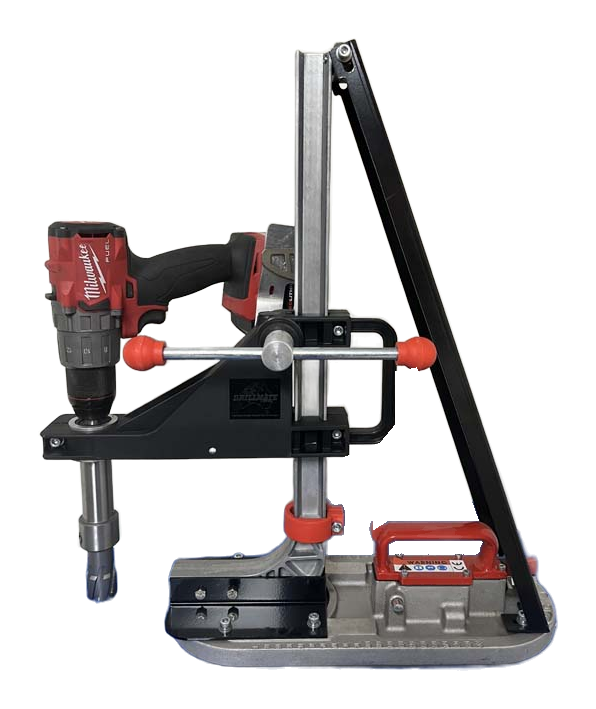

VAC-PAD WITH DRILLING MAST AND REAR STAY – PART NUMBER: VPSLRB
The Vac-Pad with drill mast can be used in several ways and now with the battery drill spindle kit attachments, makes it more portable and able to do larger holes.

  • Requires compressed air pressure (minimum 450kPa (70 PSI)).
  • This unit has a holding power of 320kgs with air pressure supplied to the vacuum generator of 450kpa+
  • Gives full stability due to the stabilizing feet incorporated and can lock on to checker plate, un-even surfaces
    (such as concrete so that core and hammer drills can be used)
  • With the new mounting for air drill attachment with “U” bolts, it is possible to fit larger air drill if required (for oil rig work)

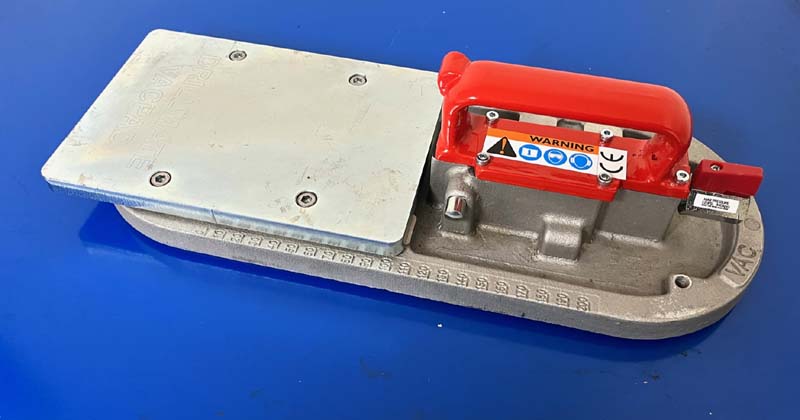

VAC-PAD WITH STEEL PLATE PART NUMBER: D110SP
The Vac-Pad enables magnetic drilling machines to effectively operate on non-ferrous  material, providing the ability to convert a magnetic drilling machine to cut on non-magnetic or thin surfaces.

  • Requires compressed air pressure (minimum 450kPa (70 PSI)).
  • Covers a complete range of magnetic drilling machines
  • This unit has a holding power of 320kgs with air pressure supplied to the vacuum generator of 450kpa+
  • Gives full stability due to the stabilizing feet incorporated
  • Steel plate size: 200 x 135mm Weight: 4.2kgs

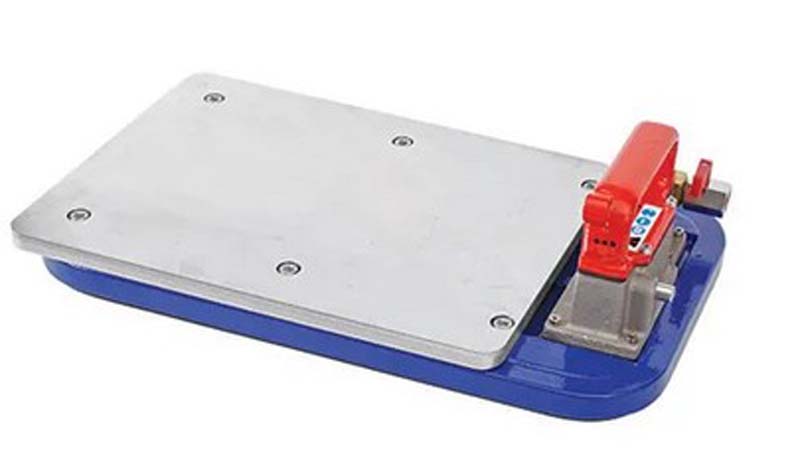

MEGA VAC-PAD PART NUMBER: D110MEG
The Mega Vac-Pad is designed to accept large magnetic drills with drilling capacity up to 200mm dia. holes into all types of steel including non-ferrous material.

  • Requires compressed air pressure (minimum 450kPa (70 PSI)).
  • Covers a complete range of larger magnetic drilling machines
  • Allows smaller machines to drill in multiple positions without moving fixture.
  • This unit has a holding power of 820kgs with air pressure supplied to the vacuum generator of 450kpa+
  • Gives full stability due to the stabilizing feet incorporated
  • Steel plate size 345 x 250mm Weight: 11.2kgs

*Note drill bits are not included, Products do not include battery, electric or magnetic drills.
Compatible with Most Brand Battery Operated Portable Drill Units, and Drilling systems.
