Nitto Kohki

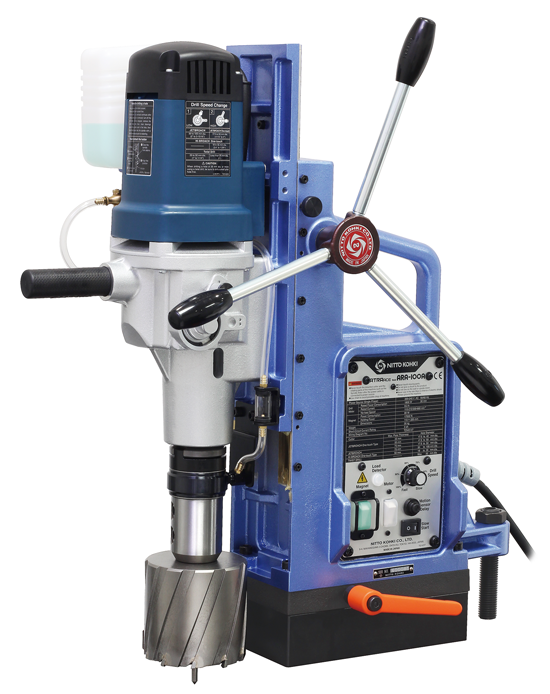

Nitto Atra Ace ARA-100A Manual Magnetic Base Drill

Nitto Atra Ace ARA-100A Manual Magnetic Base Drill

  • Special Order Item
Regular price $8,773.86 AUD
Regular price $0.00 AUD Sale price $8,773.86 AUD
Sale Sold out
Shipping calculated at checkout.

SKU:NTARA-100A

Key Features

• Large diameter hole cutting
• Cuts 18mm - 100mm through up to 75mm plate thickness
• Two-speed electric drill with speed adjustment
• Load Indication and LED Condition System
• Drilling position adjustment 20mm back and forth and 15 degrees left or right
• Reversible feed handles
• Supplied with side-lock cutter holder (BHM03075) to use 75mm deep side-lock Jetbroach cutter from 50 to 100mm dia
• Can take Ozbroach and Jetbroach cutters as well as 3 Morse TaperTwist Drill Bits up to 32mm
• Requires a One-Touch holder (BHM03050) for use with Ozbroach one-touch cutters

Applications

• On-site hole cutting in steel plates, H-Beams shaped bars, framework, shipbuilding, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs

Specifications

Model ARA 100A
Power Source 220~240V AC 50-60Hz
Rated Power Consumption 1800W
No Load Speed Low - 110-210RPM HIGH - 330-660RPM
Hole Diameter 17.5-100mm
Plate Thickness 9-75mm
Magnetic Holding Power 1,733kg/f
Weight 30kg

Accessories

Standard Accessories

• Carry Case
• 3 mm Hex. Socket Screw Key
• Cutting Oil 0.5L
• 4 mm Hex. Socket Screw Key
• Pilot Pin 08050
• 8 X 10 mm Spanner
• Side Handle
• Guard
• Chip Breaker
• Pilot Pin 08050 A3: 1 pc.


Optional Accessories

• OZBROACH: High-speed steel, One-touch type: 25mm and 50mm depth of cut
• OZBROACH: Countersink - Product No. OT10-30CS
  *Manual mode only
• JETBROACH: TCT carbide-tipped cutters: 25mm, 35mm and 50mm depth of cut
