Nitto Kohki

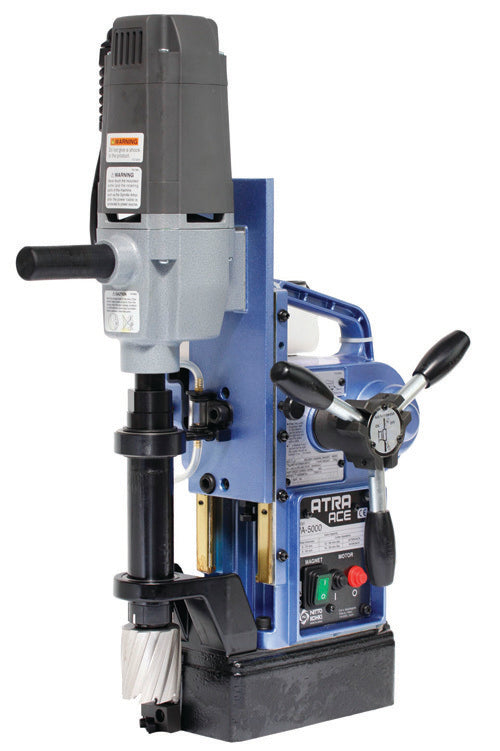

Nitto Atra Ace WA-5000 Automatic Magnetic Base Drill

Nitto Atra Ace WA-5000 Automatic Magnetic Base Drill

  • Special Order Item
Regular price $4,187.52 AUD
Regular price $0.00 AUD Sale price $4,187.52 AUD
Sale Sold out
Shipping calculated at checkout.

SKU:NTWA-5000

Key Features

• Automatic feed but can be operated in Manual* also
• Superior 75mm deep hole drilling - automatically cuts holes from 14mm - 50mm
• Boosts productivity
• Powerful two-speed drill motor 350/650rpm
• Complete with coolant tank
• Supplied in sturdy carry case
• Suitable for mild steel drilling applications

Specifications

Model WA 5000
Power Source (Single Phase) 220~240V AC 50/60Hz
Rated Power Consumption 1,150w
No Load Speed 350/650 RPM
Hole Diameter 14-50mm
Plate Thickness 9-75mm
Magnetic Holding Power 1,000 kgf
Weight 23 kg

Standard Accessories

• Carry Case -3 mm Hex. Socket Screw Key
• Cutting Oil 0.5L
• 4 mm Hex. Socket Screw Key
• Pilot Pin 08050
• 8 X 10 mm Spanner
• Side Handle
• Guard
• Chip Breaker
• ChainPilot Pin 0625 / 0650 / 0825 / 0850 : 1 pc each

Optional Accessories

• OZBROACH: High-speed steel, One-touch type: 25mm, 50mm and 75mm depth of cut
• OZBROACH: Countersink - Product No. OT10-30CS
  *Manual mode only
• JETBROACH: TCT carbide-tipped cutters: 25mm, 35mm, 50mm and 75mm depth of cut
