Nitto Kohki

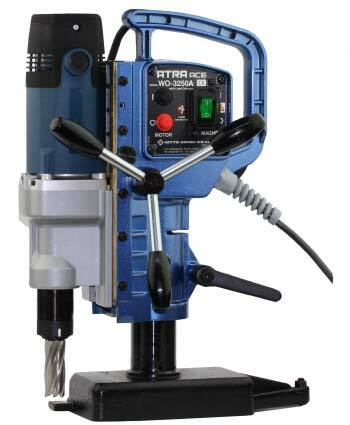

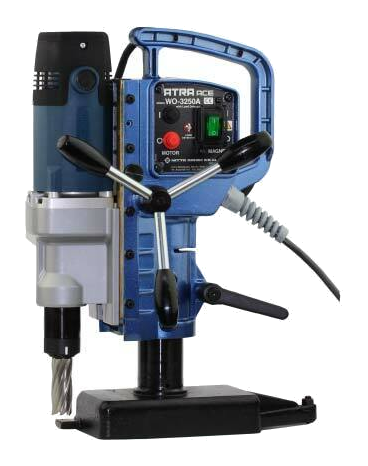

Nitto Atra Ace WO-3250A Manual Magnetic Base Drill

Nitto Atra Ace WO-3250A Manual Magnetic Base Drill

  • Special Order Item
Regular price $2,695.20 AUD
Regular price $0.00 AUD Sale price $2,695.20 AUD
Sale Sold out
Shipping calculated at checkout.

SKU:NTWO-3250A

Key Features

• Manual feed
• New generation magnetic base drill helps meet productivity and safety goals
• New improved overload protection with LED indicator
• Advanced motor design
• Magnet switch protector
• Cuts up to 32mm thru 50mm plate
• Unique design allows easy conversion for use of twist drills up to 13mm diameter
• Complete with coolant system
• Supplied in sturdy carry case

Applications

• On-site hole cutting in steel plates, H-Beams shaped bars, framework, shipbuilding, bridge construction and repair, steel reinforcements, and many other metalworking and construction jobs

Specifications

Model WO 3250A
Power Source 220~240V AC 50/60HZ
Rated Power Consumption 950W
No Load Speed 530rpm
Hole Diameter 12-32mm
Plate Thickness 9-50mm
Magnet Holding Power 900 kg/f
Weight 13kg

Standard Accessories

• Carry Case
• Coolant Tank
• Pilot pin 08035
• Spanner 17mm
• Spanner 7 x 8mm
• Spanner 8 x 10mm
• Safety strap
• Hex. socket bolt 5 x 12
• Hex. socket head set screw 8 x 28
• 4mm Hex. socket screw key
• 5mm Hex. socket screw key
• Spanner 8 x 10mm
• Sub handle and Feed handle

Optional Accessories


• OZBROACH- (High-Speed Steel One-Touch Type 25-50mm depth of cut from 12-22mm dia)
• OZBROACH- Countersink (Part No. OT10-30CS)
• TCT Carbide Tipped Cutters (25mm, 35mm & 50mm depth of cut)
• Jet Oiler(Part No.TQ10581 can be used with tube Part No.TB01098)
• Chip Breaker (Part No. NPTB07691)
• Lubrication Adaptor Ass'y (Part No. TB07306)
