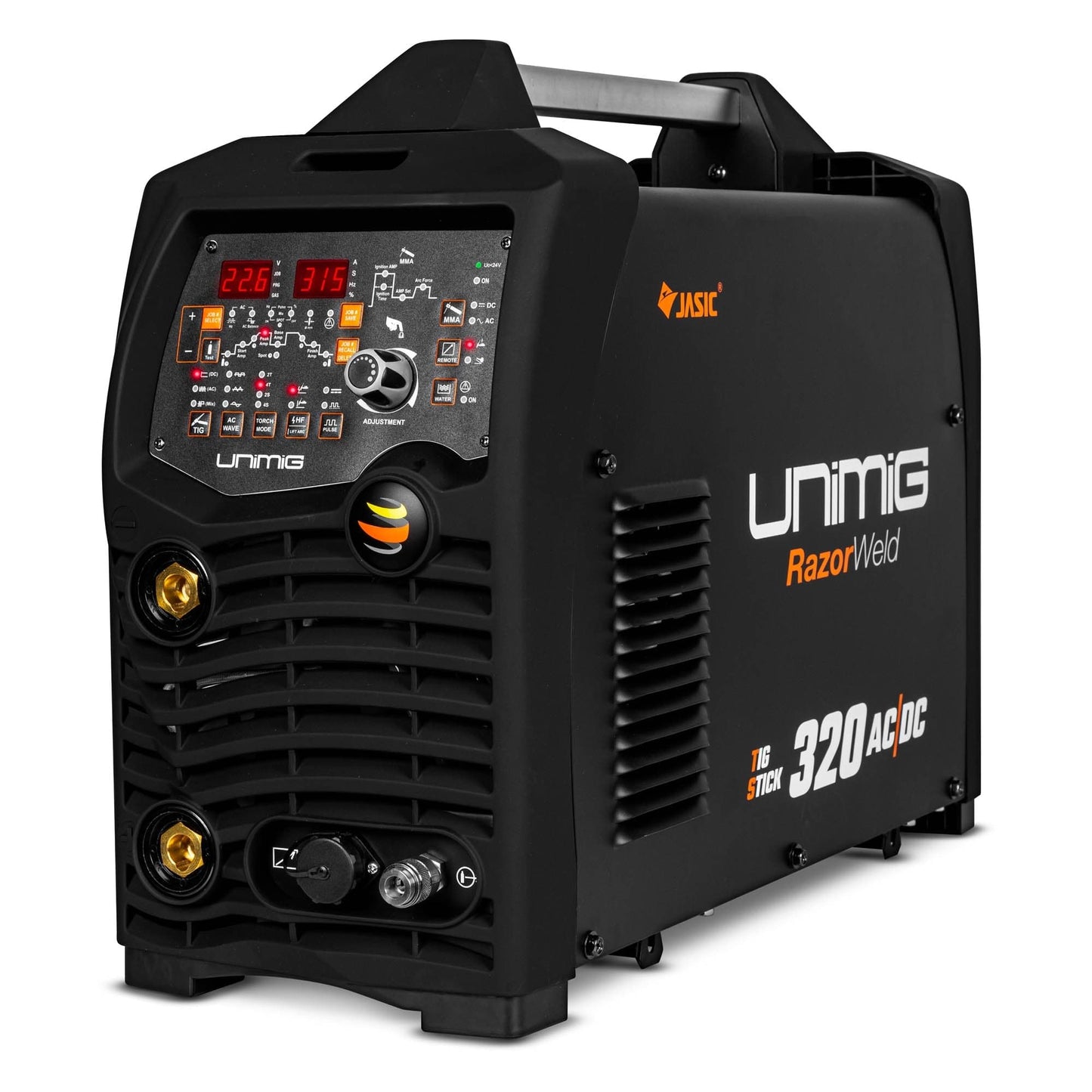

UNIMIG RAZOR 320 AC/DC TIG Welder

UNIMIG RAZOR 320 AC/DC TIG Welder

Regular price $4,075.01 AUD
Regular price $4,125.00 AUD Sale price $4,075.01 AUD
Sale Sold out
Shipping calculated at checkout.

SKU:KUMJRRW320ACDC

Low stock: 1 left

The RAZOR™ 320 AC/DC gives you maximum control over High-Frequency AC/DC TIG welding for incredible results from start to finish. This Three-Phase machine features Square, Trapezoidal and Sine AC output waveforms, as well as MIX ARC AC/DC functions.

The RAZOR™ 320 AC/DC is a complete and professional TIG /STICK welding machine that is ideal for all high-end aluminium, stainless steel fabrication, marine and industrial engineering welding situations.

The all-new ARC TORCHOLOGY T3 TIG Torch comes standard with the RAZOR™ 320 AC/DC, offering up to 30% better power-to-weight ratio and longer consumable lifecycles. A Remote Foot Control and Water Cooler can also be plugged into the machine for even more versatility and power.

MACHINE SPECIFICATIONS
 Primary Input Voltage 415V Three Phase
Supply Plug No plug supplied (20 amp recommend)
Rated Input Power (kVA) 9.0
Ieff (A) 10.0
Rated Output 5-315A
No Load Voltage (V) 9-73
Protection Class IP21S
Insulation Class F
Minimum Generator (kVA) 10.0
Dinse Connector 35/50
Standard AS/NZ60974-1
Suitable Material  Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium
Warranty  3 years



TIG SPECIFICATIONS
 TIG Function Type AC/DC HF TIG & AC/DC Pulse
TIG Welding Current Range
5-315A
TIG Duty Cycle @ 40c
30% @ 315A
TIG Welding Thickness Range
1-16mm



 STICK SPECIFICATIONS
STICK Welding Current Range 10-270A
STICK Duty Cycle @ 40c 30% @ 270A
STICK Electrode Range 2.5-4.0mm
STICK Welding Thickness Range 2-16mm
ARC Force 0-40



SIZE AND WEIGHT
 DIMENSIONS (mm) 566x223.5x405mm
Weight (kg) 25.5kg



MACHINE FEATURES
VRD Yes
Foot Control Connection
Yes
Crater Current Control Yes
Thermal Overload Protection  Over Temperature Warning

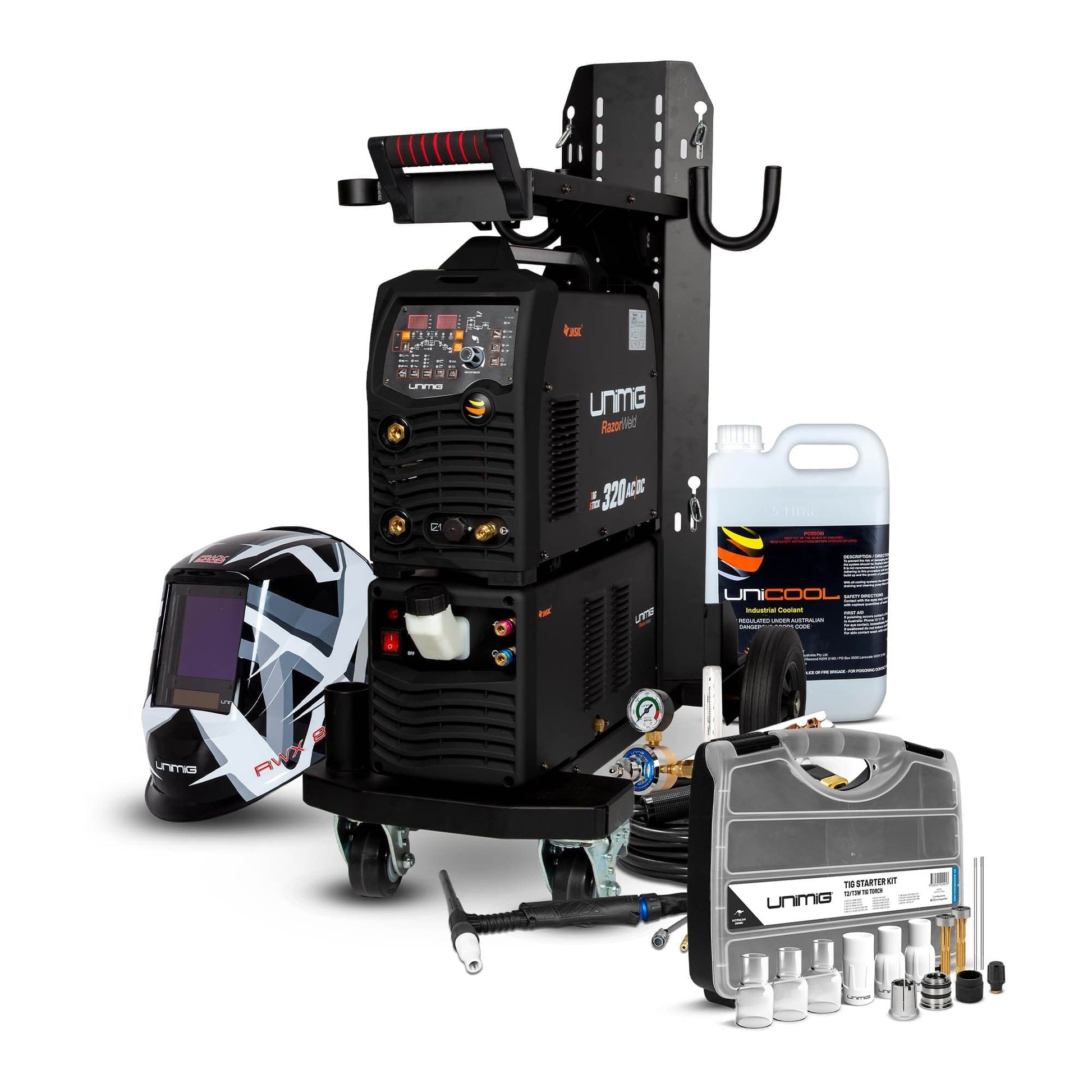

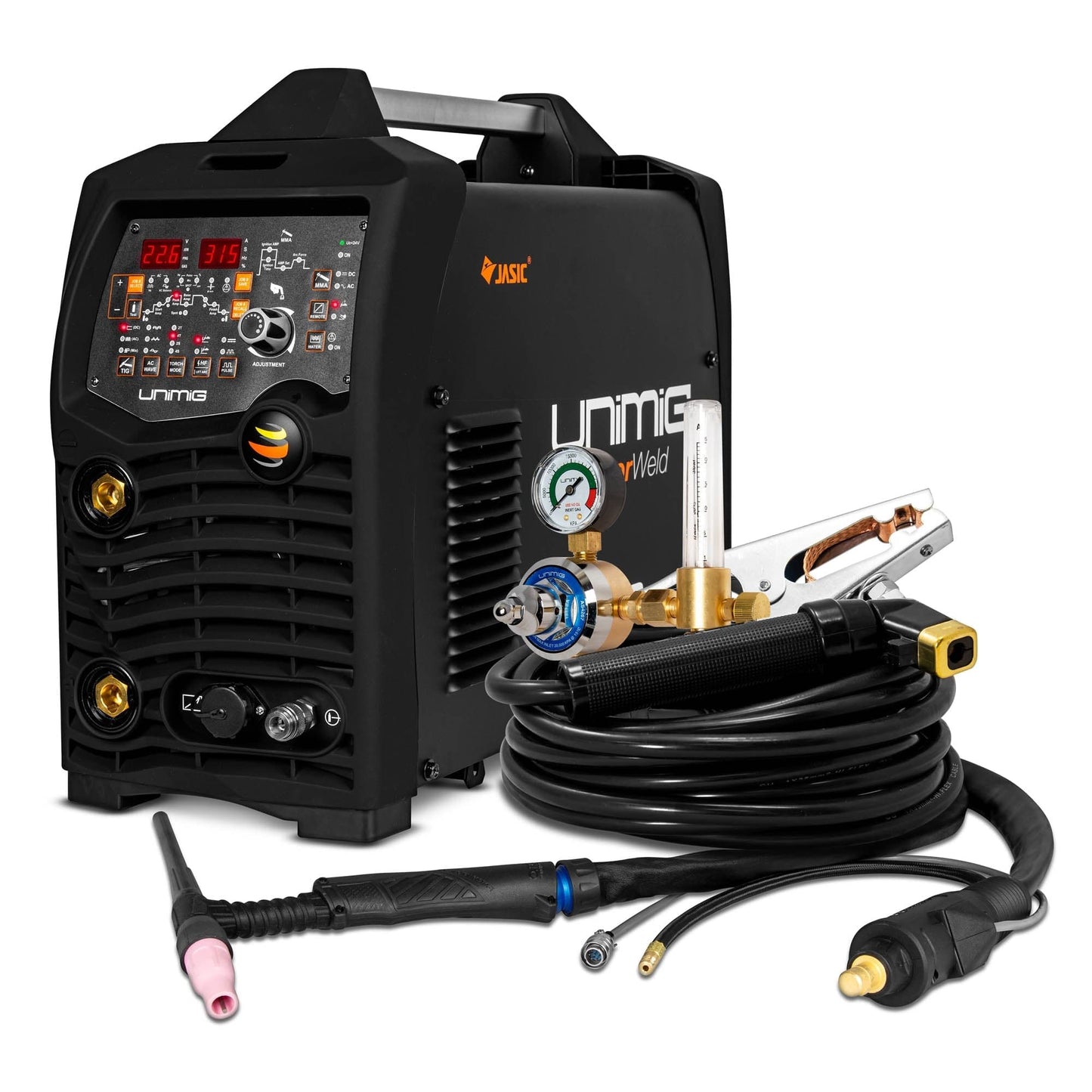

Package Contents (KUMJRRW320ACDC):

  • RAZOR™ 320 AC/DC TIG Welder
  • 4m High Performance T3 TIG Torch
  • 4m Twist Lock Electrode Holder
  • 500 Amp Earth Clamp & Lead
  • Argon Flowmeter Regulator
  • 2m Gas Hose Complete with fittings
  • Operating Manual
  • A&S Satisfied Customer Promise
  • Price-Match Promise
  • 30-Day Returns
