• RAZOR Cut 120 Plasma Cutter - U14002K - A&S Welding & Electrical
1 1

UNIMIG

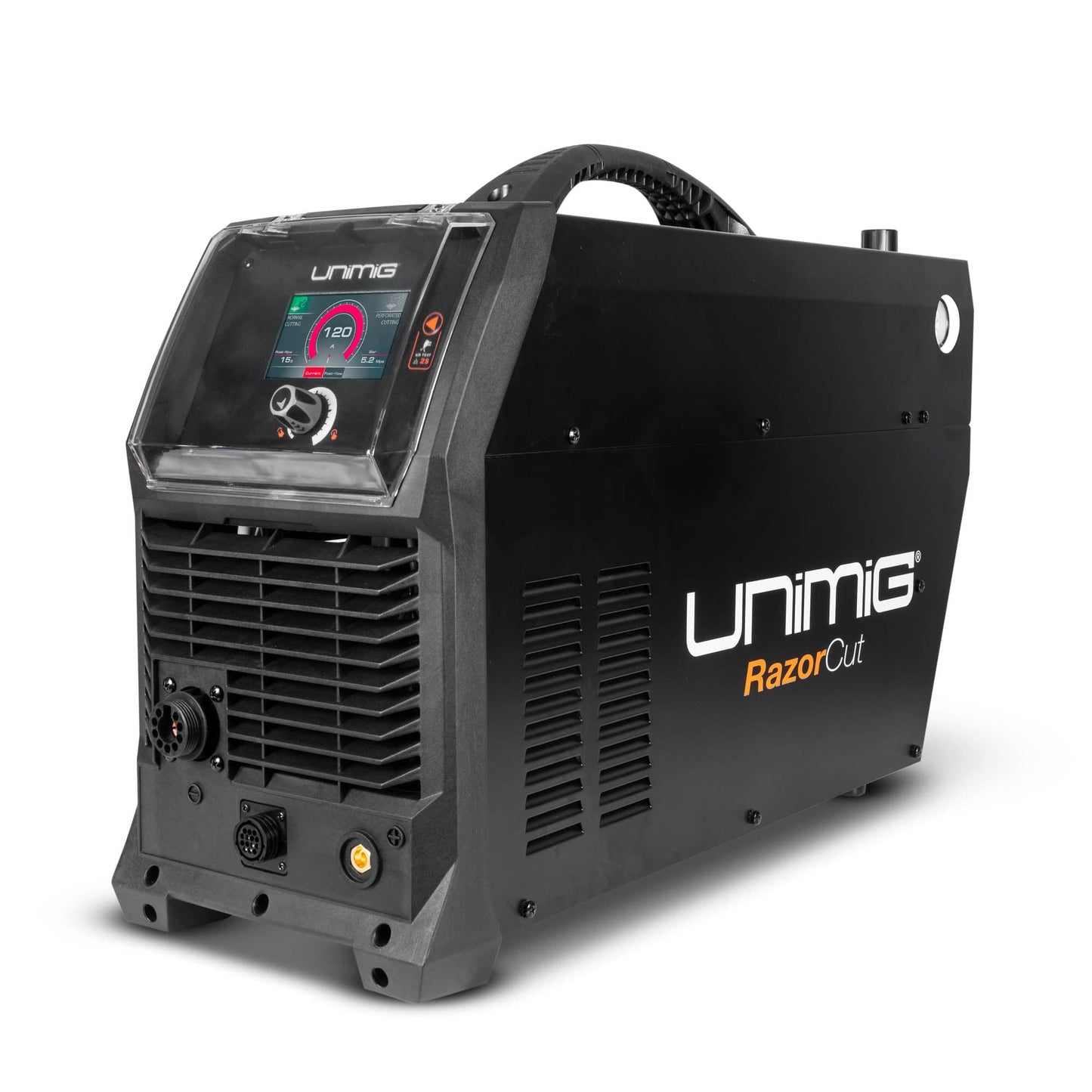

RAZOR Cut 120 Plasma Cutter

RAZOR Cut 120 Plasma Cutter

$3,850.00 AUD
$4,464.00 AUD $3,850.00 AUD
Sale Sold out
Shipping calculated at checkout.

U14002K

Out of stock

The RAZOR™ CUT 120 is designed for maximum performance, offering the highest level of cutting performance from UNIMIG’s range. Capable of clean cutting 45mm and severing 60mm, this machine is for the professional needing maximum power from a portable machine.

MACHINE SPECIFICATIONS
 Primary Input Voltage 415V Three Phase
Supply Plug No plug supplied (32 amp recommend)
Ieff (A) 26
No Load Voltage (V) 420
Protection Class IP21
Insulation Class F
Dinse Connector 10/25
Standard AS/NZ60974-1
Warranty  3 years



SIZE AND WEIGHT
Weight (kg) 24kg



PLASMA CUT SPECIFICATIONS
 Plasma Cut Current Range 20-120A
Plasma Cut Duty Cycle @ 40C
 60% @ 120a, 100% @ 100a
Mild Steel Cut Thickness 45mm
Mild Steel Severance Thickness
 60mm
Aluminum Cut Thickness
 36mm
Stainless Steel Cut Thickness
 45mm
Air Flow Draw Off (l/min)  189
Air Flow Pressure (bar) 5.17 (75psi)
Plasma Arc Start Pilot Arc



Package Contents:

  • RAZOR™ CUT 120 Plasma Cutter
  • 6m SC120 Plasma Torch
  • 4m 300 AMP Earth Clamp
  • Air Regulator
  • Operating Manua
  • Customer Support
  • Price Match
