UNIMIG

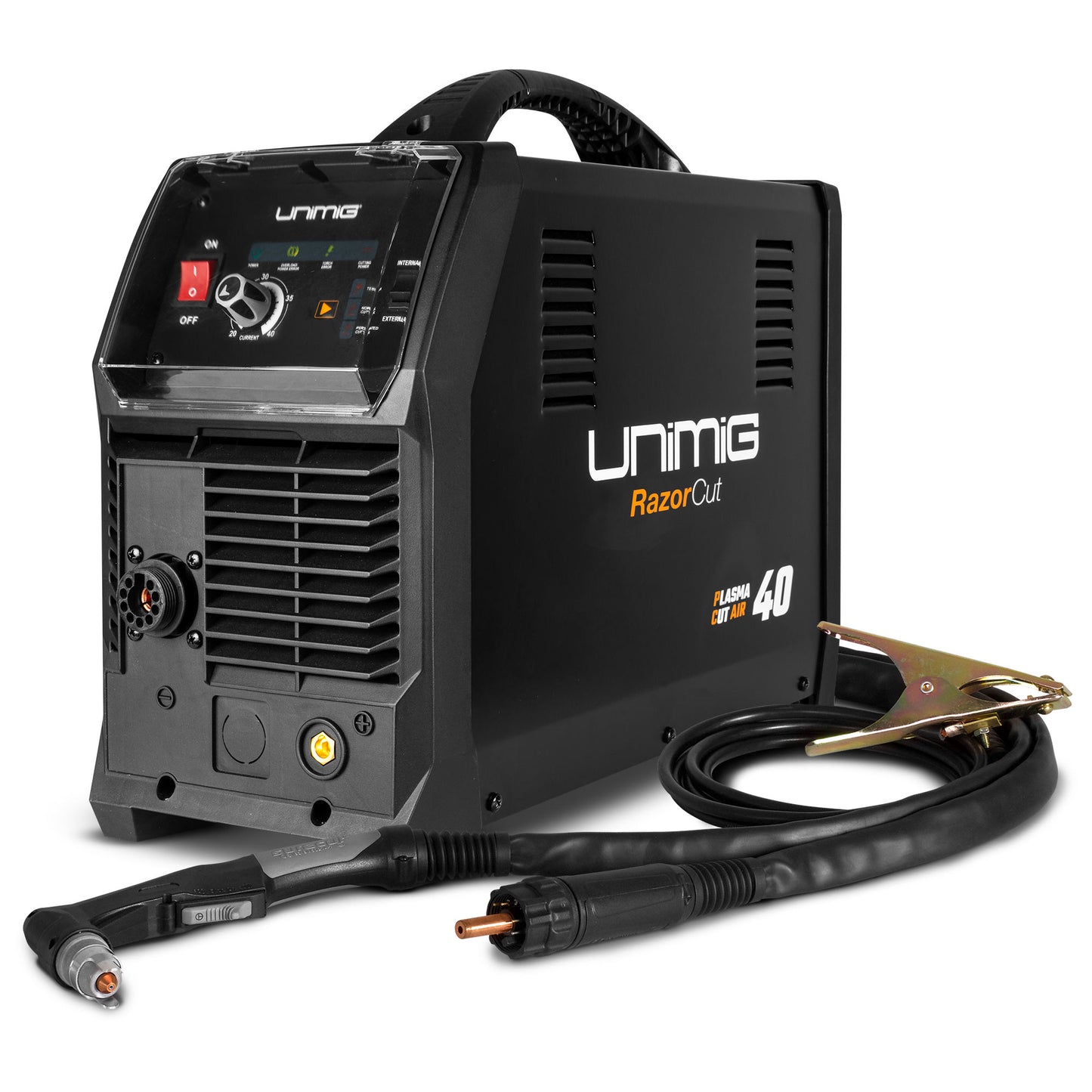

RAZOR Cut 40 Air Plasma Cutter

RAZOR Cut 40 Air Plasma Cutter

$2,129.00 AUD
$4,180.00 AUD $2,129.00 AUD
Sale Sold out
Shipping calculated at checkout.

U14001K

In stock

The RAZOR™ CUT 120 is designed for maximum performance, offering the highest level of cutting performance from UNIMIG’s range. Capable of clean cutting 45mm and severing 60mm, this machine is for the professional needing maximum power from a portable machine.

MACHINE SPECIFICATIONS
 Primary Input Voltage 240V Single Phase
Supply Plug 15Amp
Ieff (A) 15
No Load Voltage (V) 210
Protection Class IP21
Insulation Class H
Dinse Connector 10/25
Standard AS/NZ60974-1
Warranty  3 years



SIZE AND WEIGHT
Weight (kg) 18kg
Dimensions 610x215x420mm



PLASMA CUT SPECIFICATIONS
 Plasma Cut Current Range 20-120A
Plasma Cut Duty Cycle @ 40C
 25% @ 40A / 60% @ 26A / 100% @ 20A
Mild Steel Cut Thickness 12mm (internal) / 16mm (external)
Mild Steel Severance Thickness
 14mm (internal) / 18mm (external)
Aluminum Cut Thickness
 6mm (internal) / 8mm (external)
Aluminium Severance Thickness 8mm (internal) / 10mm (external)
Stainless Steel Cut Thickness
 6mm (internal) / 8mm (external)
Stainless Steel Severance Thickness 8mm (internal) / 10mm (external)
Air Flow Draw Off (l/min)  120
Air Flow Pressure (bar) 5.17 (75psi)
Plasma Arc Start Pilot Arc



Package Contents:

  • RAZOR™ CUT 40 AIR Plasma Cutter
  • 6m SC80 Plasma Torch
  • 4m 300 AMP Earth Clamp
  • Air Regulator
  • Operating Manual
  • Customer Promise
