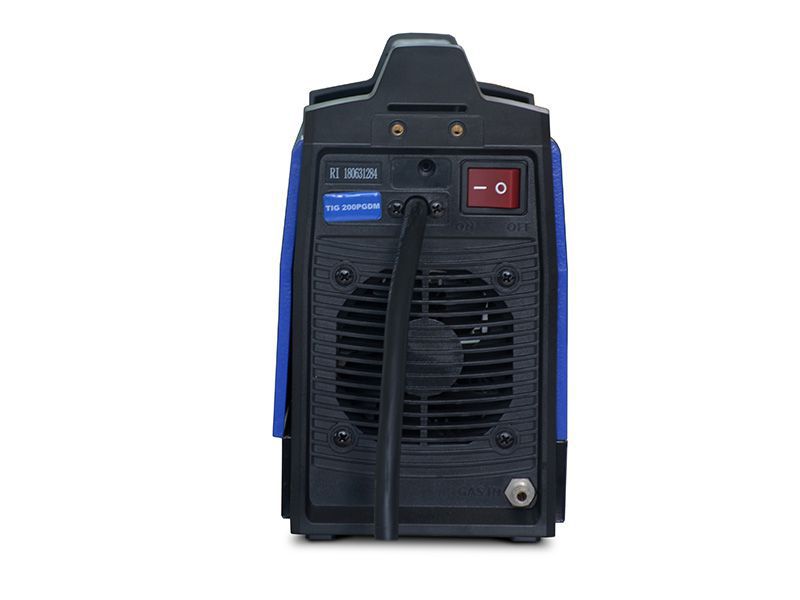

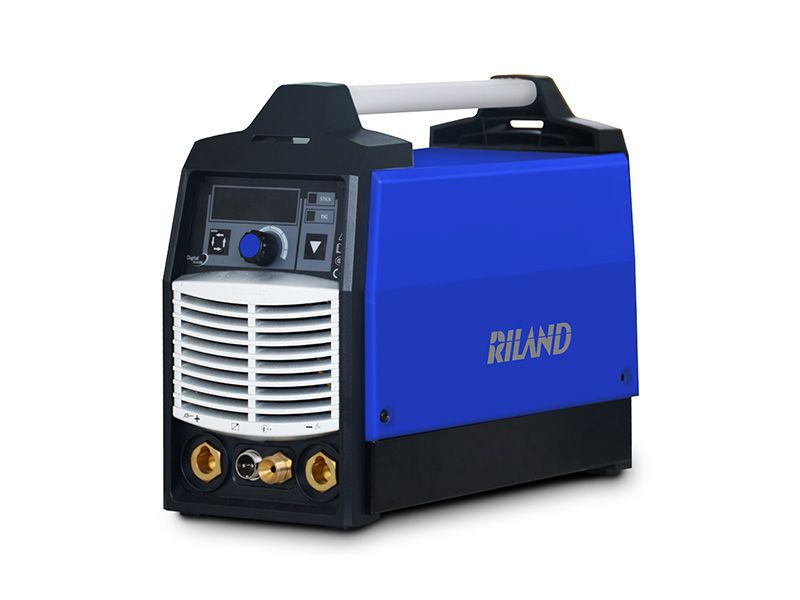

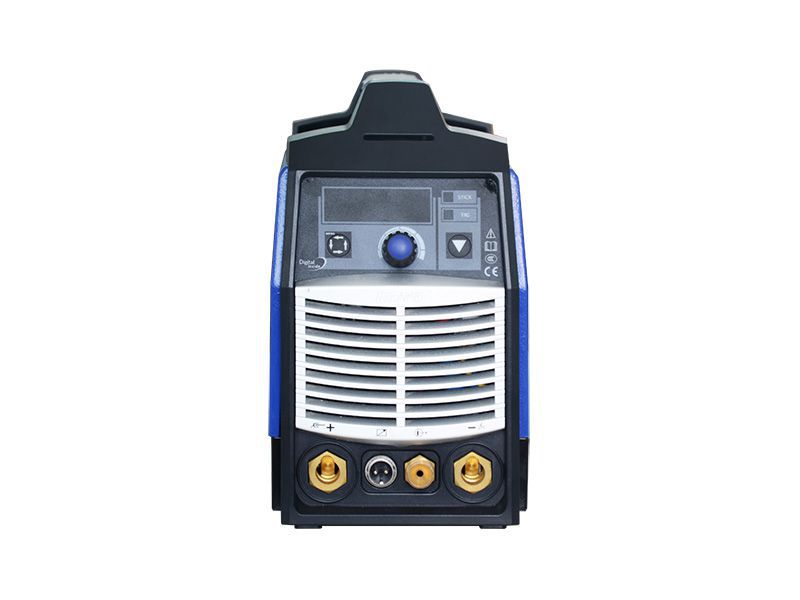

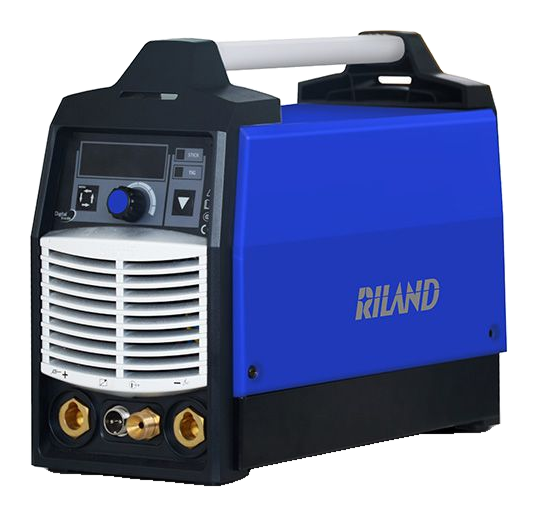

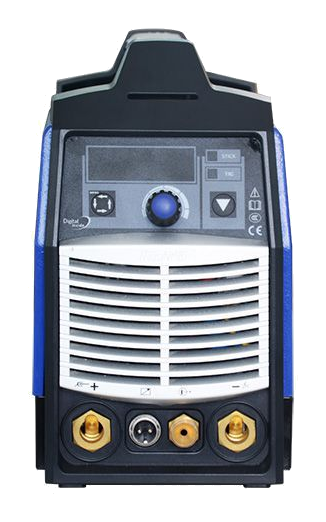

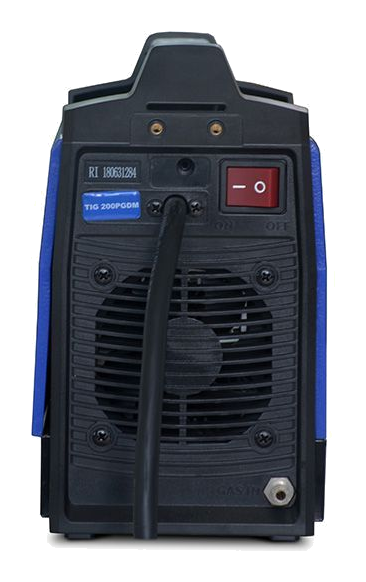

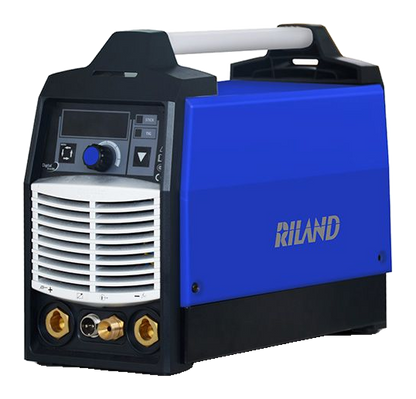

RILAND TIG 200PGDM HF DC TIG / STICK Welder
RILAND TIG 200PGDM HF DC TIG / STICK Welder
GST included. Shipping calculated at checkout.
SKU: TIG200PGDM
Available to order
Delivery options
Select your suburb for a delivery estimate. Additional courier options are available at checkout.
Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.
Buy with confidence
Delivery & pickupAvailable to order · Lead time varies
Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.
Australia-wide delivery. Available shipping options and costs are shown at checkout.
Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.
Returns & exchanges90 days for eligible unopened items
Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.
You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.
Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.
Warranty & supportProduct-specific warranty & support
Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.
For a fault or incorrect item, contact our team with your order details and a description of the issue.
Need help choosing?
Call our Smithfield team for product advice and compatibility checks.
Take a closer look
Product information
Details
The RILAND TIG 200PGDM welder utilizes advanced digital IGBT inverter technology to deliver high-performance TIG welding with HF TIG, Lift TIG, and MMA modes. Its LED display provides clear parameter visibility, while TIG mode supports 2T and 4T functions plus adjustable pulse settings. The MMA mode includes an activatable VRD safety feature. A smart fan sleep mode runs only when needed, reducing dust accumulation and enhancing machine longevity.
- Digital IGBT inverter technology;
- High performance of TIG welding, available in HF TIG, Lift TIG and MMA welding modes;
- LED display clearly shows all parameters;
- TIG welding mode has functions of 2T (two-touch), 4T (four-touch) and adjustable pulse parameters;
- When comes to MMA welding mode, VRD function can be activated;
- Smart "sleep mode" of the fan enables it to run when necessary, efficiently reducing dust inside the welder;
PACKAGE INCLUDES:
- 4m 26 Tig Gun
- 4m Arc Leads
- 4m Earth Leads
- Regulator
- Gas Hose
| Model | TIG 200PGDM |
| Primary input voltage | 230 V, single-phase |
| Input voltage tolerance | ±15% |
| Input frequency (Hz) | 50/60 |
| Rated input current (A) | 29.2 |
| Output current (A) | 15–200 (TIG) 30–160 (MMA) |
| Rated working voltage (V) | 18 (TIG) 26.4 (MMA) |
| Open circuit voltage (V) | U0=56 (TIG/MMA) Ur=17 (MMA) |
| TIG duty cycle at 40°C | 25% at 200 A; 100% at 100 A |
|---|---|
| Stick duty cycle at 40°C | 30% at 160 A; 100% at 90 A |
| Arc starting | High frequency / Lift arc ignition |
| Efficiency (%) | 80 |
| Power factor | 0.73 |
| Insulation class | Class F |
| Protection class | IP21S |
| Weight (kg) | 5.6 |
| Dimensions (mm) | 315 × 135 × 250 |
Machine specifications
| Supply plug | 15 A |
|---|
Machine specifications
| TIG ignition type | DC High-frequency; DC Lift arc |
|---|
