Take a closer look
Product information
Details
- Built-in trolley for flexibility
- Push-Pull gun ready for heavy-duty welding
- 4 geared wire drive system for the smoothest wire feeding experience
| MACHINE SPECIFICATIONS |
| Primary input voltage | 415 V, three-phase |
| Supply plug | Not fitted |
| Recommended supply plug | 32 A, three-phase |
| Ieff (A) | 12.6 |
| Imax (A) | 21.4 |
| Open circuit voltage (V) | 80 |
| Open circuit voltage with VRD active (V) | 13.5 |
| Protection class | IP23S |
| Insulation class | H |
| Minimum generator (kVA) | 20.0 |
| Dinse Connector | 35/50 |
| Standard | AS/NZ60974-1 |
| Warranty (years) | 5 |
| Weight (kg) | 45.1 |
| Dimensions (mm) | 977 × 480 × 753 |
| Suitable materials | MIG: Mild Steel, Stainless Steel, Aluminium, Silicone Bronze MMA: Mild Steel, Stainless Steel, Cast Iron TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze |
|
MIG SPECIFICATIONS
|
| MIG welding current range | 30–350 A |
| MIG duty cycle at 40°C | 40% at 350 A; 60% at 285 A; 100% at 221 A |
| MIG wire size range | 0.6–1.2 mm |
| MIG wire spool size | 5kg (D200) 15kg (D300) |
| MIG welding thickness range | 1–16 mm |
| Drive Roller Size | 37/24 |
|
TIG SPECIFICATIONS
|
| TIG ignition type | DC Lift arc |
| TIG welding current range | 20–350 A |
| TIG duty cycle at 40°C | 40% at 350 A; 60% at 285 A; 100% at 221 A |
| TIG welding thickness range | 1–10 mm |
|
MMA SPECIFICATIONS
|
| Stick welding current range | 20–350 A |
| Stick duty cycle at 40°C | 40% at 350 A 60% at 285 A; 100% at 221 A |
| Stick electrode range | 2.5–4 mm |
| Stick welding thickness range | 2–16 mm |

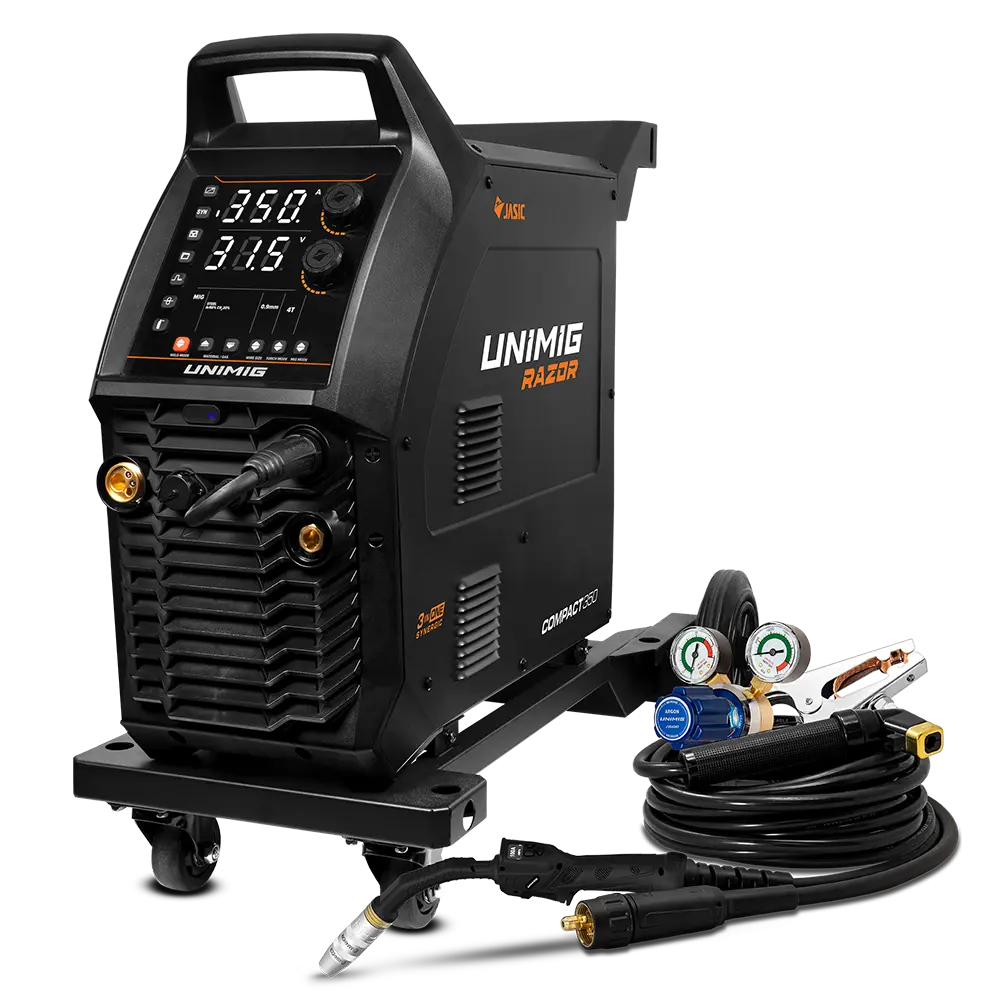

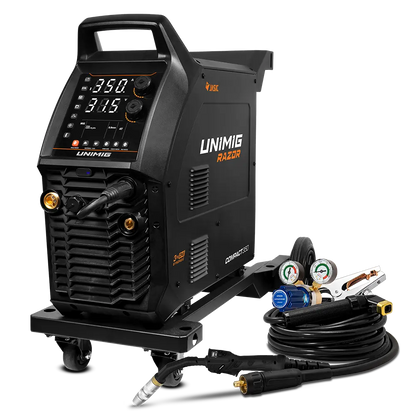

Package Contents (U11218):
- RAZOR COMPACT 350 Welder
- 4m M350 Digital MIG Torch
- 4m Twist Lock Electrode Holder
- 4m 500A Earth Clamp & Lead
- Twin Gauge Argon Regulator
- 1.8m Quick-Connect Gas Hose
- Operating Manual
- 2 x 0.8-0.9mm V Groove Rollers
- 2 x 1.0-1.2mm V Groove Rollers
- 2 x 0.8-0.9mm F Groove Rollers
- 2 x 1.0-1.2mm F Groove Rollers
- 4 x 1.0-1.2mm U Groove Rollers
