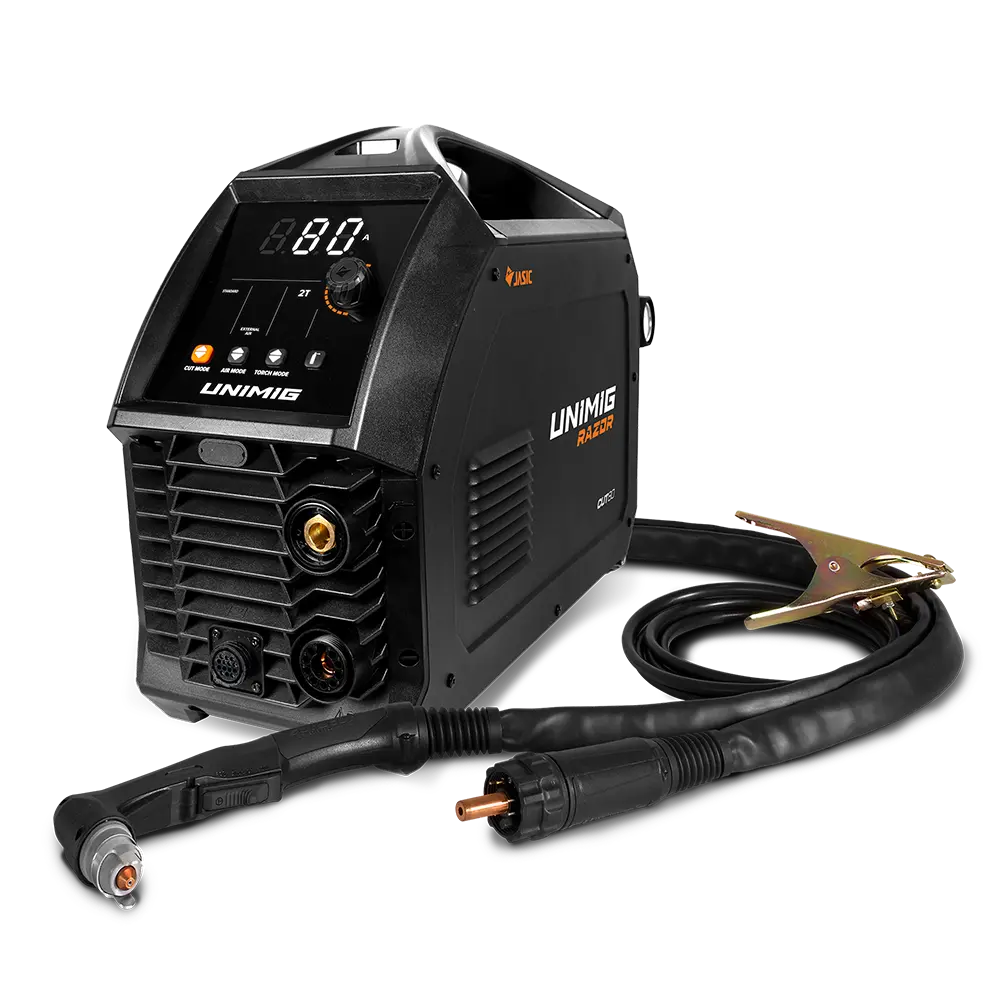

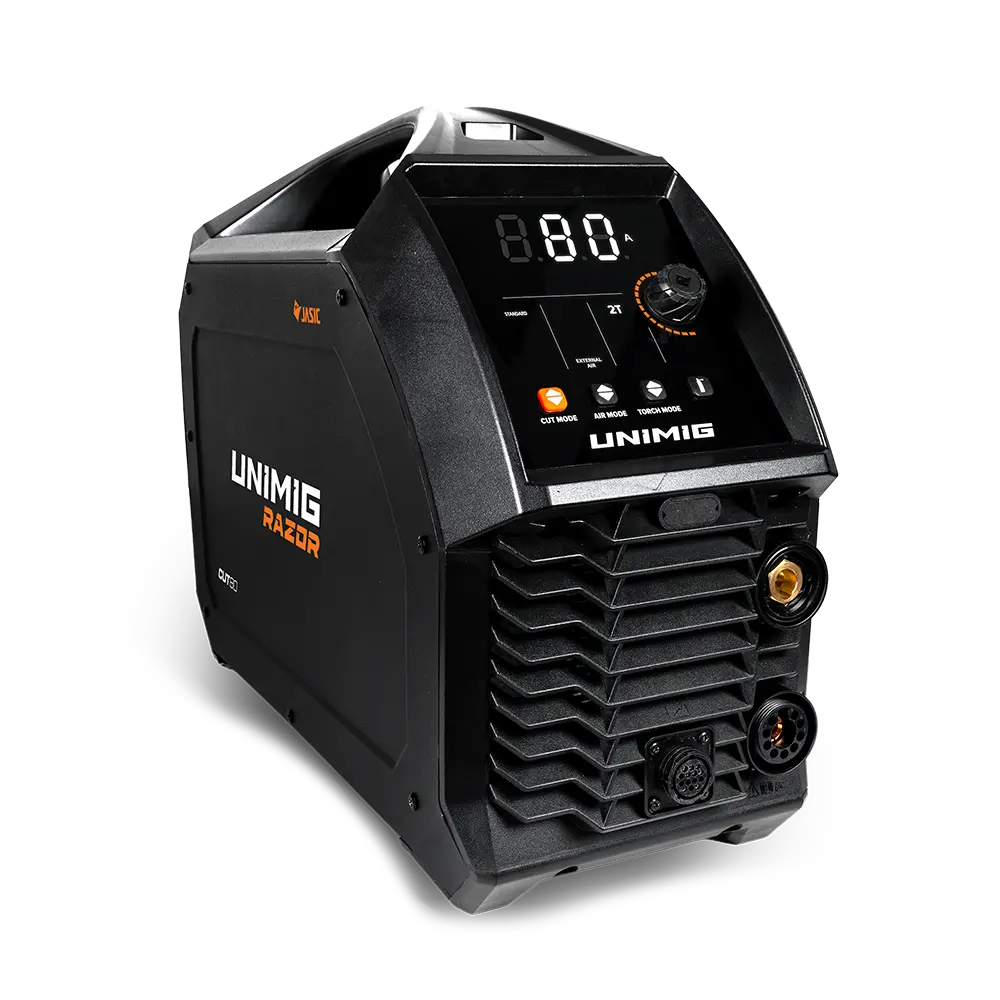

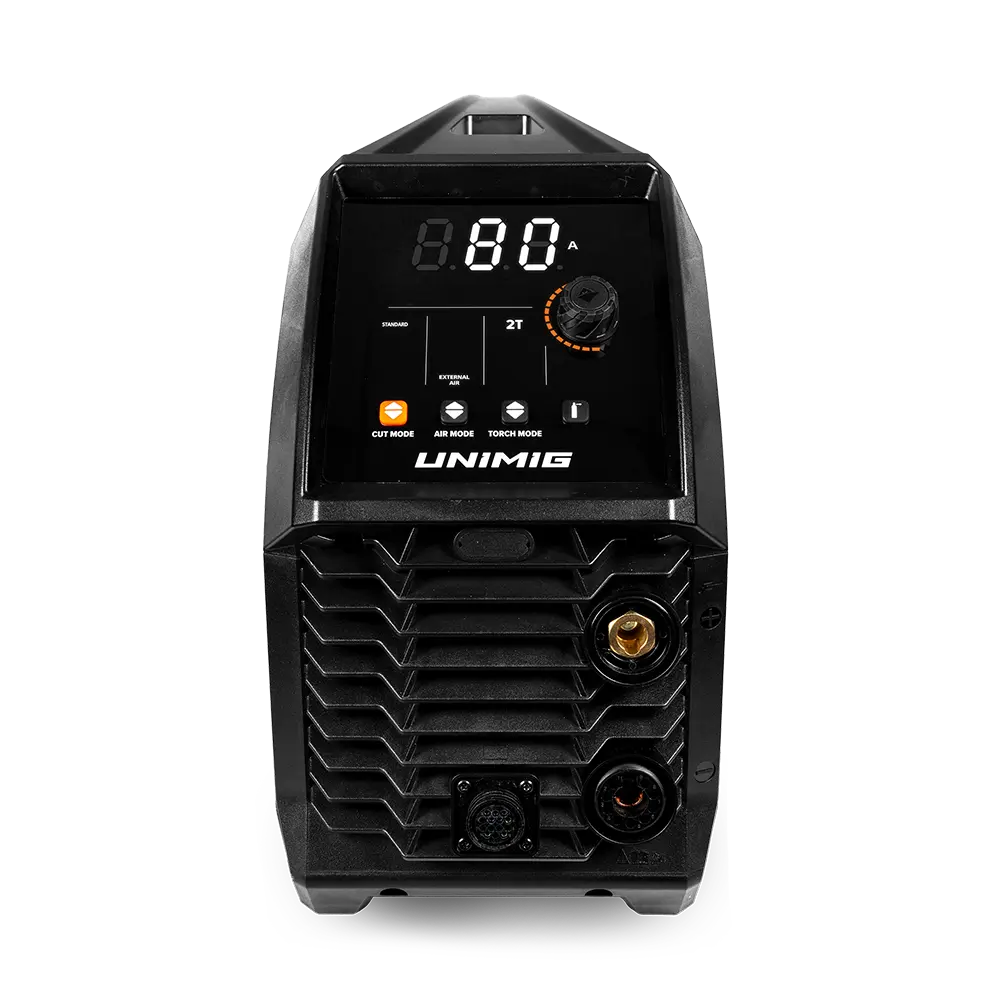

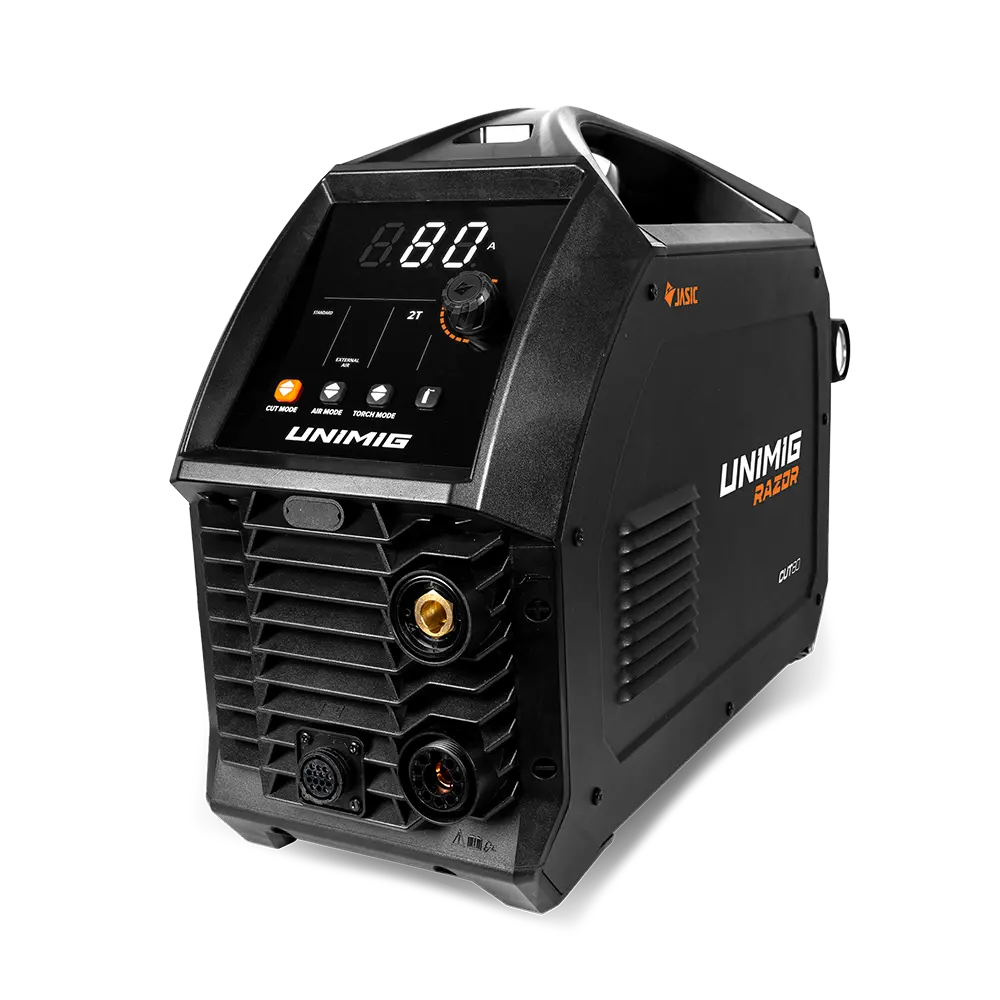

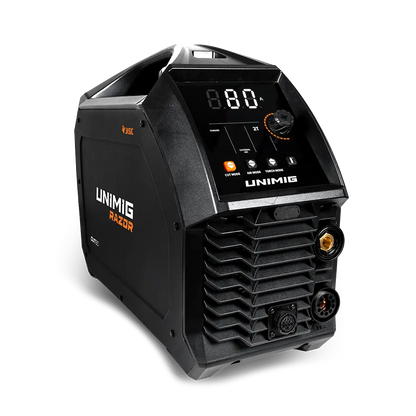

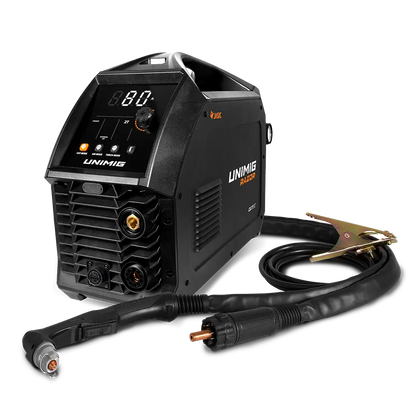

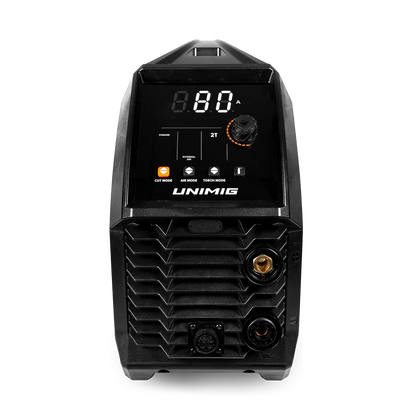

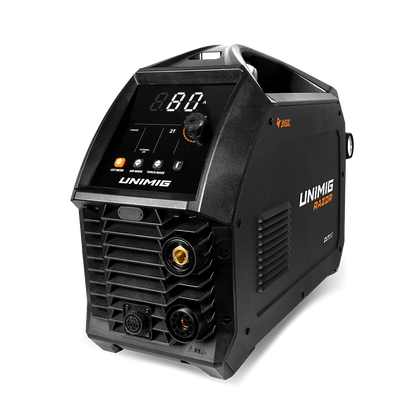

UNIMIG RAZOR CUT 80 Plasma Cutter U11023
UNIMIG RAZOR CUT 80 Plasma Cutter U11023
GST included. Shipping calculated at checkout.
SKU: U11023
Available to order
Delivery options
Select your suburb for a delivery estimate. Additional courier options are available at checkout.
Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.
Buy with confidence
Delivery & pickupAvailable to order · Lead time varies
Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.
Australia-wide delivery. Available shipping options and costs are shown at checkout.
Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.
Returns & exchanges90 days for eligible unopened items
Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.
You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.
Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.
Warranty & supportProduct-specific warranty & support
Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.
For a fault or incorrect item, contact our team with your order details and a description of the issue.
Need help choosing?
Call our Smithfield team for product advice and compatibility checks.
Take a closer look
Product information
Details
- 30mm clean cuts and 35mm cutting capacity
- The CNC connection means you can use this machine for every kind of plasma application
- Cut anything with the perforated cut mode
| MACHINE SPECIFICATIONS |
| Primary input voltage | 415 V, three-phase |
| Supply plug | Not fitted |
| Recommended supply plug | 20 A, three-phase |
| Ieff (A) | 13.0 |
| Imax (A) | 19.0 |
| Plasma air requirement | 120–150 |
| Plasma operating air pressure | 58–73 psi; 4–5 bar; 0.4–0.5 MPa |
| Open circuit voltage (V) | 325 |
| Protection class | IP23S |
| Insulation class | H |
| Minimum generator (kVA) | 18.0 |
| Dinse Connector | 35/50 |
| Standard | AS 60974.1 |
| Warranty (years) | 5 |
| Weight (kg) | 22 |
| Dimensions (mm) | 626 × 230 × 416 |
|
PLASMA CUT SPECIFICATIONS
|
| Plasma cutting current range | 20–80 A |
| Plasma duty cycle at 40°C | 40% at 80 A; 60% at 66 A; 100% at 51 A |
| Mild Steel Cut Thickness | 25 mm |
| Mild Steel Severance Thickness |
35 mm |
| Stainless Steel Cut Thickness |
22 mm |
| Stainless Steel Severance Thickness | 30 mm |
| Aluminium Cut Thickness |
22 mm |
| Aluminium Severance Thickness | 30 mm |
Package Contents (U11023)
- RAZOR CUT 80
- 6m SC80 Plasma Torch
- 3m 300A Earth Clamp
- Operating Manual
