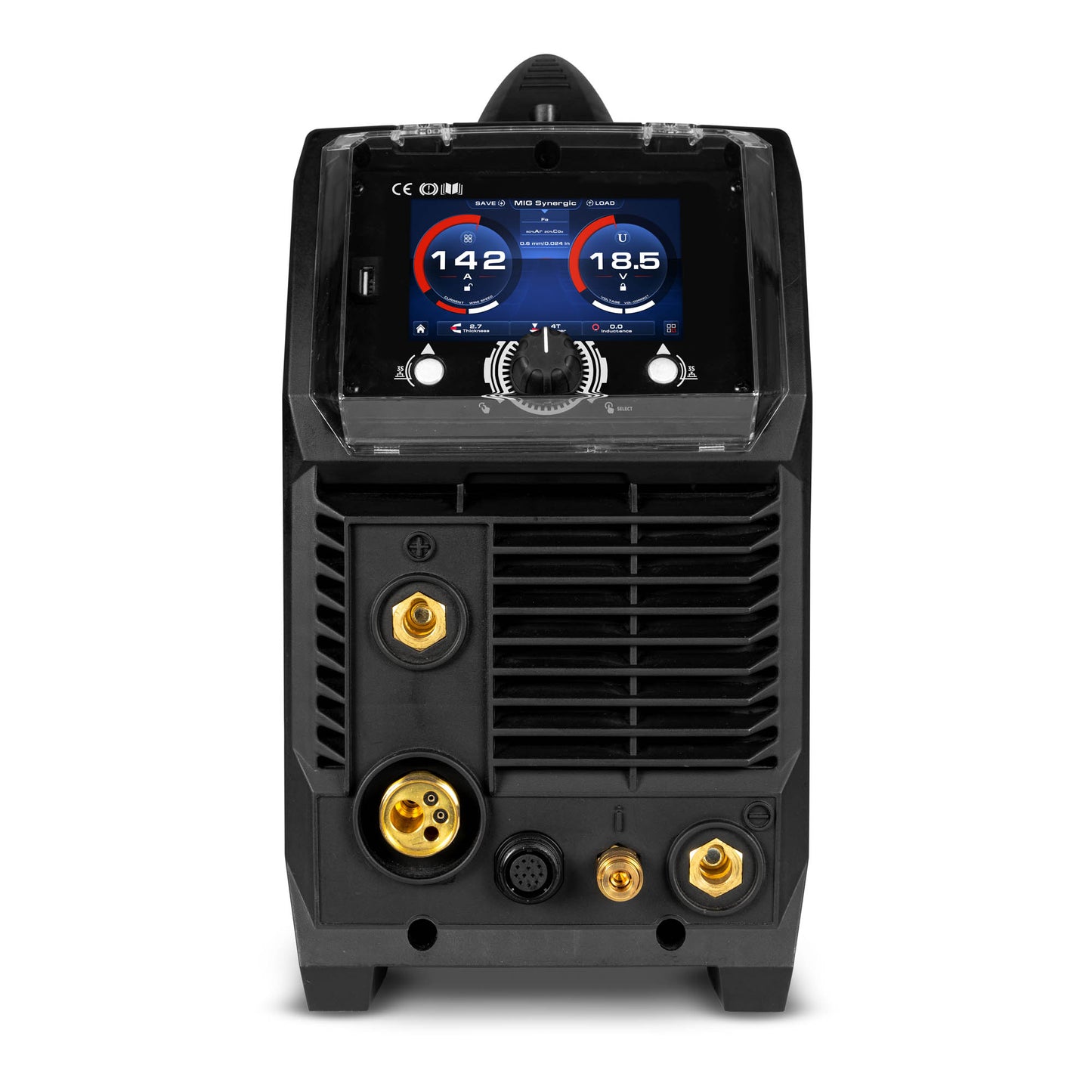

UNIMIG RAZOR MULTI 230 AC/DC MIG/TIG/STICK Welder

UNIMIG RAZOR MULTI 230 AC/DC MIG/TIG/STICK Welder

Regular price $2,395.00 AUD
Regular price $2,400.00 AUD Sale price $2,395.00 AUD
Sale Sold out
Shipping calculated at checkout.
FREE Delivery + FREE GIFT (gift selection will appear after adding to cart)
Selection

Our brand new RAZOR MULTI 230 AC/DC 4-in-1 is here. As the latest and greatest addition to our RAZOR line, this machine can do any kind of welding you need it to. MIG, High-Frequency AC & DC TIG, Pulse TIG, as well as STICK, no matter what you’ve got planned, the RAZOR MULTI 230 AC/DC can do it.

MACHINE SPECIFICATIONS
 Primary Input Voltage 240V Single Phase
Supply Plug 15 Amp (15A to 10A Conversion Lead Included)
Rated Input Power (kVA) 40A/16V-200A/24V
Ieff (A) 14.9
Rated Output 25A/15.3V-200A/24V (10A) 25A/15.3V-230A/25.5V (15A)
No Load Voltage (V) 77
Protection Class IP21
Insulation Class H
Minimum Generator (kVA) 8.5 (10A) / 10 (15A)
Dinse Connector 35/50
Standard AS/NZ60974-1
Suitable Material  Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
Warranty  3 years



 MIG SPECIFICATIONS
 MIG Welding Current Range 25-200A (10A) / 25-230A (15A)
MIG Duty Cycle @ 40c  10% @ 200A, 60% @ 81A, 100% @ 63A (10A) / 25% @ 230A, 60% @ 187A, 100% @ 145A (15A)
MIG Wire Size Range 0.6-1.0mm
MIG Wire Spool Size 100mm/200mm
MIG Welding Thickness Range 1-10mm
Drive Roller Size 30/22



TIG SPECIFICATIONS
 TIG Function Type AC/DC High Frequency
TIG Welding Current Range 10-200A
TIG Duty Cycle @ 40c 25% @ 200A, 60% @ 130A, 100% @ 100A (10/15A)
TIG Welding Thickness Range 1-8mm



 STICK SPECIFICATIONS
STICK Welding Current Range 10-200A
STICK Duty Cycle @ 40c 10% @ 200A, 60% @ 81A, 100% @ 63A (10A) / 25% @ 200A, 60% @ 130A, 100% @ 100A (15A)
STICK Electrode Range 2.5-4.0mm
STICK Welding Thickness Range 2-12mm
ARC Force 0-100%



SIZE AND WEIGHT
 DIMENSIONS (mm) 660x210x330mm
Weight (kg) 20kg



MACHINE FEATURES
 Wire Drive Geared
VRD Yes
Spool Gun Connection Yes
Foot-Control Connection Wired & Wireless
Burnback Adjustment Yes
Wire Inch Yes
Inductance Control Yes
Crater Current Control Yes
Thermal Overload Protection  Yes

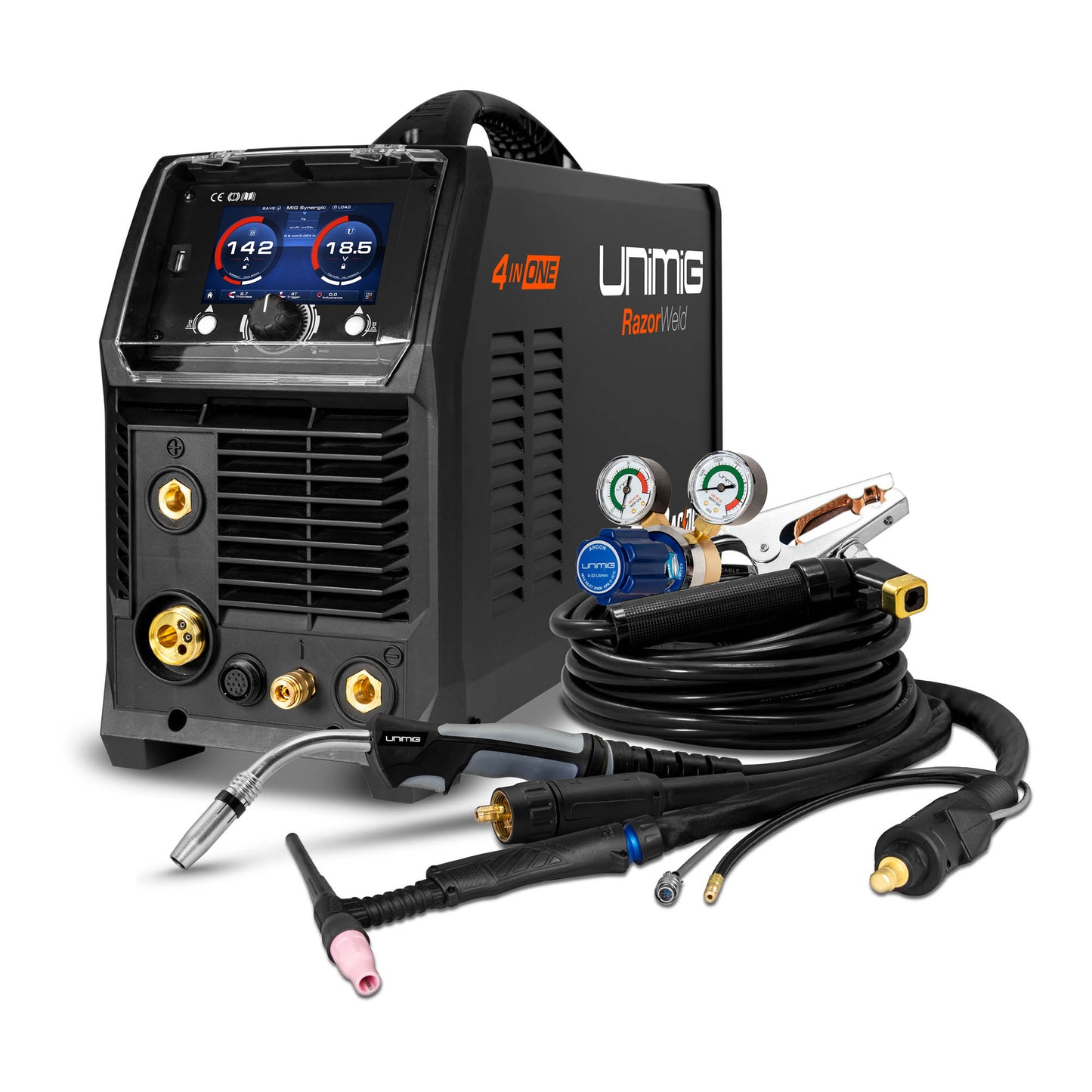

Package Contents (U11004K):

  • RAZOR MULTI 230 AC/DC MIG/TIG/STICK Welder
  • 4m SB24 MIG Torch
  • 4m ARC TORCHOLOGY T2 TIG Torch
  • 3m Twist Lock Electrode Holder
  • 3m 300 Amp Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • 2m Quick-connect Gas Hose
  • 15A to 10A Conversion Lead

Bundle Contents (PK11088):

  • RAZOR MULTI 230 AC/DC MIG/TIG/STICK Welder
  • 4m SB24 MIG Torch
  • 4m ARC TORCHOLOGY T2 TIG Torch
  • 3m Twist Lock Electrode Holder
  • 3m 300 Amp Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • 2m Quick-connect Gas Hose
  • 15A to 10A Conversion Lead
  • Operating Manual
  • Professional Series Welding Helmet - Demon
  • ROGUE Heavy Duty Welding Gloves
  • BINZEL 24 Style Consumable Starter Kit
  • T2 TIG Torch Consumable Starter Kit
  • Argon Flowmeter
