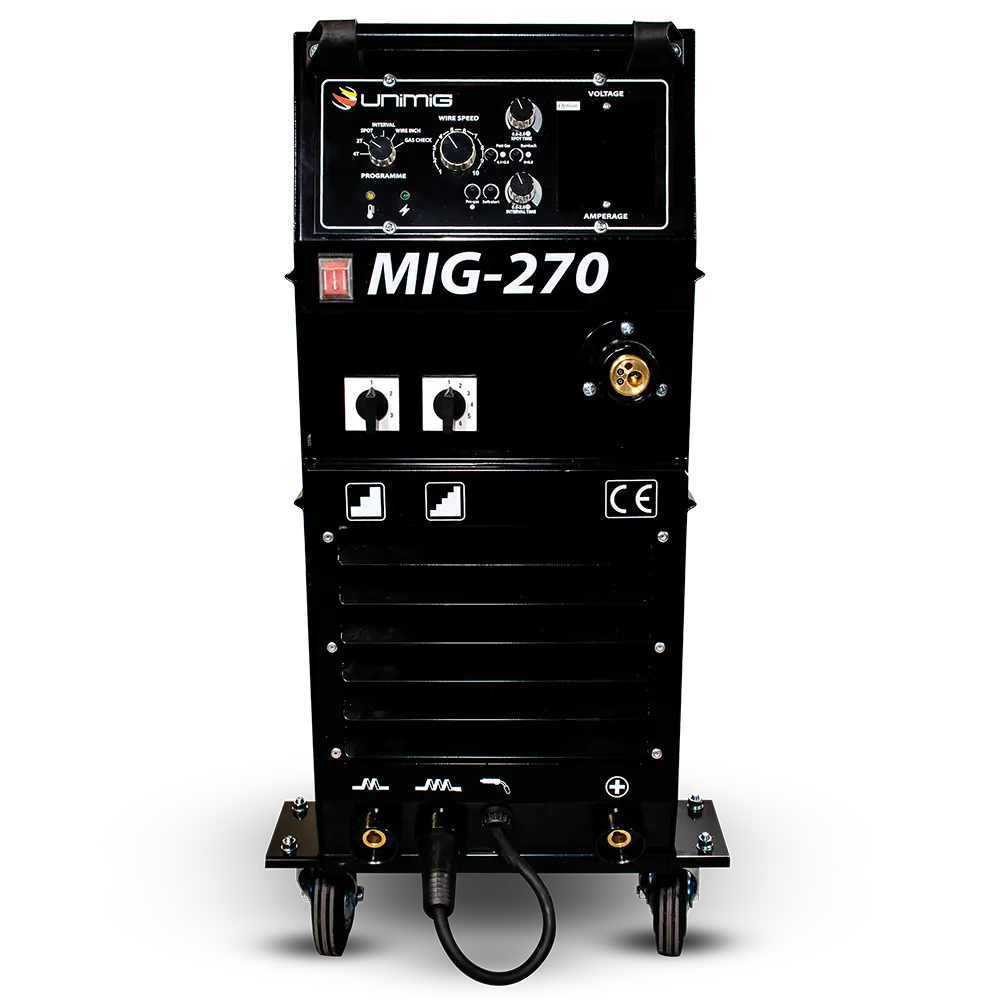

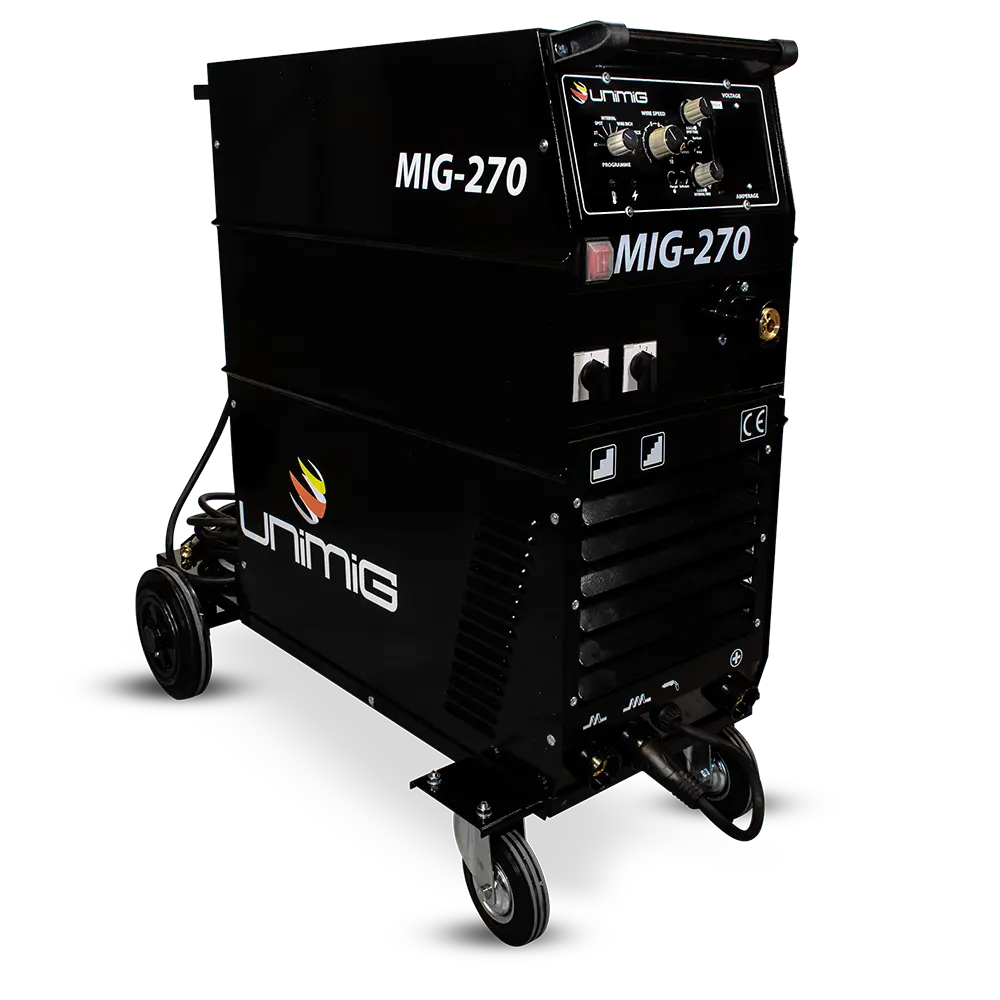

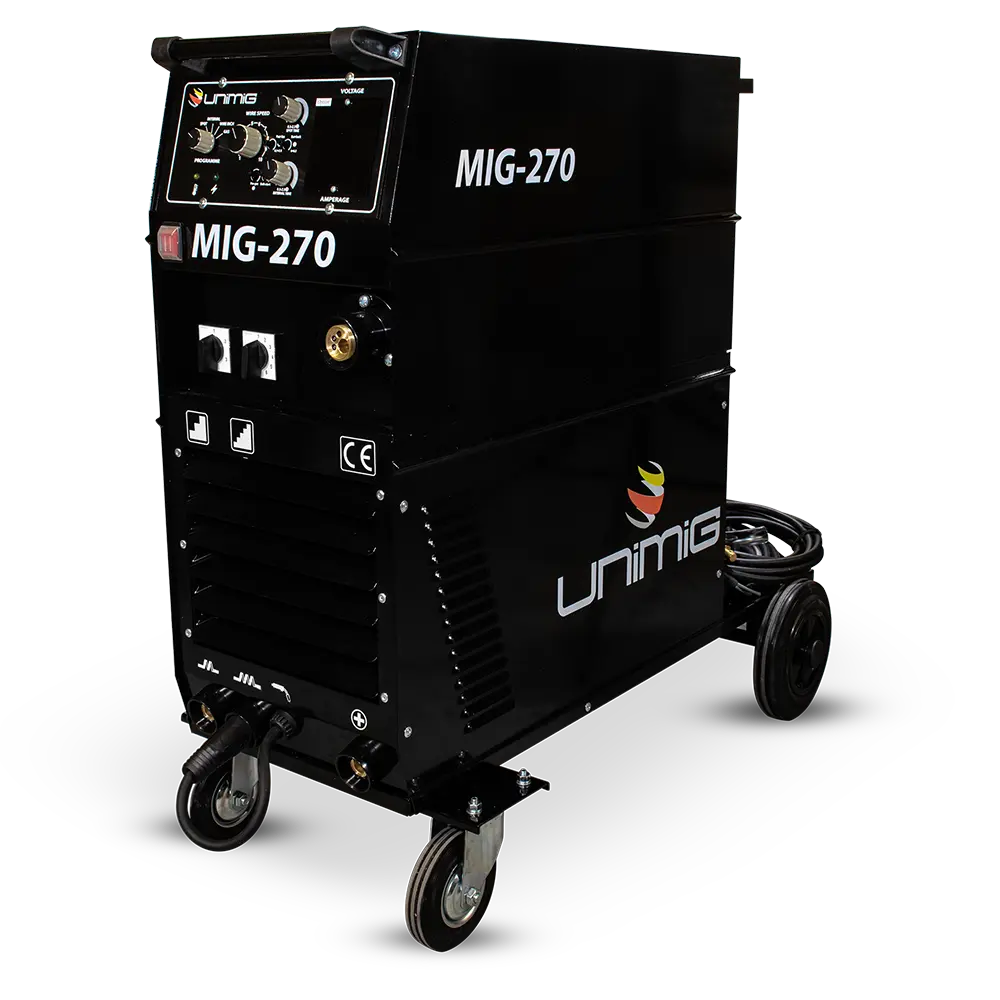

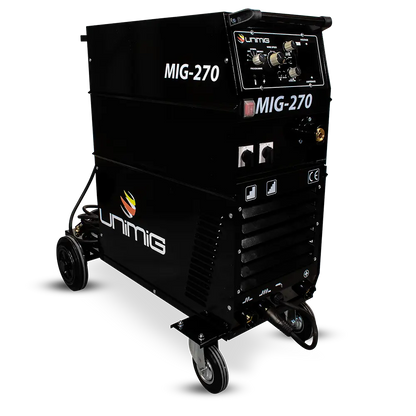

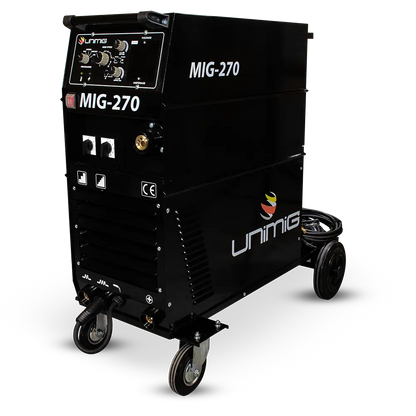

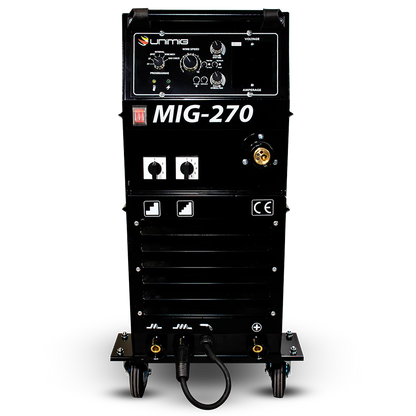

UNIMIG Workshop 270 Welder (KUM270) is a heavy-duty transformer-based MIG machine engineered for medium to heavy fabrication environments. Built for durability and reliability, this machine delivers serious power with smooth arc control under demanding conditions.
Key Features
- Steady transformer power supply for tough workshop conditions
- 21-step voltage selector for precise welding parameters
- Four-geared wire-drive roller system for consistent wire feed
- Capable of gas or gasless MIG on mild steel, aluminium and stainless
- Heavy-duty construction with high-capacity cooling system
In the Box
- Workshop 270 Welder (KUM270)
- 4 m SB24 MIG Torch
- 4 m 300 Amp Earth Clamp & Lead
- Twin Gauge Argon Regulator
- 2 m Gas Hose with fittings
- Operating Manual
- 2 × 0.9–1.2 mm V-Groove Rollers
| MACHINE SPECIFICATIONS | |
| Primary input voltage | 240 V, single-phase |
| Supply plug | Not fitted |
| Recommended supply plug | 32 A, single-phase |
| Ieff (A) | 39.0 |
| Protection class | IP21 |
| Insulation class | F |
| Minimum generator (kVA) | 13.0 |
| Dinse Connector | 35/50 |
| Standard | AS 60974.1 |
| Warranty (years) | 3 |
| Weight (kg) | 116 |
| Dimensions (mm) | 870 × 940 × 460 |
| Suitable materials | MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze |
| MIG SPECIFICATIONS | |
| MIG welding current range | 30–250 A |
| MIG duty cycle at 40°C | 70% at 250 A, 100% at 200 A |
| MIG wire size range | 0.6–1.2 mm |
| MIG wire spool size | 5kg (D200); 15kg (D300) |
| MIG welding thickness range | 1–16 mm |
| Drive Roller Size | 40/32 |
