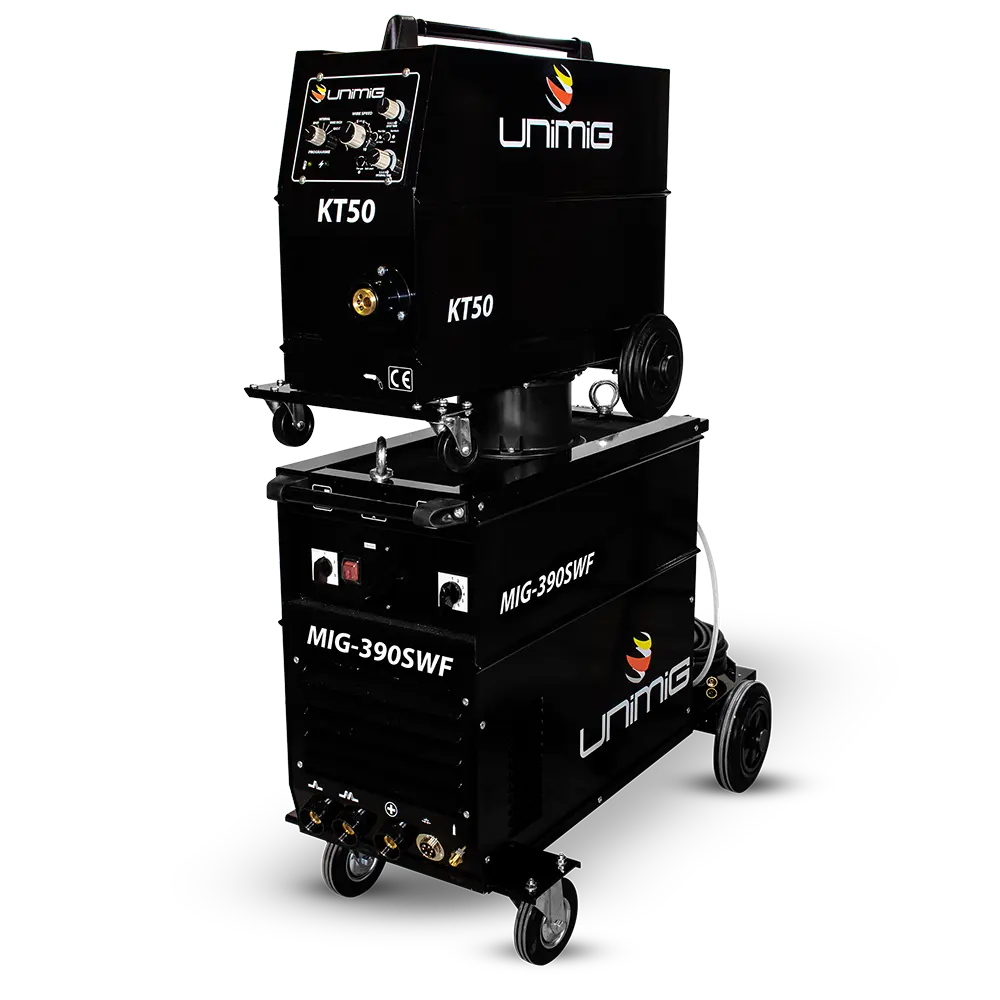

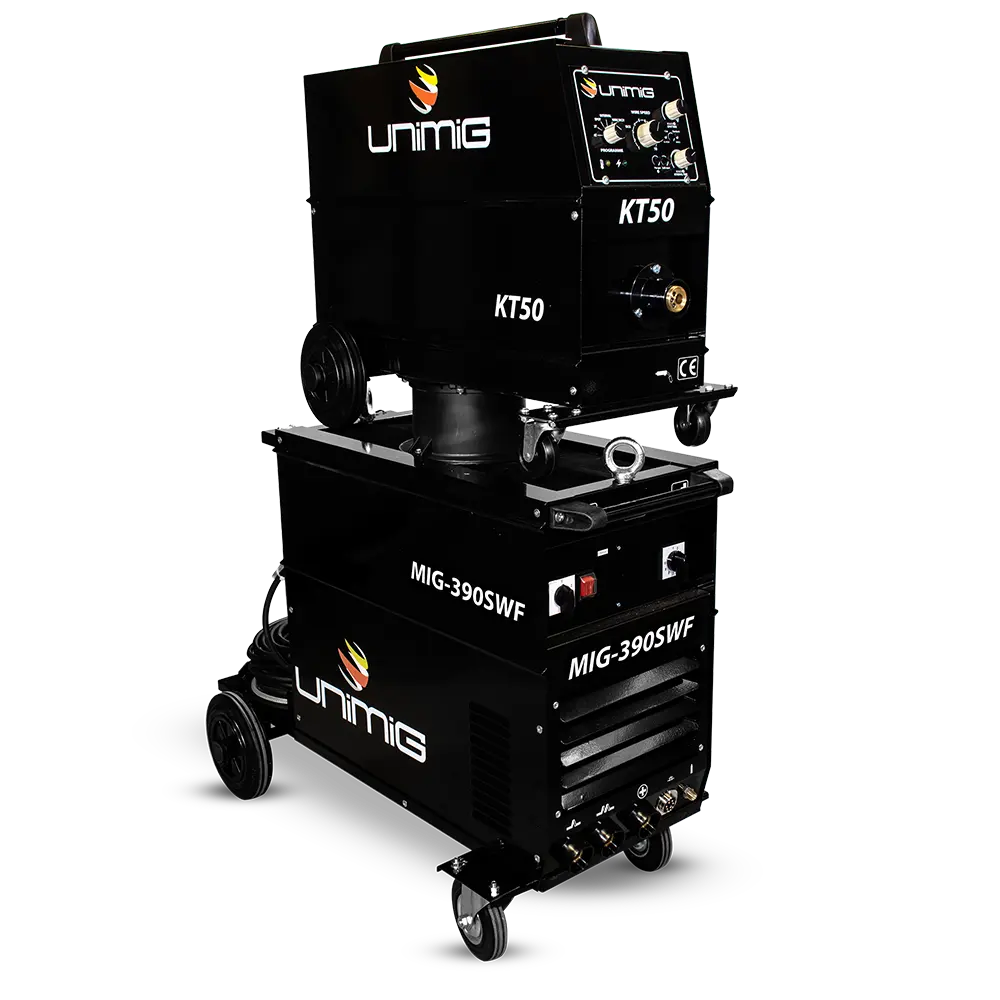

UNIMIG WORKSHOP 390 Dual Voltage Welder KUM390S/D

UNIMIG WORKSHOP 390 Dual Voltage Welder KUM390S/D

$6,434.00 AUD
$6,434.00 AUD
Sale Sold out
Shipping calculated at checkout.

KUM390S/D

In stock

UNIMIG Workshop 390 SWF Dual Voltage (KUM390S/D) is a high-output industrial MIG system designed for workshops needing both 240V and 415V flexibility. With a KT50 SWF wire feeder, 10m interconnecting cables and a heavy-duty drive system, it provides stable wire delivery for structural fabrication, production work and long-duration welding across a wide amperage range.

In the Box

  • WORKSHOP 390 SWF Dual Voltage Welder
  • KT50 SWF Unit
  • 10m Interconnecting Cables
  • 4m SB36 MIG Torch
  • 10m 500A Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • 2m Gas Hose (Complete with fittings)
  • Operating Manual
  • 2 × 0.9–1.2 mm V Groove Rollers
MACHINE SPECIFICATIONS
Primary Input Voltage Dual Voltage: 240V Single-Phase / 415V Three-Phase
Supply Plug Unplugged (32A Recommended)
Ieff (A) 19.0
Protection Class IP21
Insulation Class F
Minimum Generator (kVA) 19.0
Dinse Connector 35/50
Standard AS 60974.1
Warranty 3 Years
Weight (kg) 140.00
Dimensions (LxWxH) 980 × 660 × 460mm
Suitable Materials MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze



MIG SPECIFICATIONS
MIG Current Range 30–350A
MIG Duty Cycle @ 40°C 40% @ 375A, 70% @ 355A, 100% @ 300A
MIG Wire Sizes 0.6–1.6mm
MIG Wire Spool Sizes 5kg (D200), 15kg (D300)
MIG Welding Thickness Range 1–20mm
Drive Roller Size 40/32
