UNIMIG

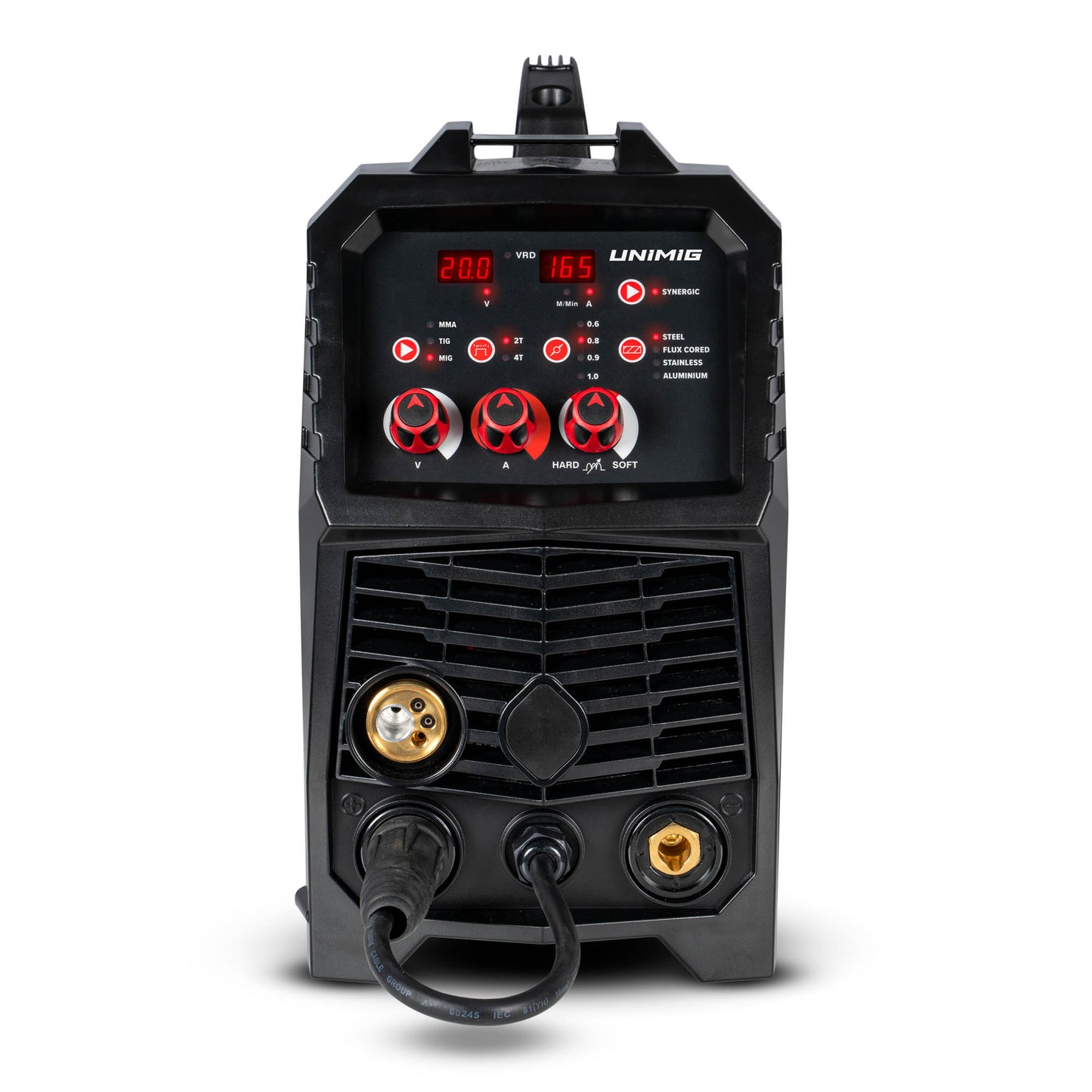

VIPER MULTI 165 MIG/TIG/STICK Welder

VIPER MULTI 165 MIG/TIG/STICK Welder

$749.00 AUD
$749.00 AUD
Sale Sold out
Shipping calculated at checkout.

U11006K

Low stock: 1 left

Get greater control over your welds with the VIPER MULTI 165. This multi-process MIG, TIG and STICK machine comes ready with synergic programs, as well as a number of settings — like Inductance — that gives you complete control over your arc.

MACHINE SPECIFICATIONS
 Primary Input Voltage 240V Single Phase
Supply Plug 10 Amp
Ieff (A) 10.0
Rated Output 30A/15.5V - 165A/22.3V
No Load Voltage (V) 64
Protection Class IP21S
Insulation Class H
Minimum Generator (kVA) 9.0
Dinse Connector 35/50
Standard AS/NZ60974-1
Suitable Material  Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
Warranty  2 years



MIG SPECIFICATIONS
MIG Welding Current Range 30-165A
MIG Duty Cycle @ 40c
 10% @ 165A / 60% @ 68A / 100% @ 52A
MIG Wire Size Range
 0.6-1.0mm
MIG Wire Spool Size
 1kg / 5kg
MIG Welding Thickness Range 1-8mm
Drive Roller Size 30/10



TIG SPECIFICATIONS
TIG Function Type
 DC Lift Arc
TIG Welding Current Range
 20-160A
TIG Duty Cycle @ 40c
 10% @ 160A / 60% @ 65A / 100% @ 50A
TIG Welding Thickness Range
 1-6mm



 STICK SPECIFICATIONS
STICK Welding Current Range 20-140A
STICK Duty Cycle @ 40c 10% @ 140A / 60% @ 58A / 100% @ 45A
STICK Electrode Range 2.5-3.2mm
STICK Welding Thickness Range 2-8mm



SIZE AND WEIGHT
 DIMENSIONS (mm) 513x206x391mm
Weight (kg) 9.8kg



MACHINE FEATURES
Wire Drive
 Standard
VRD Yes
Wire Inch

Yes
Thermal Overload Protection Over Temperature Warning
Inductance Control Yes

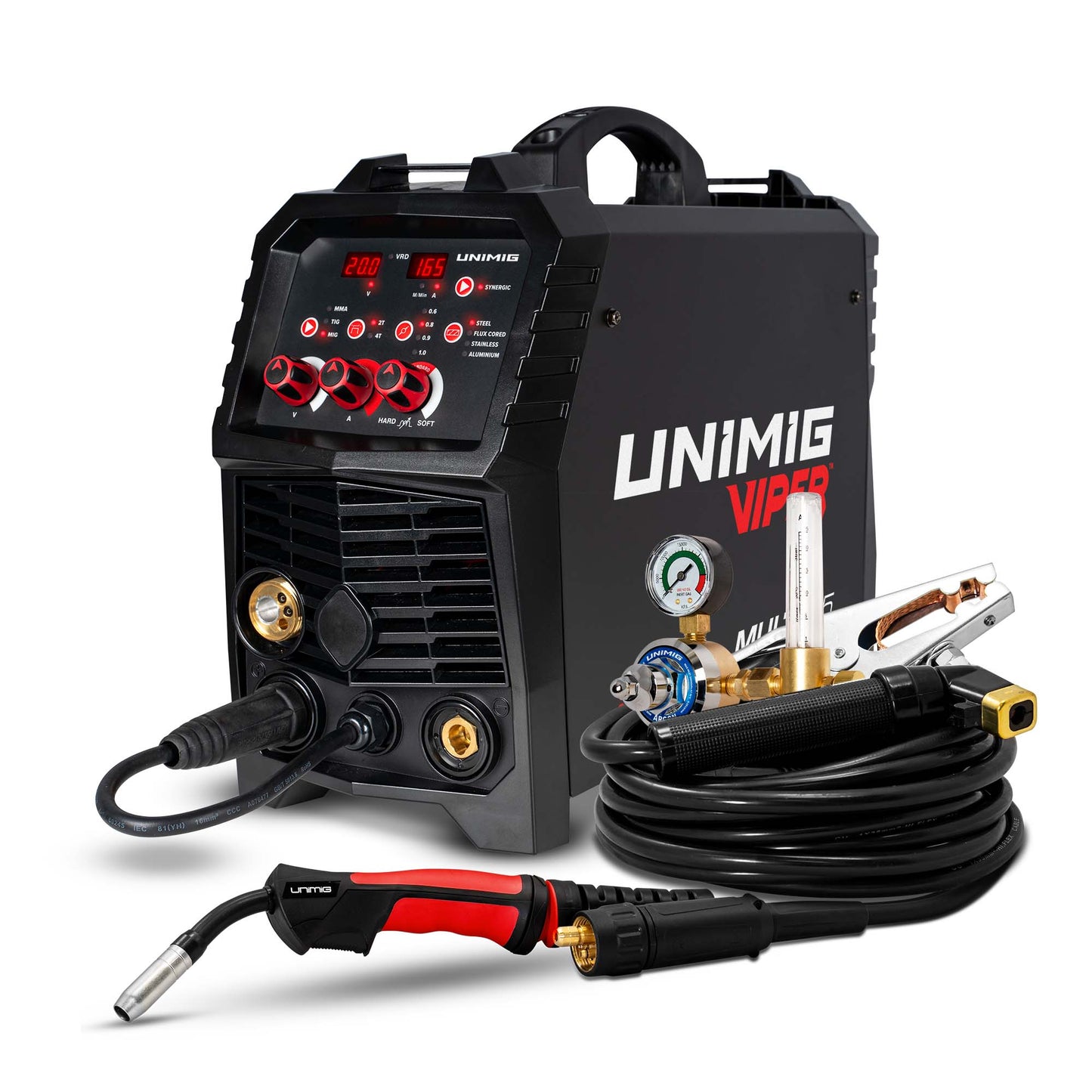

 Base Package (U11006K):

  • VIPER MULTI 165 MIG/TIG/STICK Welder
  • 3m SB15 MIG Torch
  • 3m Twist Lock Electrode Holder
  • 300 Amp Earth Clamp & Lead
  • Argon Flowmeter
  • 2m Gas Hose Complete with fittings
  • Operating Manual



  • Customer Promise
  • Price Match
