DRILLMATE PORTABLE DRILL PRESS

DRILLMATE Portable Drill Press Frames & Accessories help apply controlled, even feed pressure when drilling with compatible electric, battery or air drills.

Important: This listing contains three different product types: drill press frames, mounting kits and mini cutter sets. Each option is sold separately. Follow the steps below before selecting a variant.

Key Features

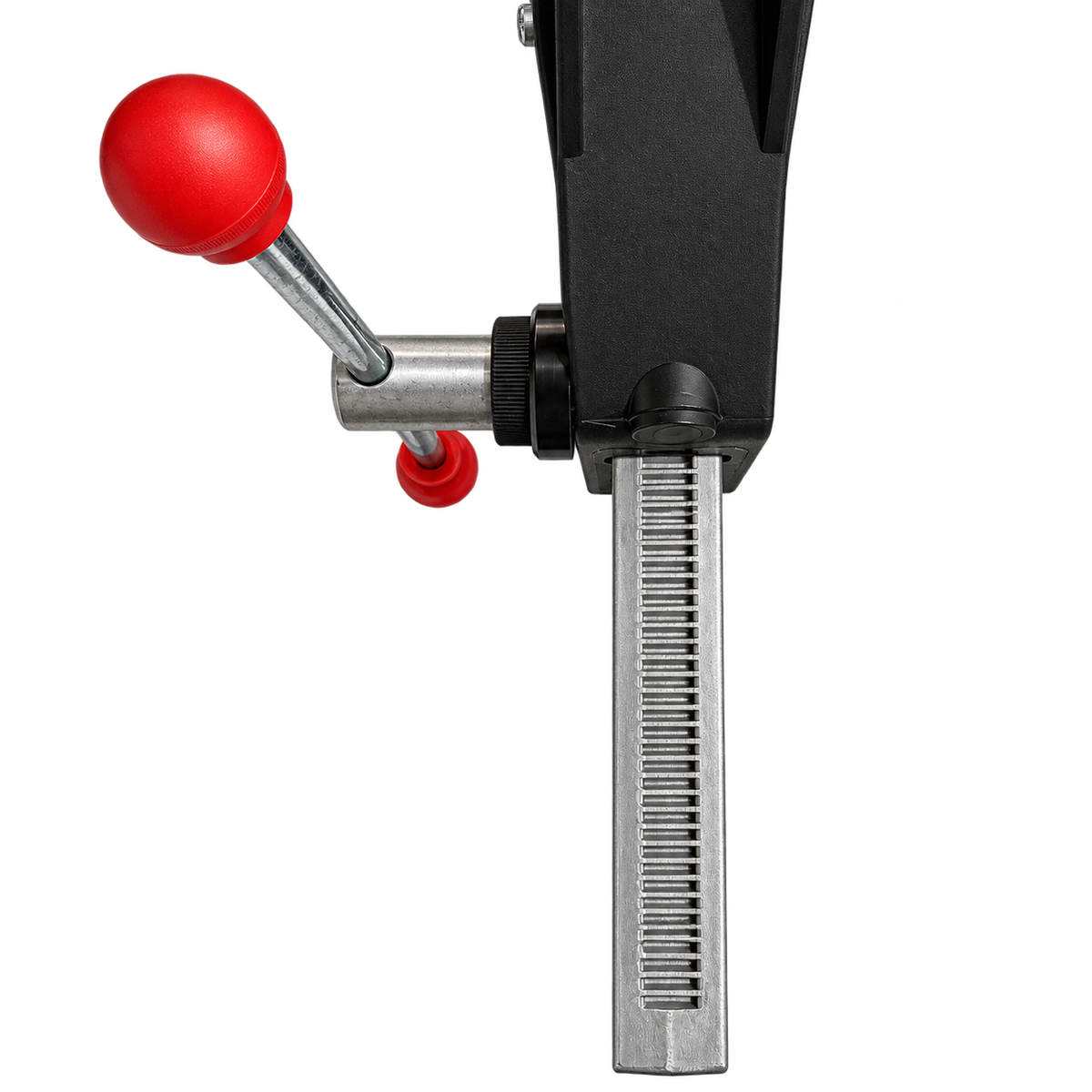

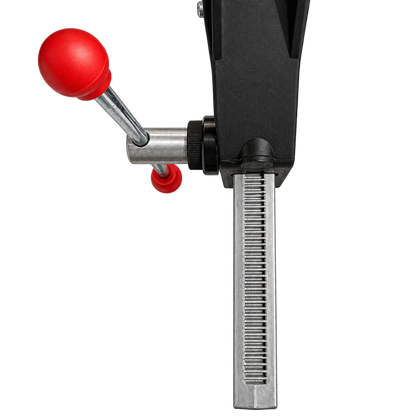

• 14:1 force ratio helps reduce operator effort
• Provides controlled pressure at the drill bit or cutter
• Suitable setups are available for drill bits, holesaws and annular cutters

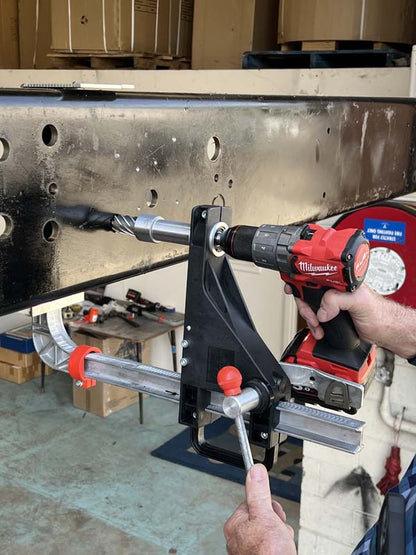

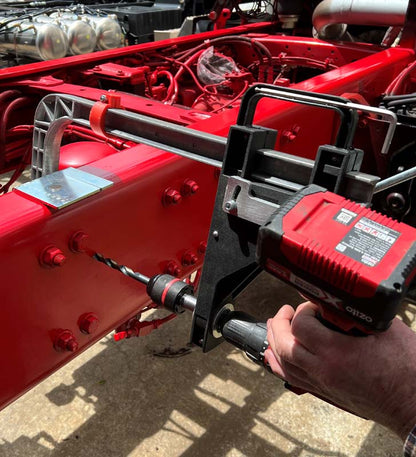

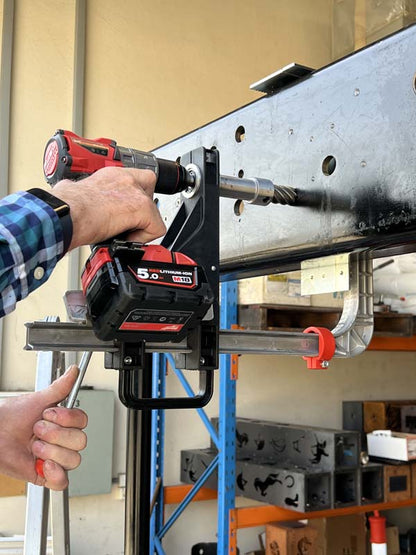

• Portable design for workshop and on-site drilling

Variants & Compatibility

Step 1 – Check Your Drill Collar

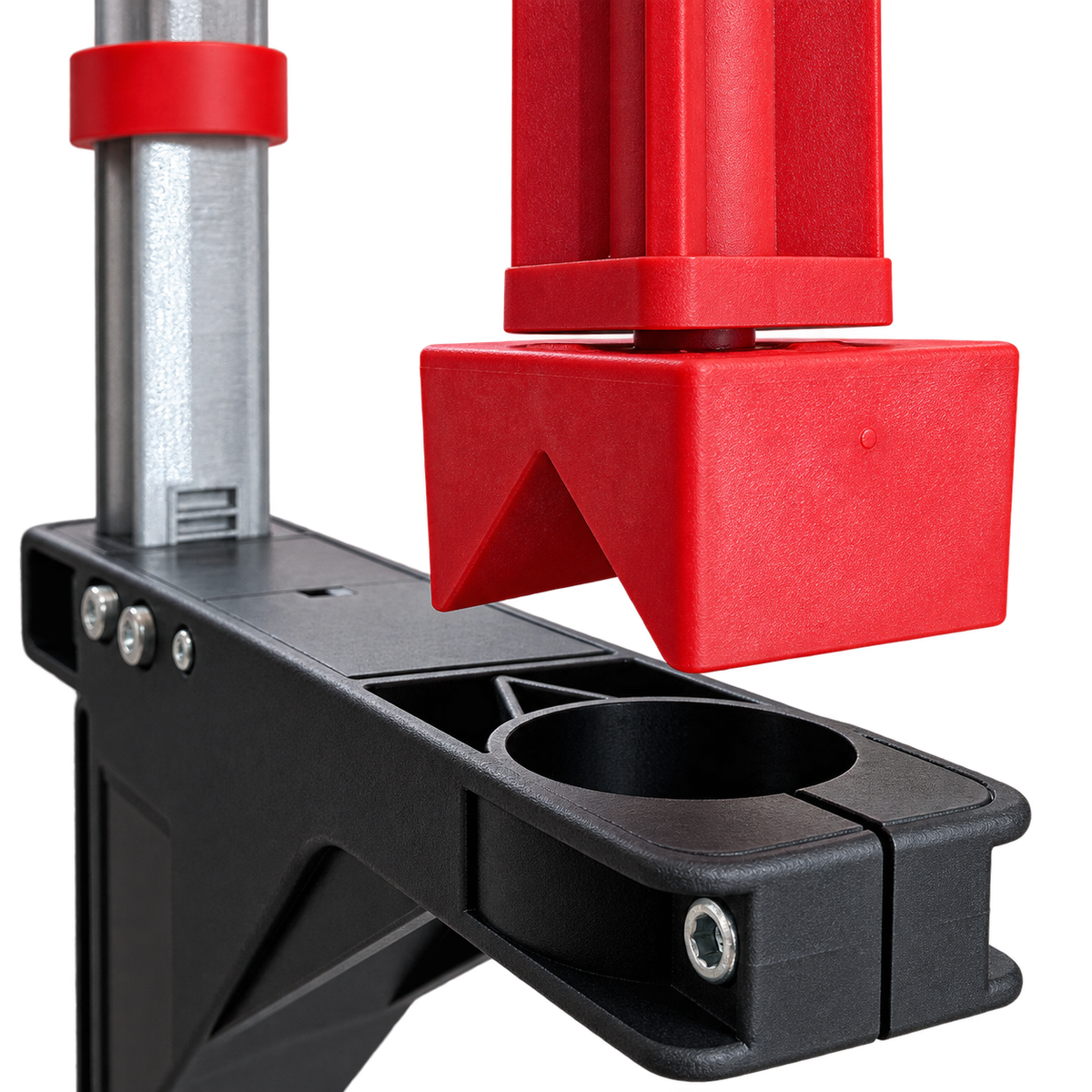

• The collar is the round section immediately behind the drill chuck.
• Measure its diameter and confirm that it has enough straight, parallel surface for the frame to clamp securely.
• A tapered, obstructed or very short collar cannot be clamped directly, even if its diameter is correct.

Step 2 – Choose a Frame

• 43mm straight, clampable collar: choose the DM100 frame.
• 44mm, 45mm or 46mm straight, clampable collar: choose the DM100A frame. Its four-colour shim kit accommodates 43mm, 44mm, 45mm and 46mm collars.
• Tapered or non-clampable collar: choose the DM100 frame plus the appropriate mounting kit from Step 3.

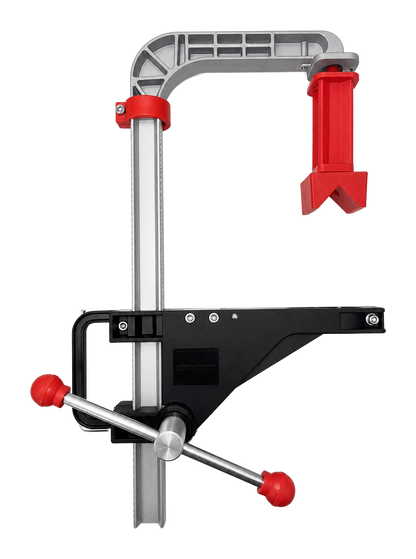

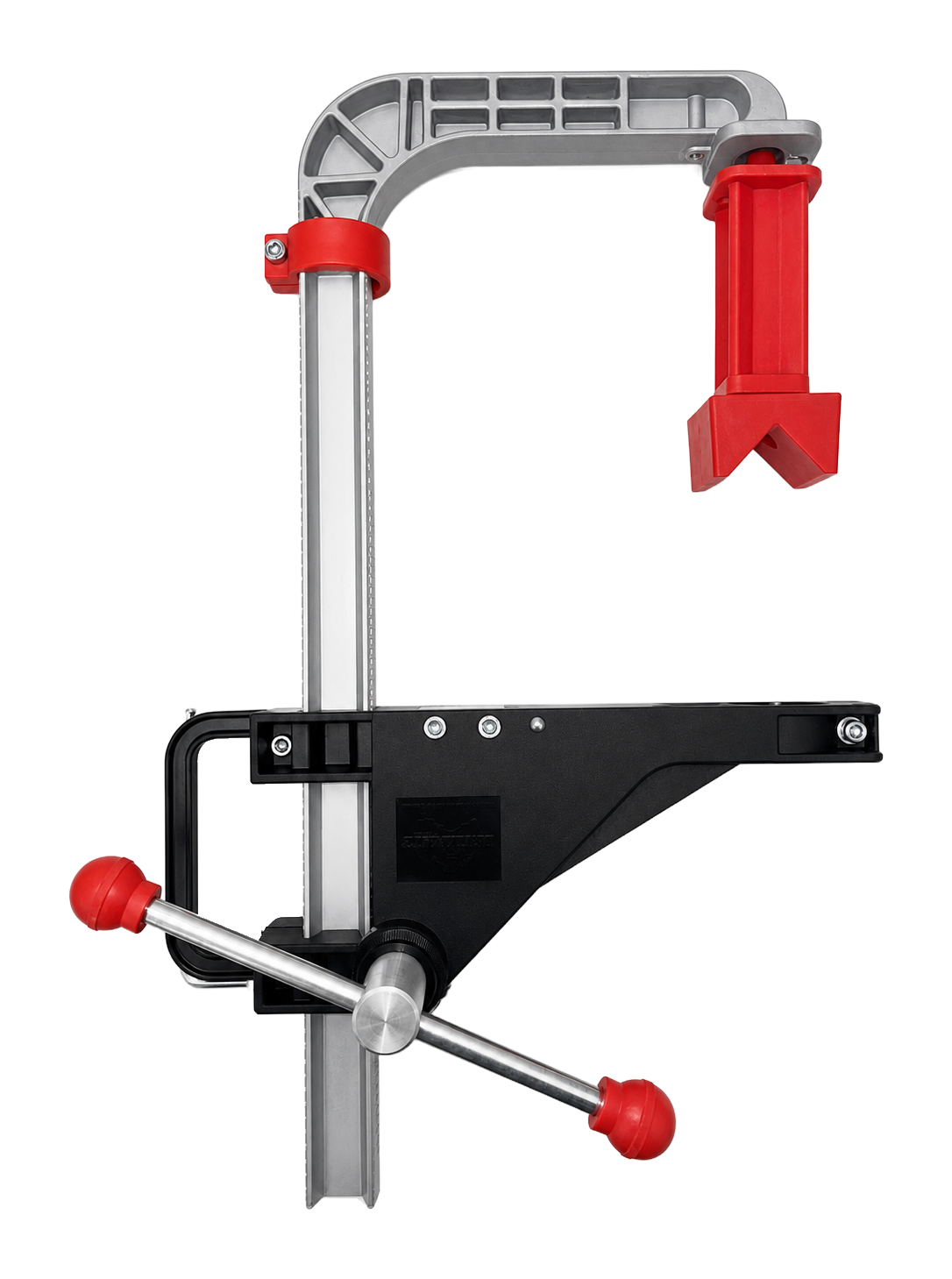

Frame Options – Frame Only

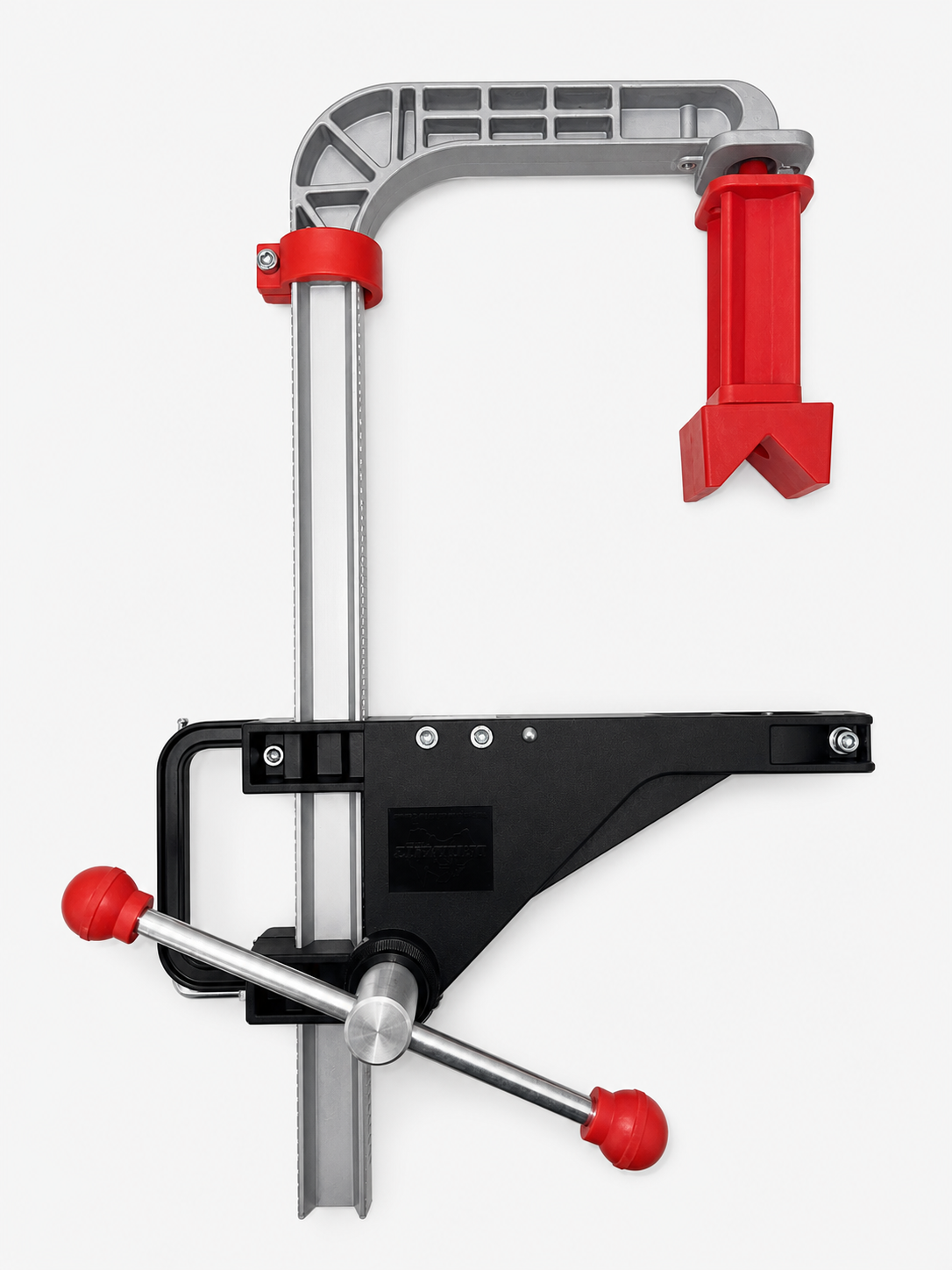

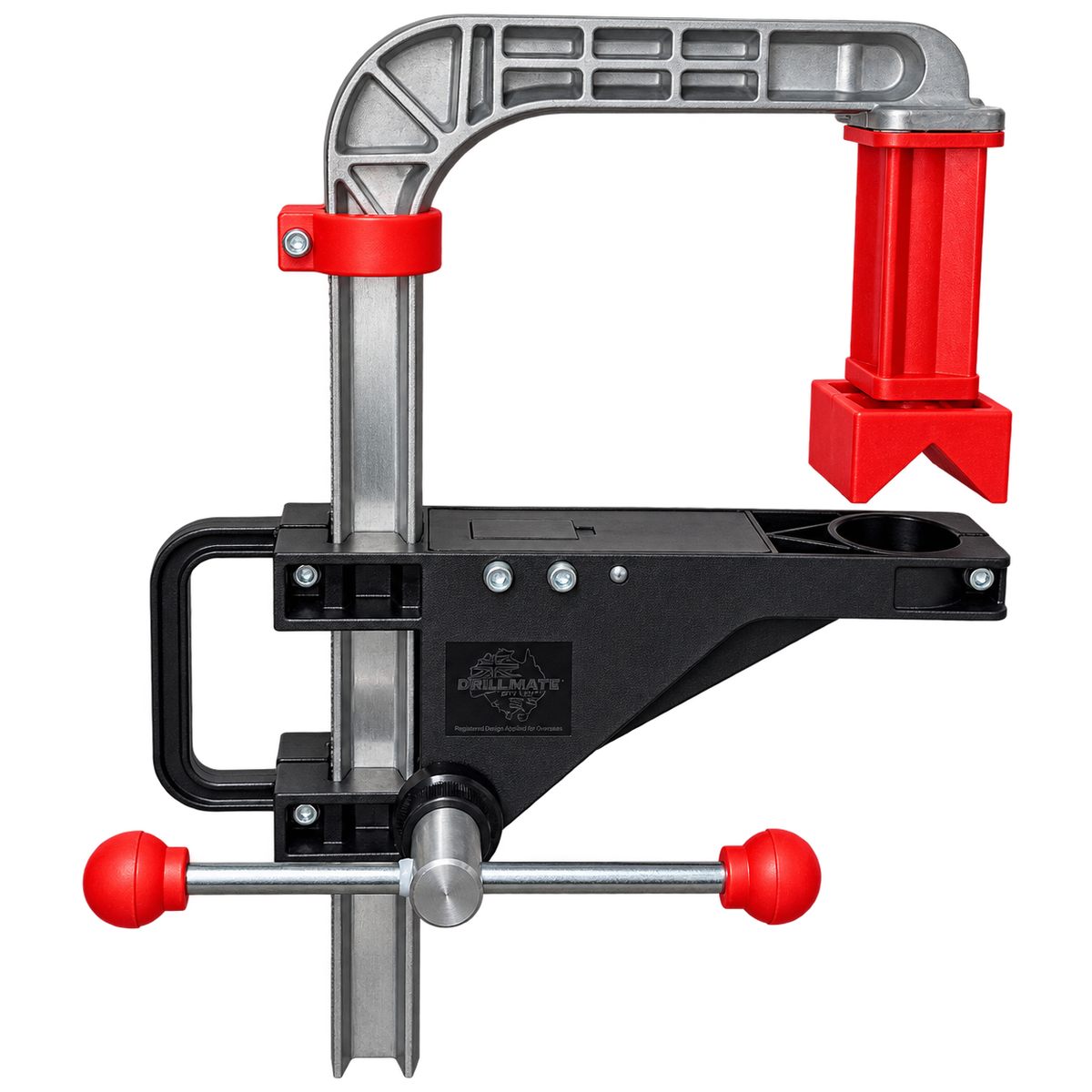

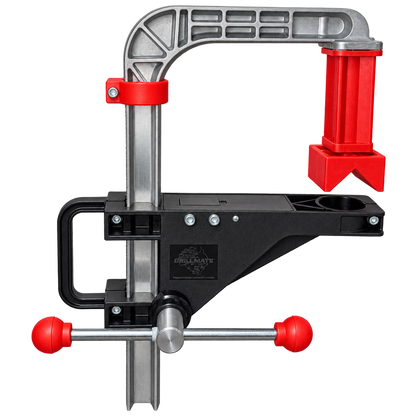

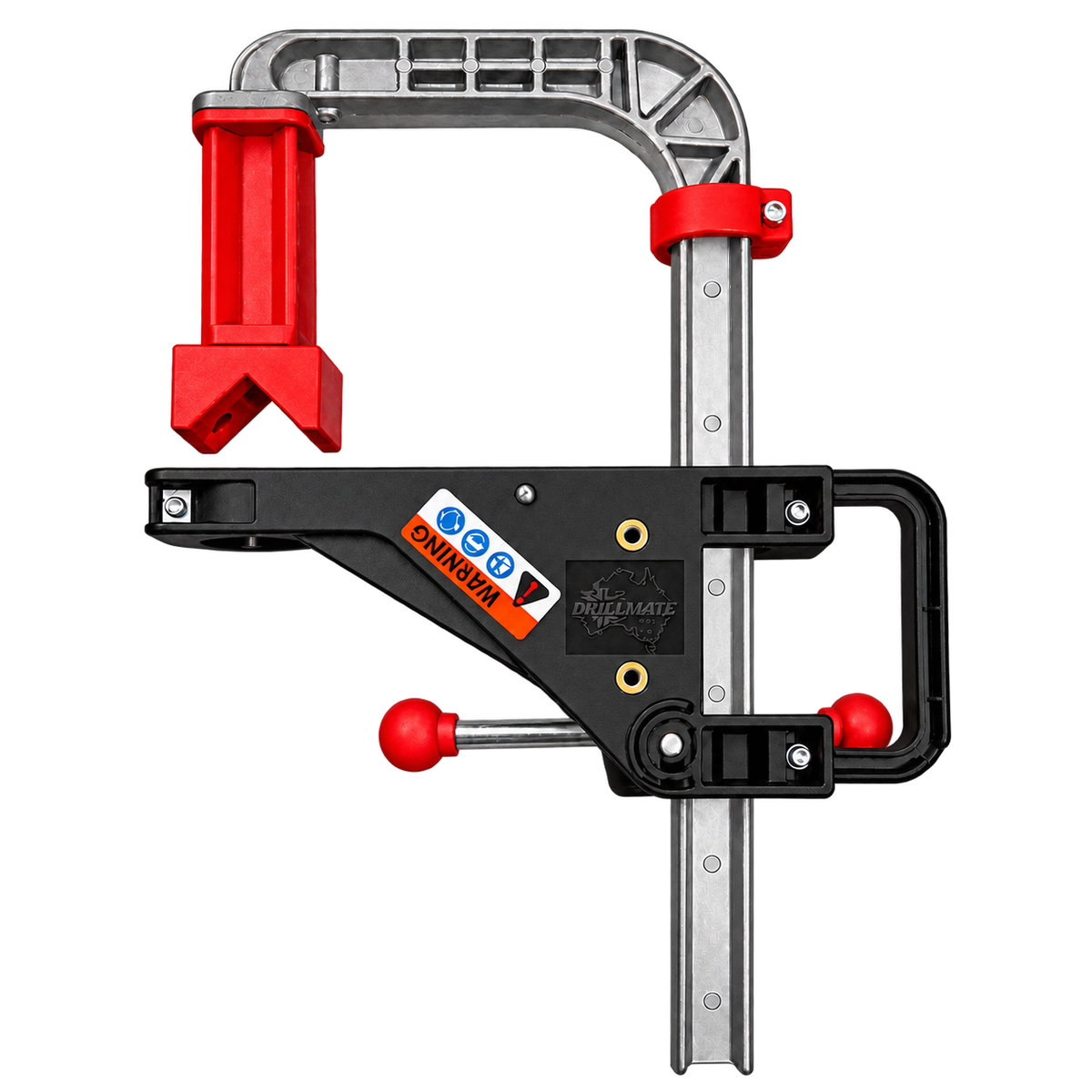

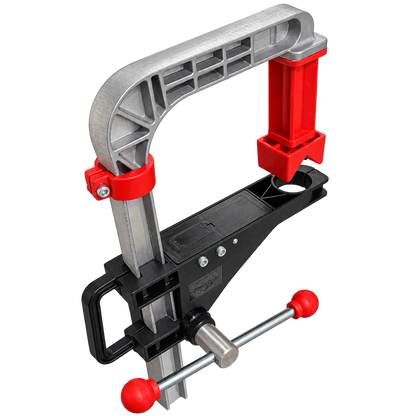

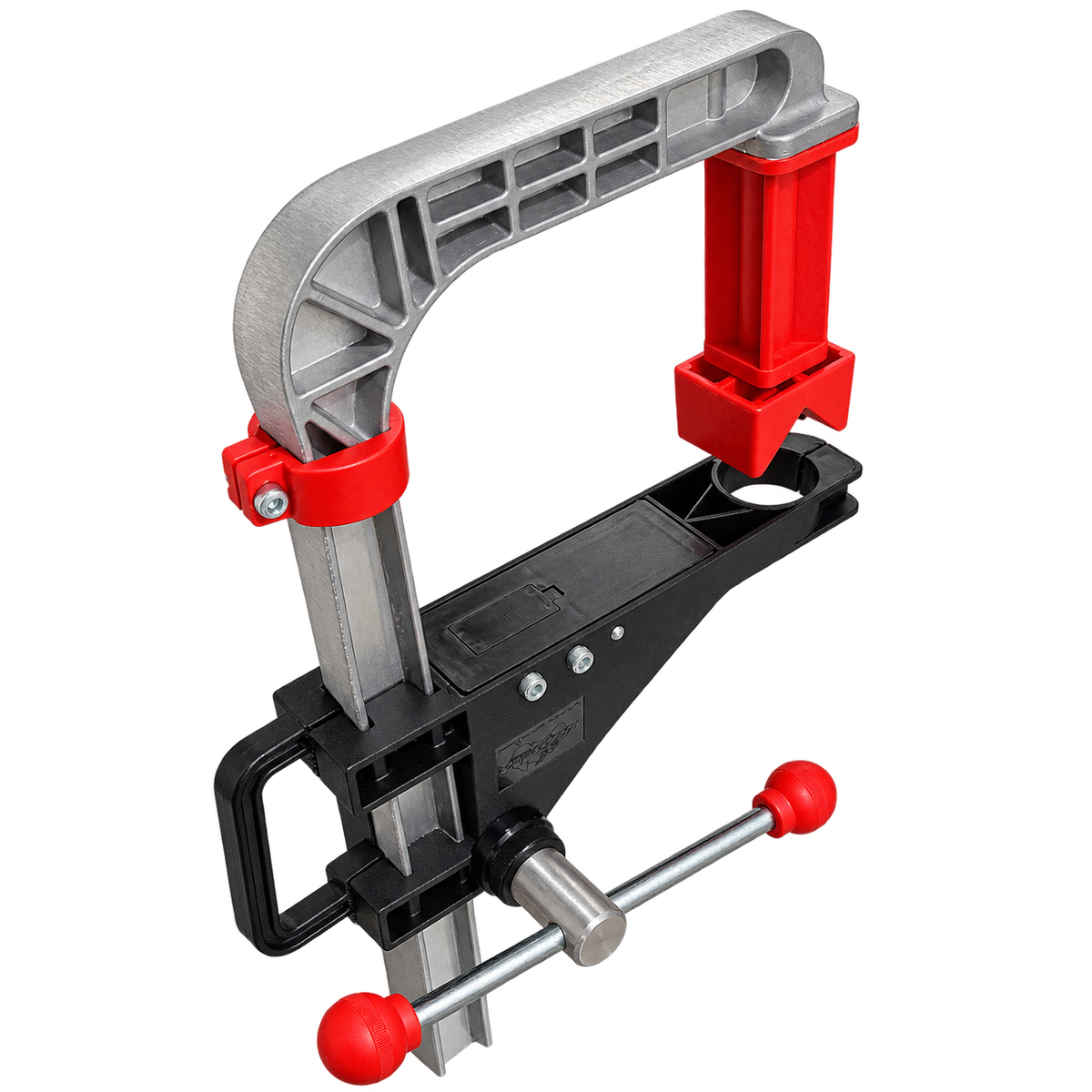

• DM100 – 43mm frame for compatible electric drills

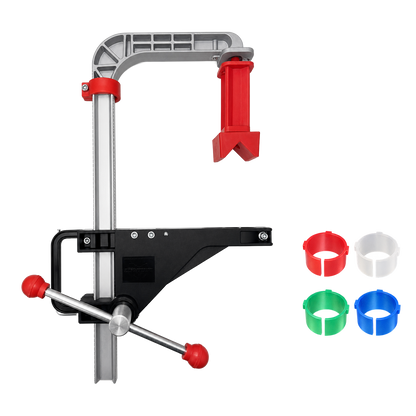

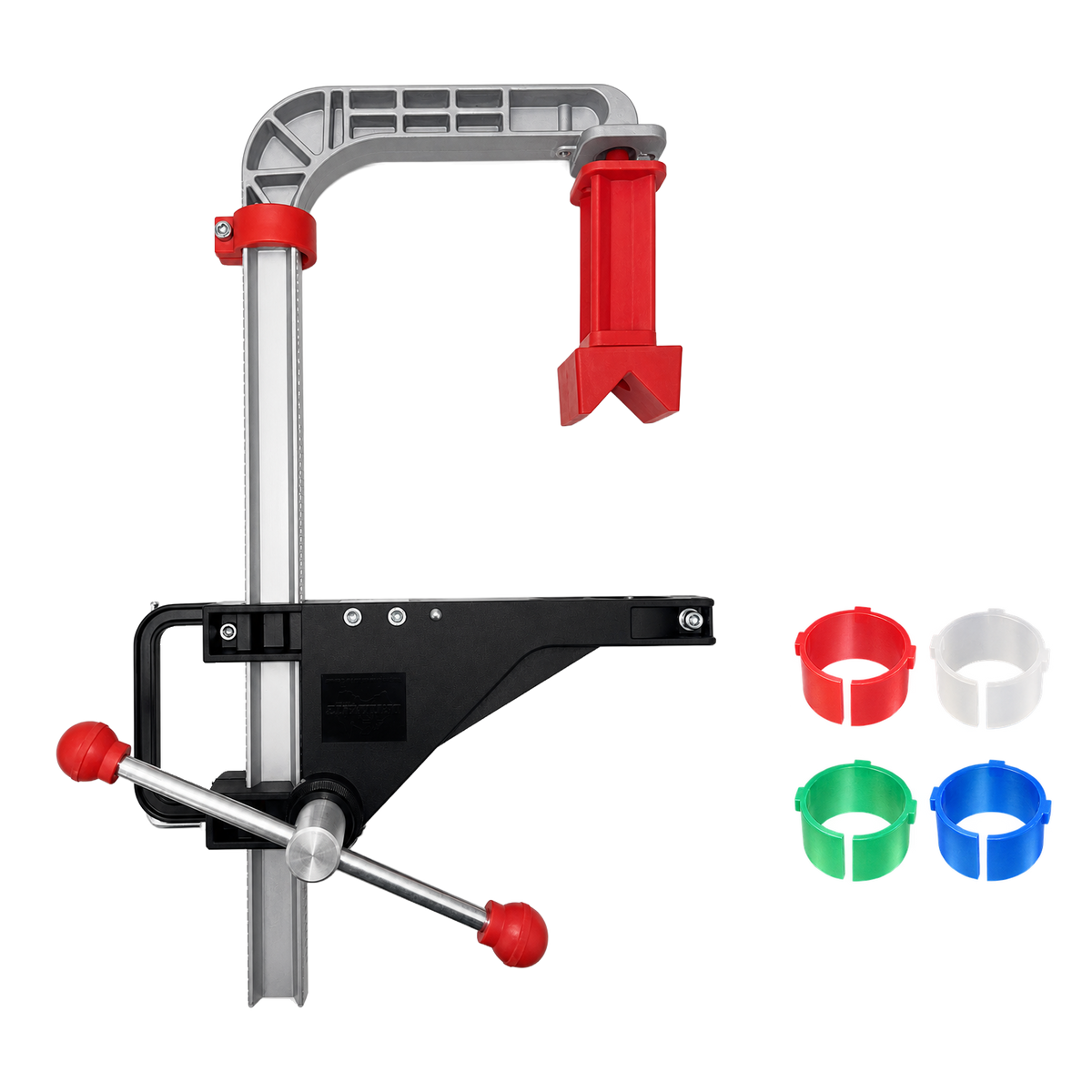

• DM100A – 46mm frame for compatible air and electric drills; includes four-colour shim kit

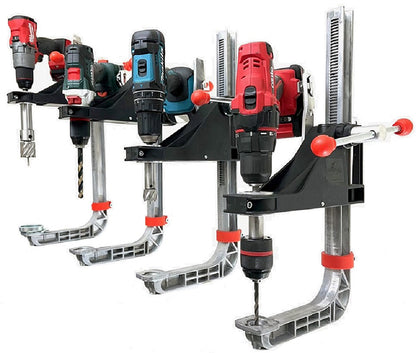

Step 3 – Choose a Mounting Kit for Your Application

A mounting kit can be used when the drill collar cannot be clamped directly or when you need a specific chuck or arbour setup for drill bits, holesaws or annular cutters. You may still select a mounting kit even if your drill has a clampable collar.

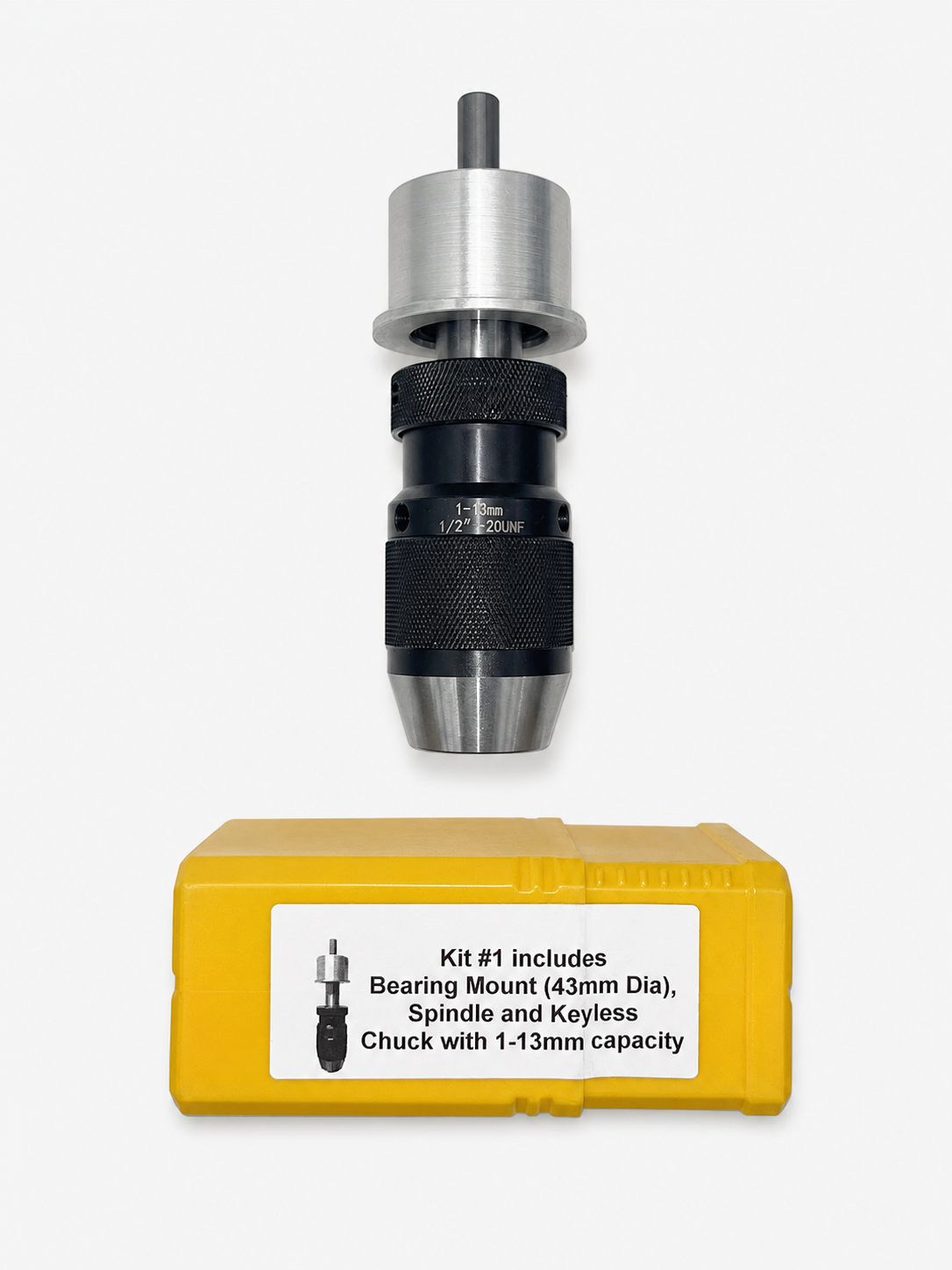

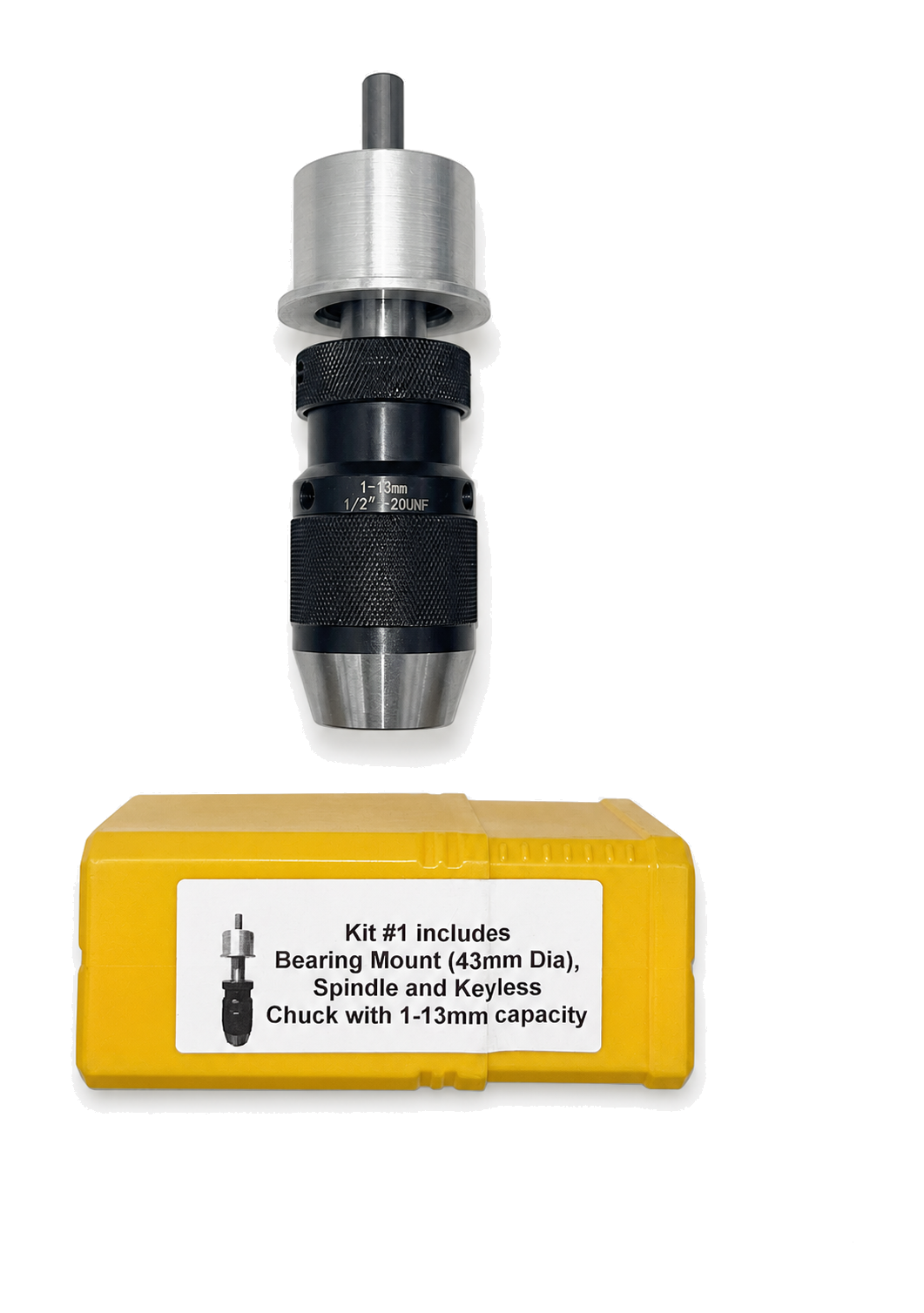

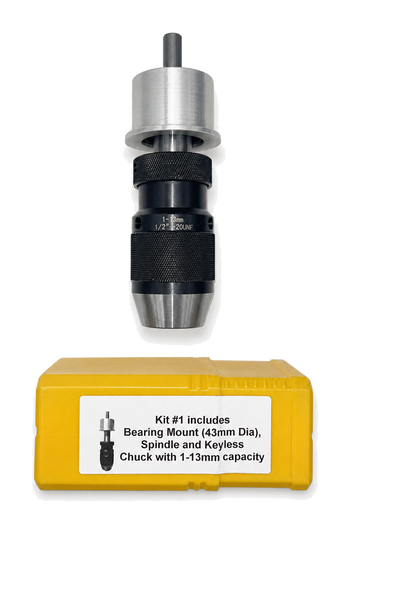

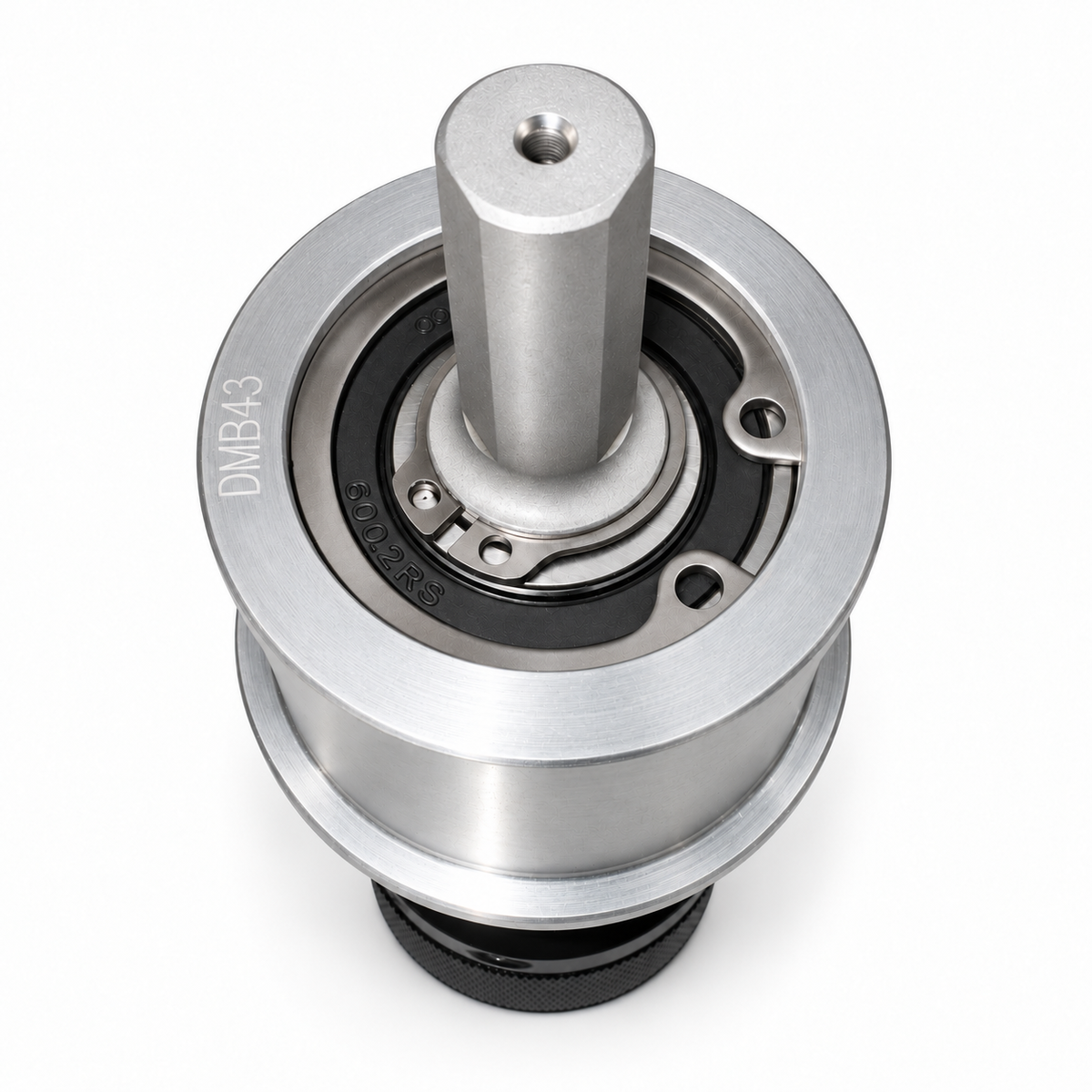

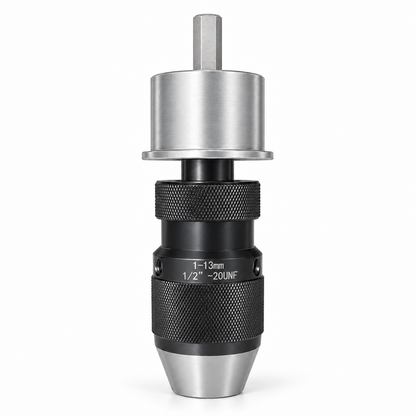

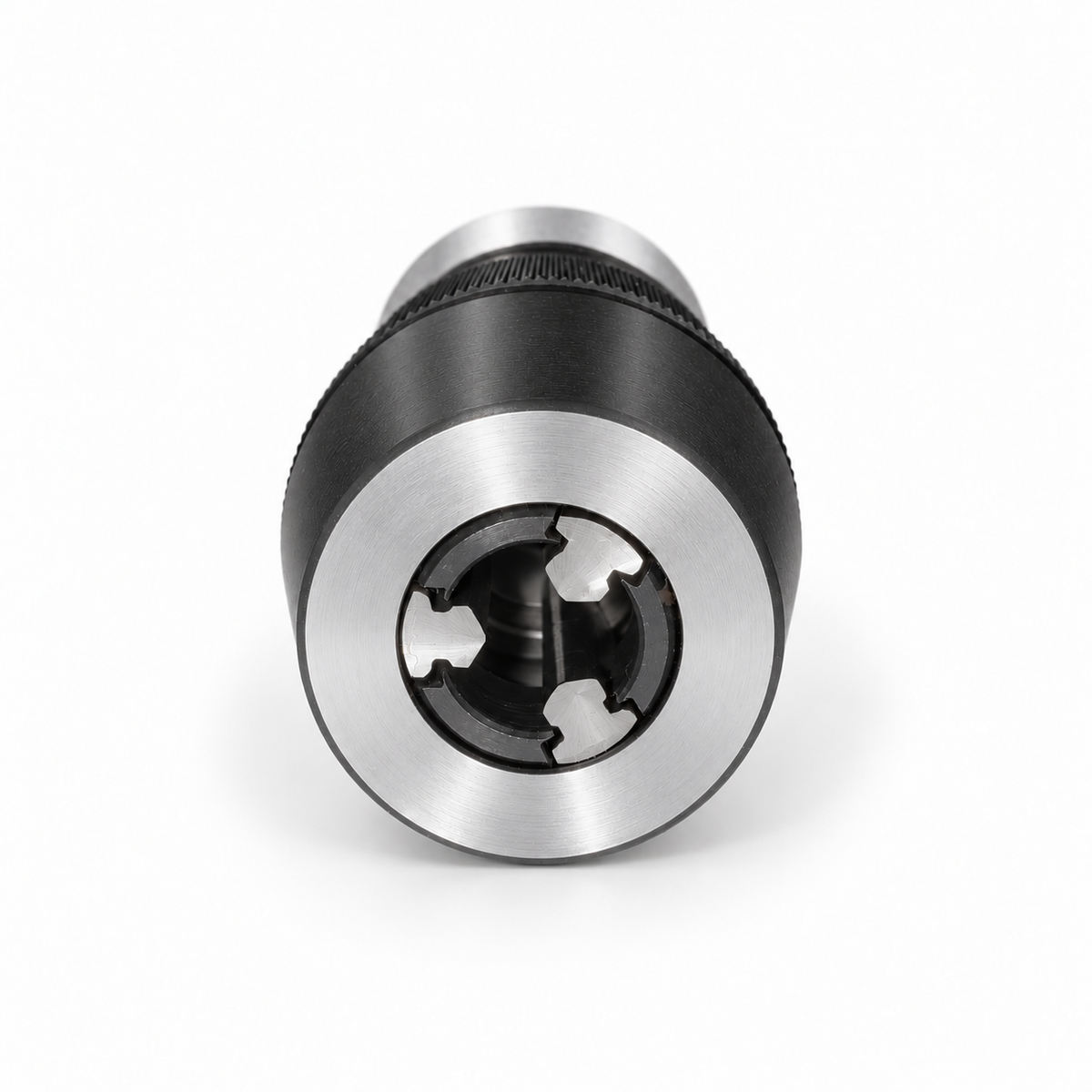

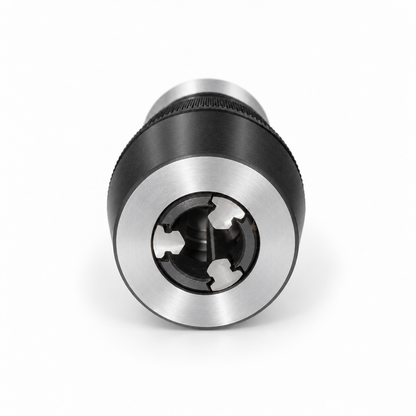

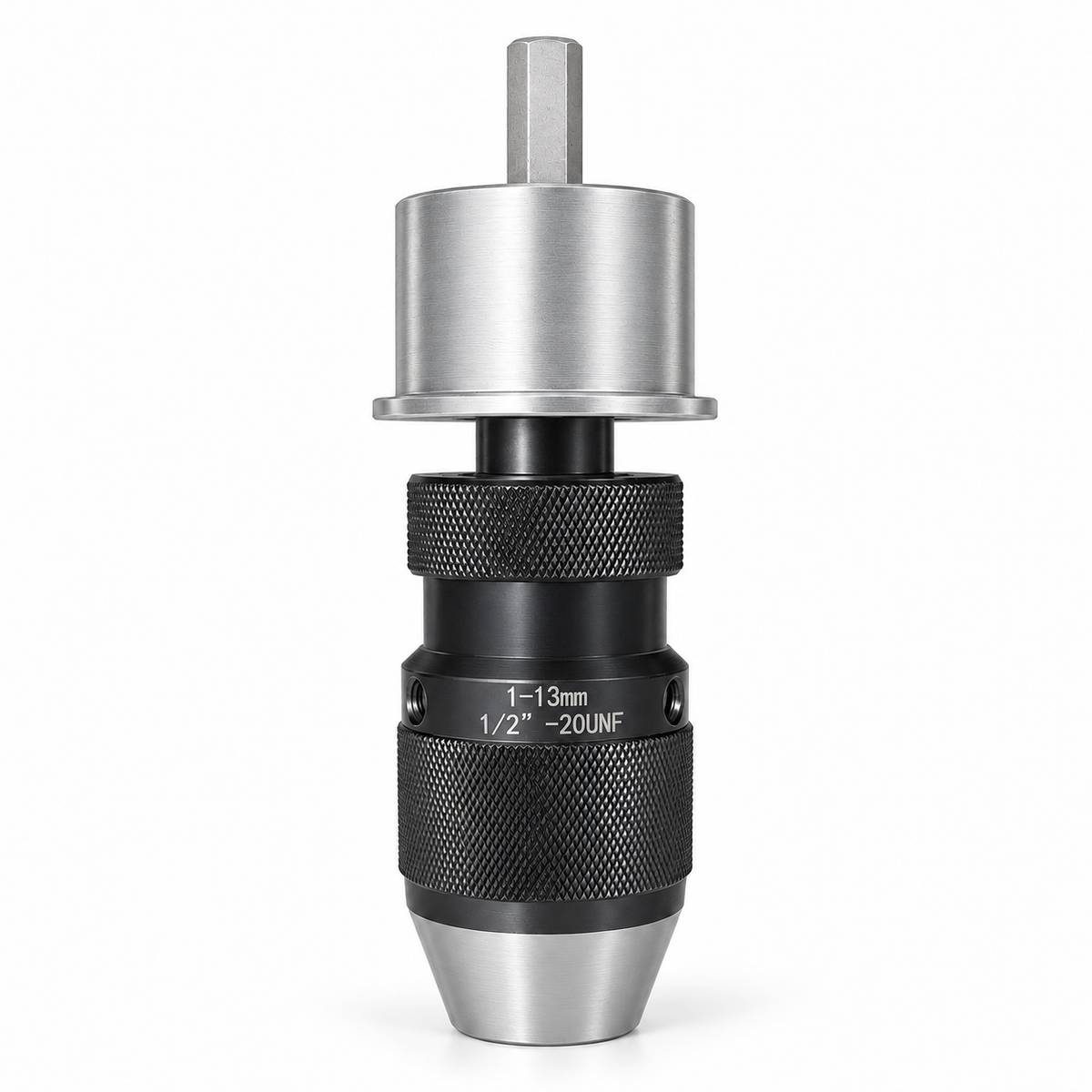

• DMKIT1 – for standard drill bits and holesaws; includes a 43mm bearing mount, spindle and 1-13mm chuck

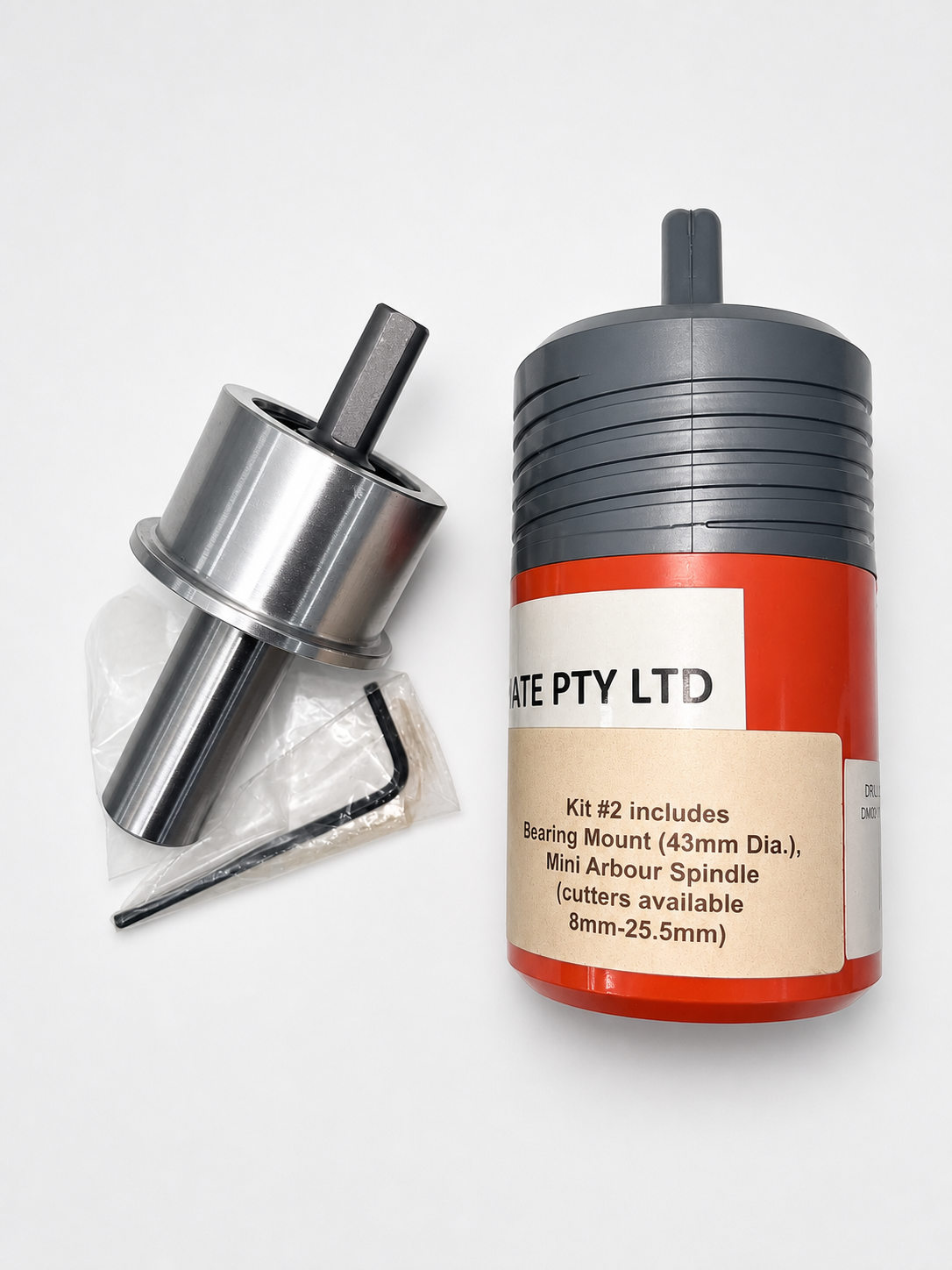

• DMKIT2 – for mini annular cutters from 8mm to 25.5mm; includes a 43mm bearing mount and mini arbour spindle

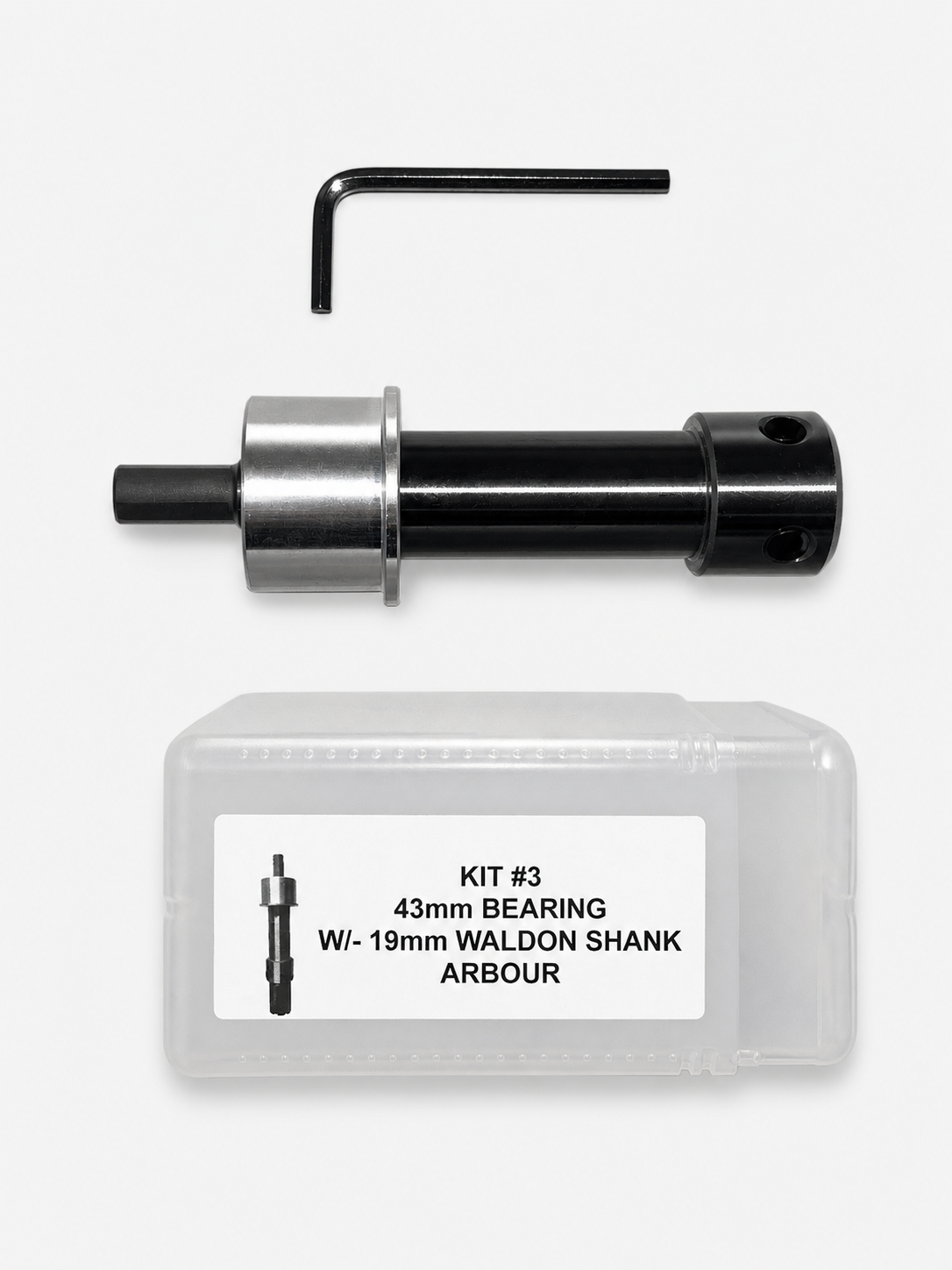

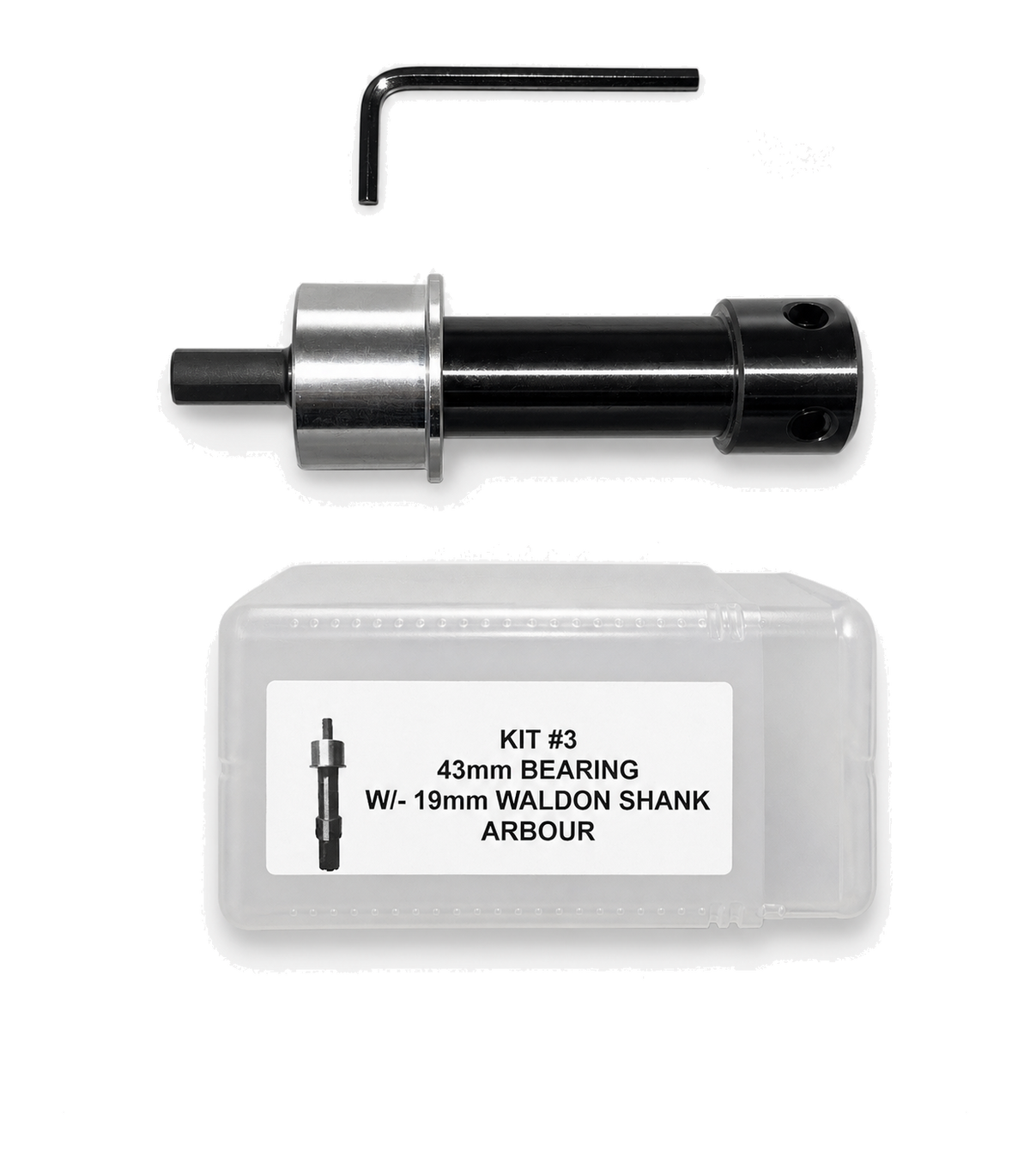

• DMKIT3 – for standard broach cutters with a 19mm Waldon shank, 25mm depth of cut and diameters up to 40mm; includes a 43mm bearing mount and arbour

Optional Mini Cutter Sets

• DMHB01 – five imperial mini cutters: 7/16in, 1/2in, 9/16in, 5/8in and 3/4in

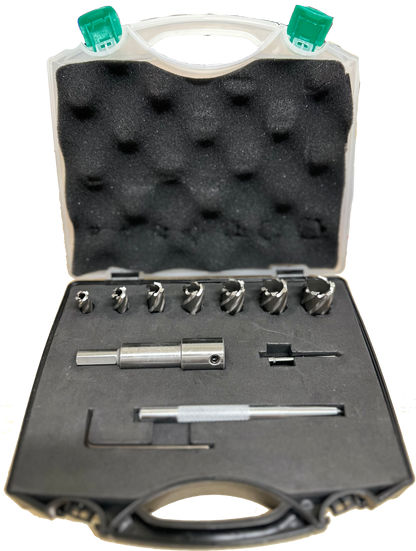

• DMHB702 – seven metric mini cutters: 8mm, 10mm, 12mm, 14mm, 16mm, 18mm and 20mm

In the Box

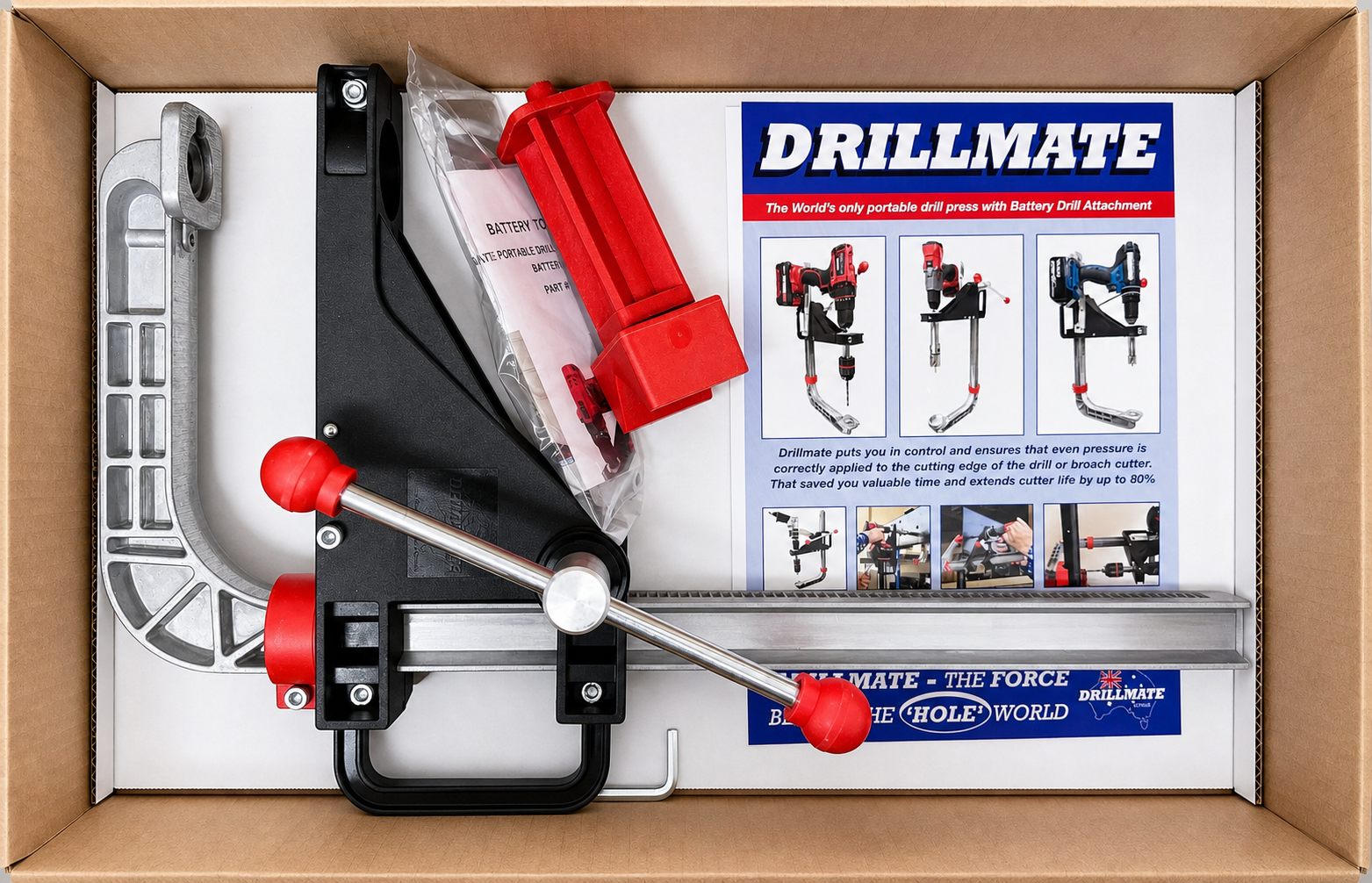

• DM100: Drillmate DM100 frame
• DM100A: Drillmate DM100A frame and four-colour shim kit

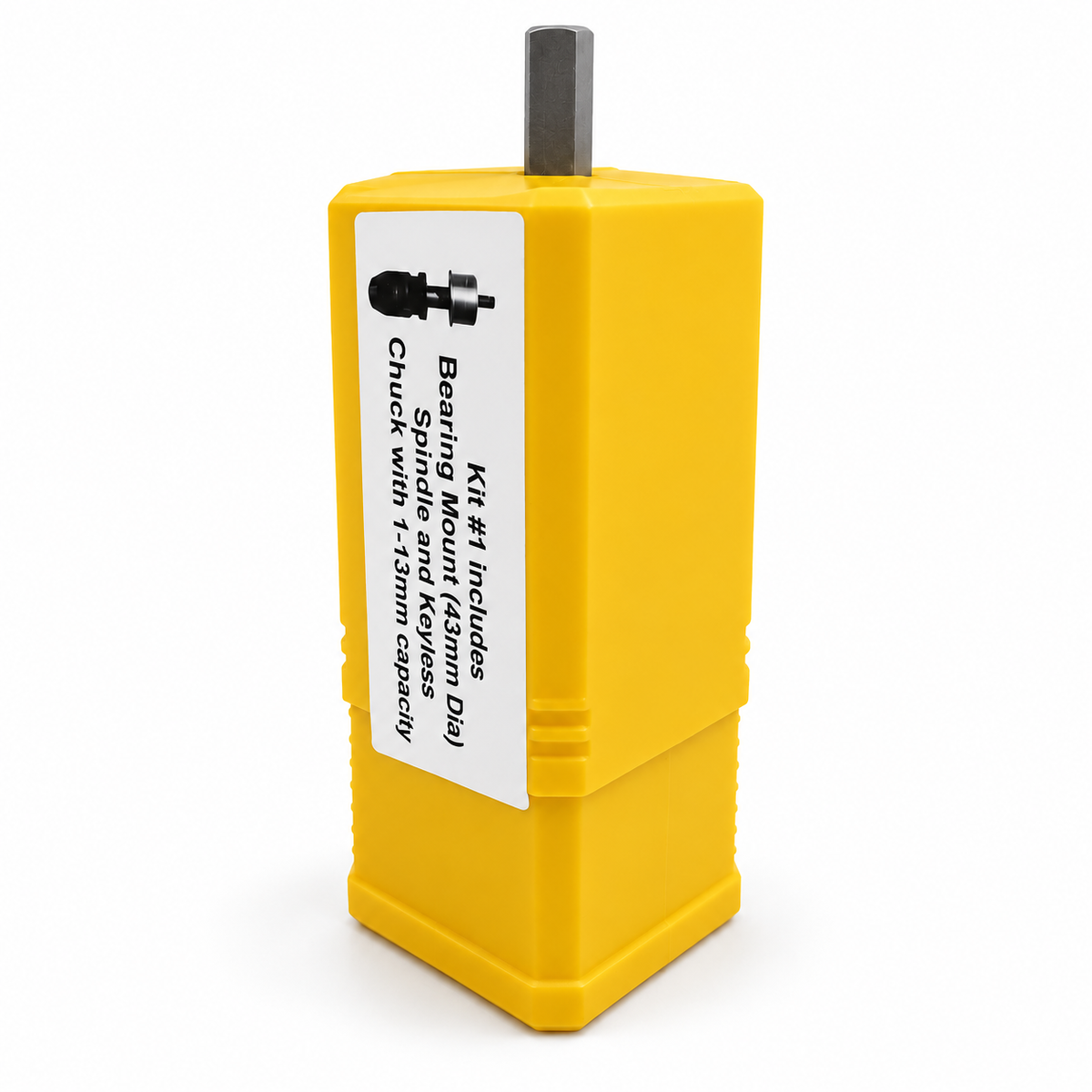

• DMKIT1: 43mm bearing mount, spindle and 1-13mm chuck
• DMKIT2: 43mm bearing mount and mini arbour spindle
• DMKIT3: 43mm bearing mount and arbour for 19mm Waldon-shank broach cutters

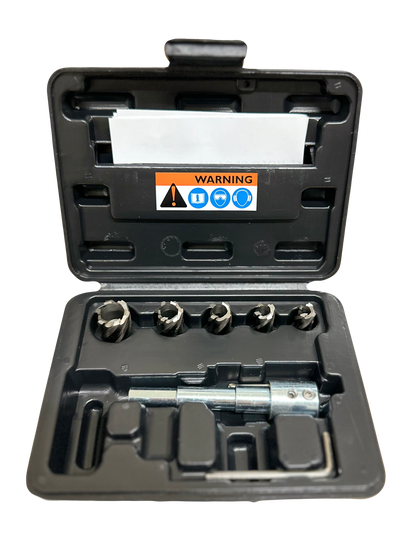

• DMHB01: Arbour pin, Allen key, case and five imperial mini cutters
• DMHB702: Arbour pin, Allen key, centre punch, case and seven metric mini cutters

Not Included: Battery, electric and air drills are not included. Frames, mounting kits and cutter sets are sold separately. Drill bits, holesaws and annular cutters are not included unless specifically listed with the selected cutter set.
