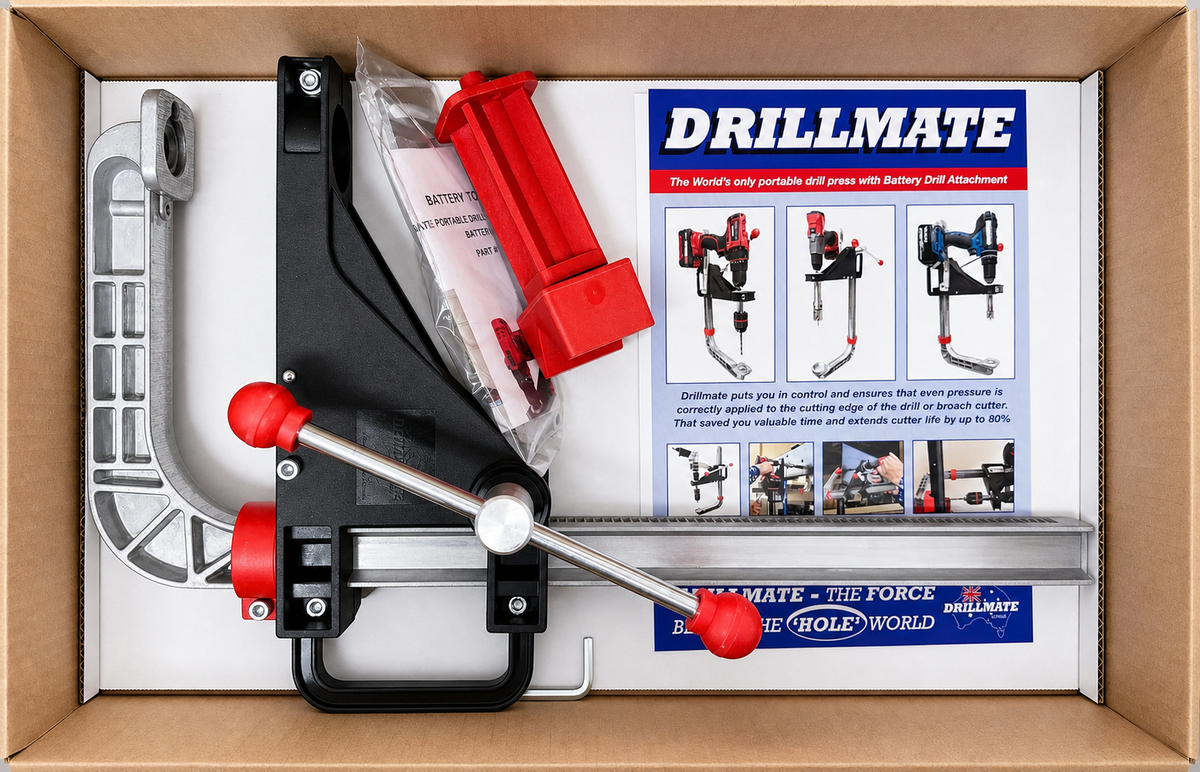

  • Drillmate portable drill press frame and instructions in its packaging
1 12 photos

Drillmate

Drillmate Portable Drill Press – DM100 & DM100A

Drillmate Portable Drill Press – DM100 & DM100A

$316.10 AUD
$350.90 AUD $316.10 AUD
Sale Sold out

GST included. Shipping calculated at checkout.

Selection

Model: DM100A

Low stock: 4 left

Pay in 4

  • Afterpay Afterpay
  • Zip Zip
  • PayPal PayPal Pay in 4

Split your purchase into interest-free instalments at checkout. Terms apply.

Delivery options

Select your suburb for a delivery estimate. Additional courier options are available at checkout.

Choose your suburb from the suggestions.

Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.

Buy with confidence

Delivery & pickupIn stock · Delivery or Smithfield pickup

In-stock orders are usually processed within 1–3 business days when ready to dispatch. Delivery time is additional and depends on your location and service.

Australia-wide delivery. Available shipping options and costs are shown at checkout.

Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store. Please allow up to 24 hours for your pickup order to be prepared.

Full delivery & pickup policy

Returns & exchanges90 days for eligible unopened items

Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.

You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.

Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.

Full returns policy & exclusions

Warranty & supportProduct-specific warranty & support

Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.

For a fault or incorrect item, contact our team with your order details and a description of the issue.

Email our support team

Need help choosing?

Call our Smithfield team for product advice and compatibility checks.

Call our team Live chat
View full details

Take a closer look

Product information

Details

DRILLMATE Portable Drill Press Frames & Accessories help apply controlled, even feed pressure when drilling with compatible electric, battery or air drills.

This listing is for the DM100 or DM100A drill press frame. Mounting kits, mini cutter sets and power drills are sold separately.

Check Your Drill Collar Before Ordering

  • The collar is the round section immediately behind the drill chuck.
  • The frame can clamp directly only to a smooth, straight, parallel collar of the correct diameter, with enough surface for a secure grip. Measure the collar before choosing a frame.
  • A slanted, tapered, obstructed or very short collar cannot be clamped directly, even if its diameter is correct. Use the appropriate Drillmate mounting kit with a compatible drill instead.

Key Features

  • 14:1 force ratio helps reduce operator effort
  • Provides controlled pressure at the drill bit or cutter
  • Suitable setups are available for drill bits, holesaws and annular cutters
  • Portable design for workshop and on-site drilling

Variants & Compatibility

Choose a Frame

  • 43mm straight, clampable collar: choose the DM100 frame.
  • 44mm, 45mm or 46mm straight, clampable collar: choose the DM100A frame. Its four-colour shim kit accommodates 43mm, 44mm, 45mm and 46mm collars.
  • Tapered or non-clampable collar: choose the DM100 frame plus the appropriate mounting kit listed below.

Frame Options – Frame Only

  • DM100 – 43mm frame for compatible electric drills
  • DM100A – 46mm frame for compatible air and electric drills; includes four-colour shim kit

Choose a Mounting Kit for Your Application

Use a suitable mounting kit when the drill collar cannot be clamped directly or when you need a specific chuck or arbour setup for drill bits, holesaws or annular cutters. You may still select a mounting kit even if your drill has a clampable collar.

  • DMKIT1 – for standard drill bits and holesaws; includes a 43mm bearing mount, spindle and 1-13mm chuck
  • DMKIT2 – for mini annular cutters from 8mm to 25.5mm; includes a 43mm bearing mount and mini arbour spindle
  • DMKIT3 – for standard broach cutters with a 19mm shank, 25mm depth of cut and diameters up to 40mm; includes a 43mm bearing mount and arbour

Optional Mini Cutter Sets

  • DMHB01 – five imperial mini cutters: 7/16in, 1/2in, 9/16in, 5/8in and 3/4in
  • DMHB702 – seven metric mini cutters: 8mm, 10mm, 12mm, 14mm, 16mm, 18mm and 20mm

In the Box

  • DM100: Drillmate DM100 frame, pipe attachment and H-beam attachment.
  • DM100A: Drillmate DM100A frame, pipe attachment, H-beam attachment and four-piece shim kit (0.5mm, 0.75mm, 1.0mm and 1.5mm).

Not Included: Battery, electric and air drills are not included. Mounting kits, drill bits, holesaws and cutter sets are sold separately.
