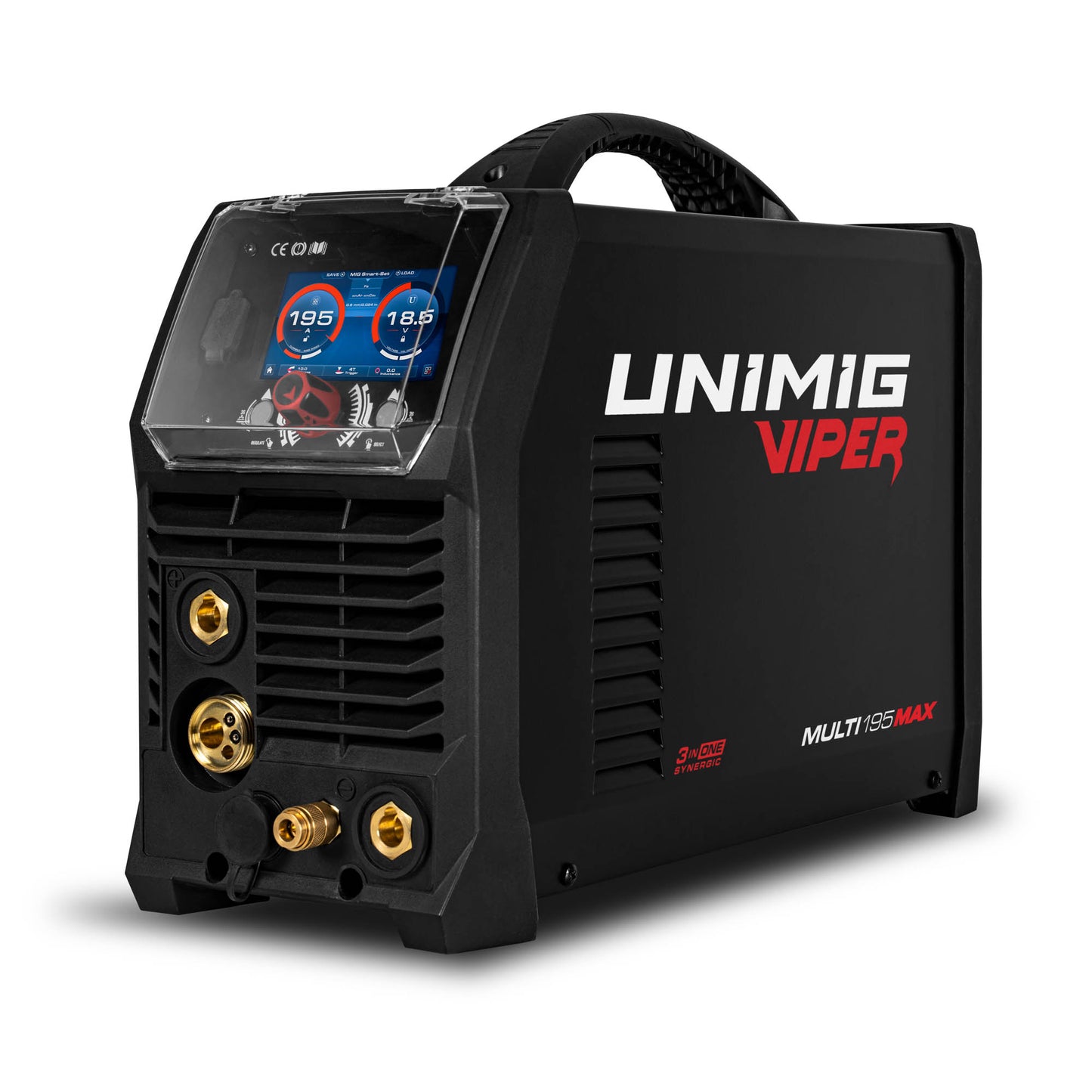

VIPER MULTI 195 MAX Welder
VIPER MULTI 195 MAX Welder
SKU:U11011
In stock
10A Plug
Plug in and play. The 10A power plug can be used on any
domestic outlet, so it’s perfect for the DIY home handyman or
the professional welder looking to take it anywhere.
Smart Fan
The Smart Fan diminishes noise, saves power, helps reduce
energy costs, and minimises the number of contaminants
being pulled through the machine.
4” Colour LCD Screen
The intuitive screen controls and next-generation user
interface make changing your settings easier than ever.
Power Factor Correction (PFC)
Get the most out of your machine. The PFC maximises
the electrical efficiency of the machine and automatically
compensates for any voltage fluctuations, so you get more
output power, and the internal components last longer.
IP21 Rating
Rated IP21, so it’s protected from touch by fingers and objects
greater than 12mm, and water spray from a vertical direction.
Dual Gas Input
Fitted with separate MIG and TIG gas inputs, allowing you to
switch processes quicker than ever before.
Job Memory
The job memory function allows you to enter and store weld
parameter settings under job numbers. Weld parameters can
be further adjusted and stored as required. A total of 20 jobs
can be memorised and stored for recall.
Foot Control Ready
This machine supports the connection of both a wired or
wireless foot control for extra versatility and convenience
while welding. You can adjust your amperage hands-free to
avoid disrupting your torch movement, and the wireless option
reduces cables and adds greater manoeuvrability.

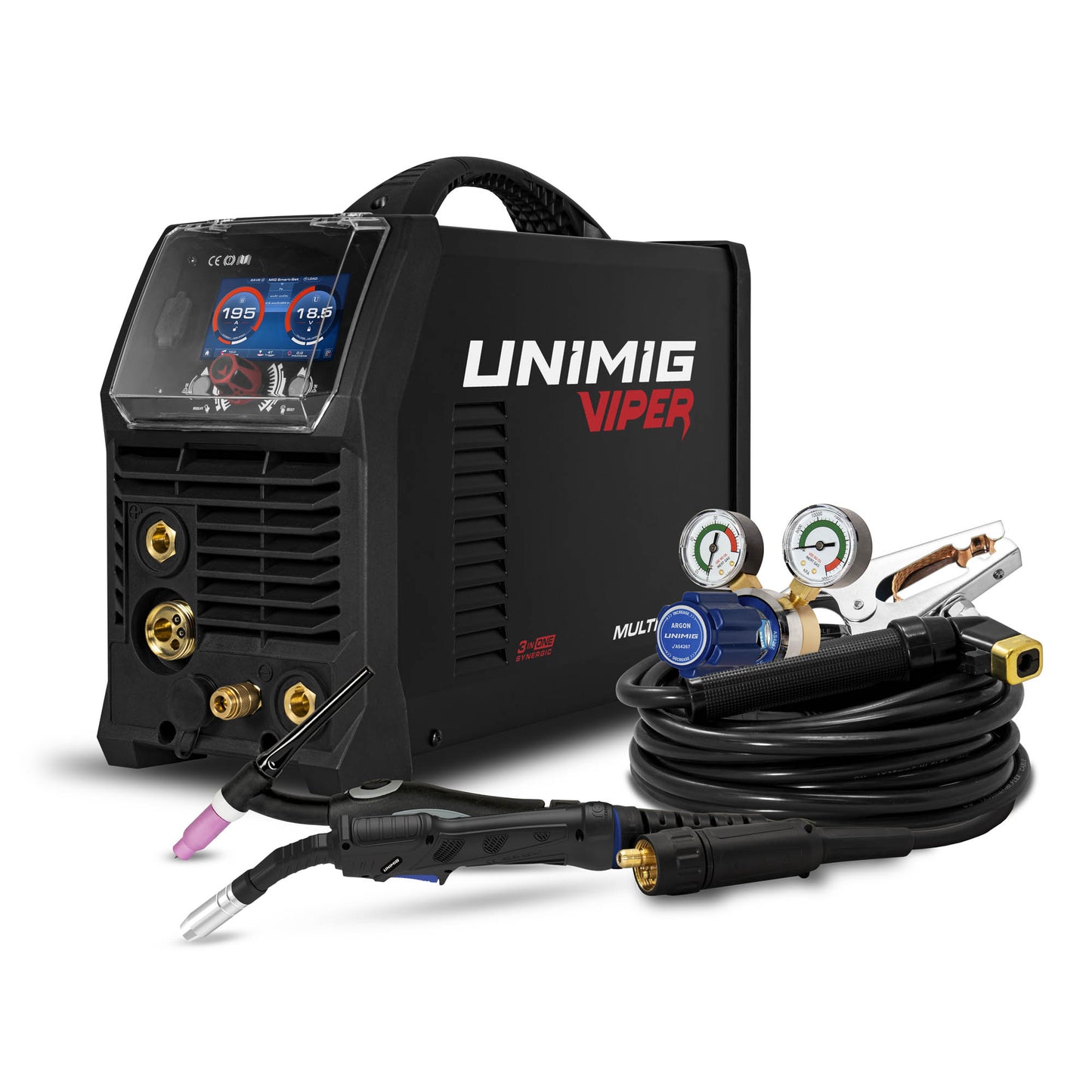

Package Contents (Machine Only):
- VIPER MULTI 195 MAX Welder
- 4m M15 MIG Torch
- 4m SR17 Flex-Head TIG Torch
- 4m Twist Lock Electrode Holder
- 4m 300 Amp Earth Clamp & Lead
- Twin Gauge Argon Regulator
- 2m Gas Hose Complete with fittings
- Operating Manual
- 0.8-0.9mm V Groove Roller
- 0.8-0.9mm F Groove Roller
- 1.0-1.2mm U Groove Roller
MACHINE SPECIFICATIONS |
Primary Input Voltage | 240V Single Phase |
Supply Plug | 10 Amp |
Ieff (A) | 8.9 |
Rated Output | 25A/15V - 195A/23.8V |
No Load Voltage (V) | 67 |
Protection Class | IP21 |
Insulation Class | H |
Minimum Generator (kVA) | 8.5 |
Dinse Connector | 35/50 |
Standard | AS/NZ60974-1 |
Suitable Material | Mild Steel (MIG, TIG, MMA), Stainless Steel (MIG, TIG, MMA), Cast Iron (MMA), Silicon Bronze (MIG, TIG), Aluminium (MIG), Copper (TIG) |
Warranty | 3 years |
MIG SPECIFICATIONS
|
MIG Welding Current Range | 25-195A |
MIG Duty Cycle @ 40c |
15% @ 195A / 60% @ 98A / 100% @ 76A |
MIG Welding Thickness Range | 1-8mm |
TIG SPECIFICATIONS
|
TIG Function Type |
DC High Frequency |
TIG Welding Current Range |
5-195A |
TIG Duty Cycle @ 40c |
30% @ 195A / 60% @ 138A / 100% @ 107A |
TIG Welding Thickness Range |
1-8mm |
STICK SPECIFICATIONS
|
STICK Welding Current Range | 5-195A |
STICK Duty Cycle @ 40c | 15% @ 195A/ 60% @ 98A / 100% @ 76A |
STICK Welding Thickness Range | 2-10mm |
SIZE AND WEIGHT
|
DIMENSIONS (mm) | 470X190X350 |
Weight (kg) | 11.8 |
